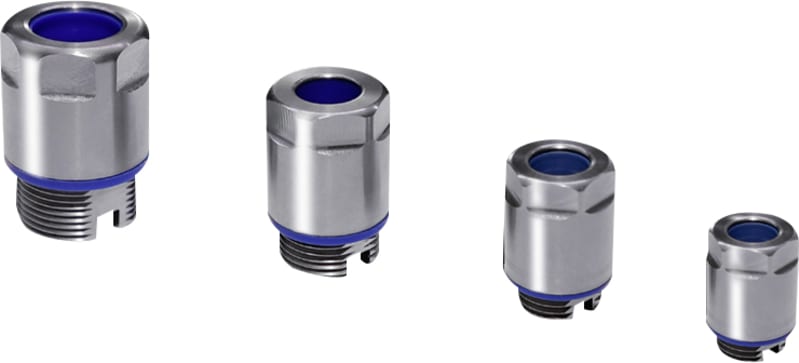

Cablenipler HD M25X1,5
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2410031 Manufacturer description: HD Cable gland, stainless steel 1.4305, size: M25x1,5, for cables Ø; 12-17 mm, Standard version. Cable gland, stainless steel 1.4305, size: M25x1,5, for cables Ø 12-17 mm Standard version.
Technical Specifications
- Manufacturer part number (MPN)
- 2410031
- EAN / GTIN
- 4028177928695
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Model designation
- HD 2410.031
- Product type
- Cable gland HD
- Version
- Standard
- Applications
- Production and packaging of food and beverages; Clean room technology (e.g. pharmaceuticals); Biotechnology; Chemical industry
- Material
- Nut: Stainless steel 1.4305 (AISI 303); Seal: EPDM, compliant with FDA 21 CFR 177.2600
- Supply includes
- Incl. lock nut
- Dimensions
- Thread: M25 x 1.5
- For cable diameters
- 12 ‐ 17 mm
- Operating temperature range
- -20 °C...100 °C; -4 °F...212 °F
- Protection category IP to IEC 60 529
- IP69 / IPX8 (5 bar, 30 min)
- Type rating according to UL 50E
- Type 1; Type 2; Type 4; Type 4X; Type 12; Type 12K; Type 13
- Packaging unit
- 5 pc(s).
- Net weight
- 0.545 kg
- Gross weight
- 0.548 kg
- Customs tariff number
- 73072980
- ETIM 9
- EC000441
- ETIM 8
- EC000441
- ECLASS 8.0
- 27149109
- Approvals
- UL + C-UL (listed); VDE
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177928695
- SAP 1200596631
- Code 82973145
Product Documentation
More from Rittal
Rittal

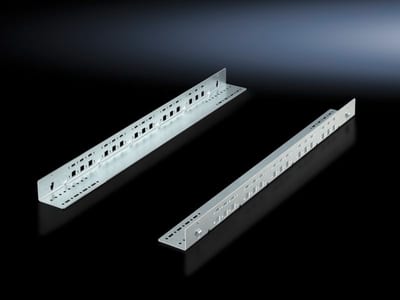

Gliderail,1HE,fast mounting for VXIT
5501430
Rittal

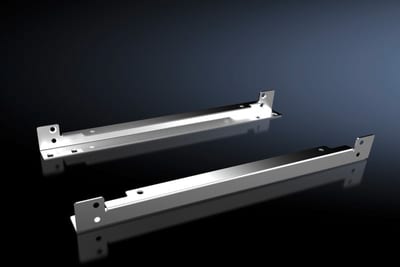

Gliderail f mpl VX 800 2 pcs
8617401
Rittal

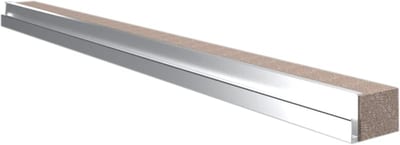

Rittal 8618803 VX Cable Entry Section 1200 mm Centre
Rittal

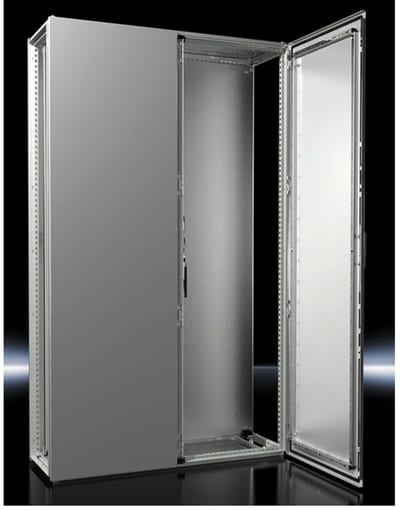

Floor-standing cabinet VX 1200X2000X400
8204000
Rittal

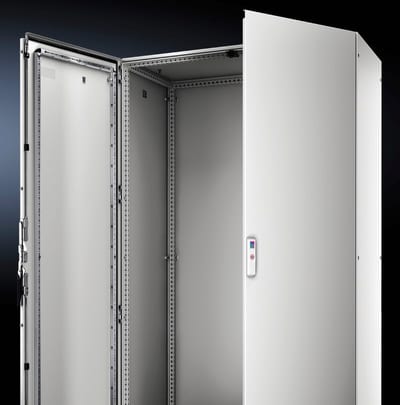

Floor-standing cabinet VX 1000X1800X400 (8080000)
Rittal

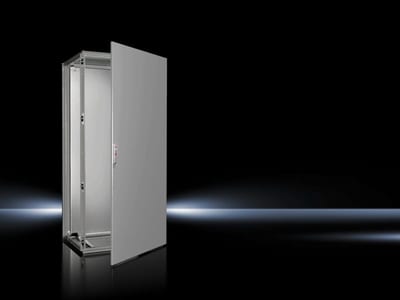

Floor-standing cabinet VX 800X1800X600
