Gliderail,1HE,fast mounting for VXIT
Pricing
Request a quote
We reply within 24 hours
Product Description

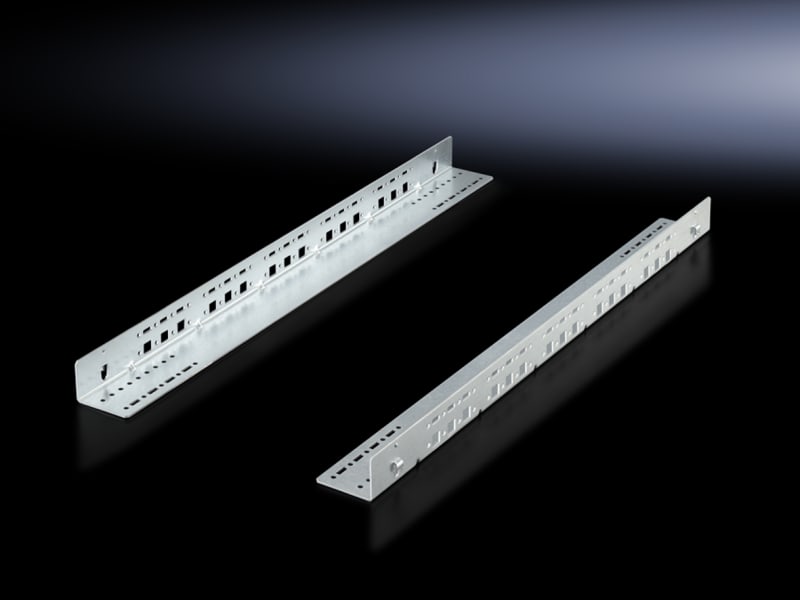

Rittal 5501430 Manufacturer description: DK Slide rail, 1 U, D: 475 mm, 80 kg, static, For two 482.6 mm (19") attachment level (front+rear), distance between levels:: 545 mm, static installation, for 482.6 mm (19") system punchings. 2 pcs glideskinne, 80 kg, 545 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5501430
- EAN / GTIN
- 4028177678989
- Sales unit
- pack
- Package quantity
- 2 pack
- Model designation
- DK 5501.430
- Product type
- Slide rail, 1U, fixed installation
- Applications
- For assembly on the front mounting level; To support heavy installed equipment.
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Distance between mounting levels
- 545 mm
- Length
- 475 mm
- Installation options
- for 19" standard profile rails
- Mounting tip
- The 19” space between levels in the VX IT must be adjusted accordingly prior to installation
- Load capacity
- 800 N, static
- Contact surface
- Width: 35 mm
- Packaging unit
- 2 pc(s).
- Net weight
- 1 kg
- Gross weight
- 1.4 kg
- PCF/VE (cradle-to-gate)
- 4.9 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Model
- Sliding rail
- Width
- 30 mm
- Depth
- 545 mm
- Max. load capacity
- 80 kg
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177678989
- SAP 1000325084
- Code 8725037
Product Documentation
