Rittal
VX IT-Mountingsvinkler std front 38HE
Part number5302104EAN / GTIN4028177955424HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

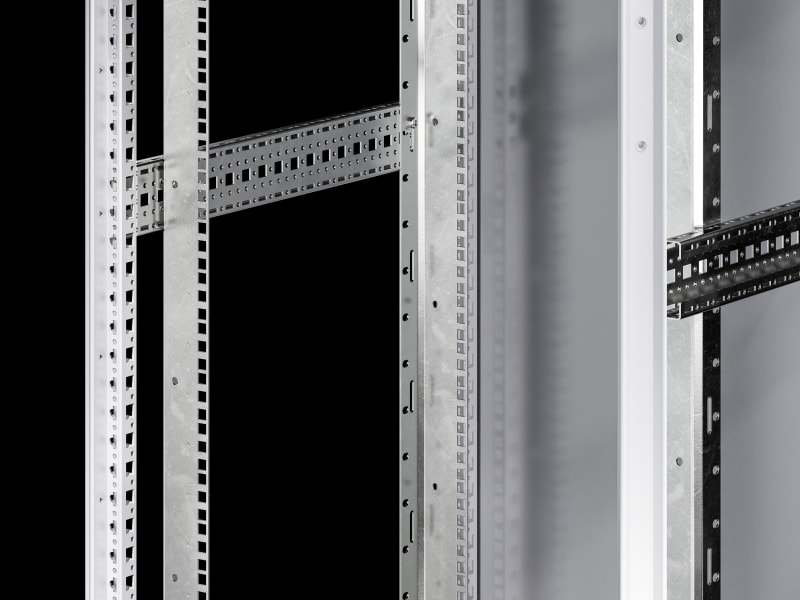

Rittal 5302104 Standard 19 "profile rails, mounting position: front, 38 U.
Technical Specifications
- Manufacturer part number (MPN)
- 5302104
- EAN / GTIN
- 4028177955424
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- VX 5302.104
- Design
- for VX IT 482.6 mm (19") mounting angles, standard
- Technical specifications
- Side punchings, round and square, on a U pitch pattern; Potential equalisation within the mounting level and with the locating frame is achieved via the assembly components; 482.6 mm (19") mounting hole including U centre fixing attachment to standard EIA 310 E
- Applications
- For mounting a 482.6 mm (19") mounting level within the VX IT rack system
- Material
- Sheet steel, 2 mm
- Surface finish
- Primed
- Colour
- RAL 9005
- Supply includes
- Assembly parts
- Mounting position
- front
- Installation options
- Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
- Assembly instruction
- To be combined with cross-member, depth stays or mounting bracket for attachment; Use of the different mounting options depends on the relevant enclosure dimensions
- To fit
- Height: = 38 U; = 1,800 mm
- Net weight
- 6.5 kg
- Gross weight
- 7.3 kg
- PCF per pack (cradle-to-gate)
- 27.8 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 1800 mm
- Height
- 1800 mm
- RAL-number
- 9005
- Country of origin
- Germany
