Rittal
VX IT-Mountingsvinkler std rear 24HE
Part number5302103EAN / GTIN4028177955417HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

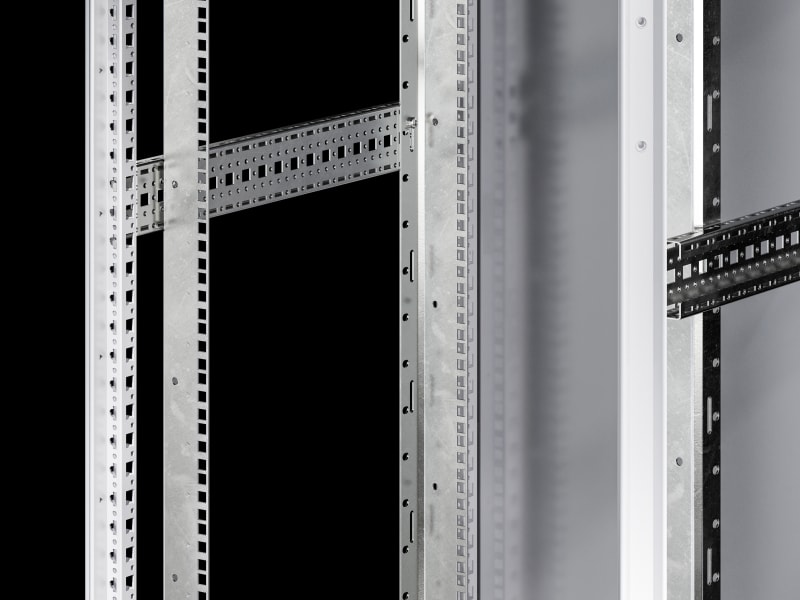

Rittal 5302103 Standard 19 "profile rails, monteringsstilling: rear, 24 U.
Technical Specifications
- Manufacturer part number (MPN)
- 5302103
- EAN / GTIN
- 4028177955417
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- VX 5302.103
- Design
- for VX IT 482.6 mm (19") mounting angles, standard
- Technical specifications
- Side punchings, round and square, on a U pitch pattern; Potential equalisation within the mounting level and with the locating frame is achieved via the assembly components; 482.6 mm (19") mounting hole including U centre fixing attachment to standard EIA 310 E
- Applications
- For mounting a 482.6 mm (19") mounting level within the VX IT rack system
- Material
- Sheet steel, 2 mm
- Surface finish
- Primed
- Colour
- RAL 9005
- Supply includes
- Assembly parts
- Mounting position
- rear
- Installation options
- Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
- Assembly instruction
- To be combined with cross-member, depth stays or mounting bracket for attachment; Use of the different mounting options depends on the relevant enclosure dimensions
- To fit
- Height: = 24 U; = 1,200 mm
- Net weight
- 5 kg
- Gross weight
- 5.24 kg
- PCF per pack (cradle-to-gate)
- 19.9 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 1200 mm
- Height
- 1200 mm
- RAL-number
- 9005
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177955417
- SAP 1200493087
- Code 82691184
Product Documentation
Document preview: Rittal 5302103 — Data Sheet (OEM)
More from Rittal
Rittal
Rittal DK 7979.001 PDU Accessory Pack for VX IT, Mounting Brackets, Connector Lock and Connectors
7979001
Rittal
VX IT-Mountingsvinkler std front 24HE
5302102
Rittal
Swing frame VX, small, 6HE 600
8619510
Rittal
SZ Adapterrail f VX-kompabilitet 2000
8617751
Rittal
Base plates VX side 100X300
8640030
Rittal
VX IT-Mountingsvinkler std front 38HE
5302104
Rittal
Partial Mounting Plate VX 800X500
8617570
Rittal
VX IT-Mountingsvinkler std rear 38HE
5302105
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
