Rittal

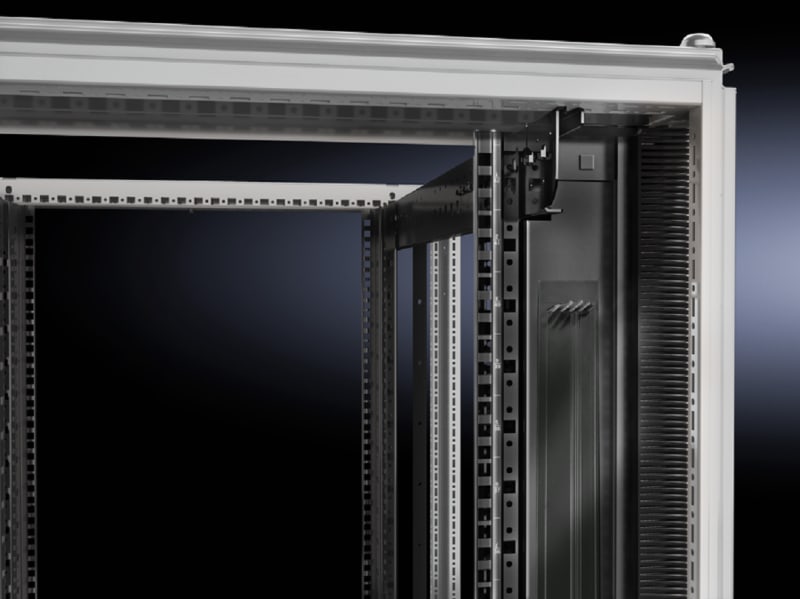

VX IT Air control plate 800X2200 std
Part number5302015EAN / GTIN4028177955301HS code7326.90
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5302015 VX IT luftbaffel, BxH: 800x2200 mm, for 19 "standard.
Technical Specifications
- Manufacturer part number (MPN)
- 5302015
- EAN / GTIN
- 4028177955301
- Sales unit
- pcs
- Model designation
- DK 5302.015
- Product type
- Air Baffle Plate
- Applications
- To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
- Material
- Carbon steel; Blanking panel: Plastic, UL 94-HB, halogen-free; Brush strip: Plastic, UL 94-HB
- Surface finish
- Spray-finished
- Color
- RAL 9005
- Supply includes
- 2 vertical trim panels; 2 horizontal trim panels; 4 brush strips; 4 cellular PU foam pieces; Assembly components; 6 blind panels, 482.6 mm (19″), 1 U
- Packaging unit
- 1 pc(s).
- Net weight
- 8.7 kg
- Gross weight
- 9.2 kg
- PCF/VE (cradle-to-gate)
- 35.1 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 56090000
- ETIM 9
- EC000331
- ECLASS 8.0
- 27189272
- Mounting method
- Snap mounting
- Width
- 800 mm
- Height
- 2200 mm
- Suitable for enclosure building width
- 800 mm
- With built-in filter
- No
- Surface finishing
- Lacquered
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177955301
- SAP 1200477500
- Code 82550612
Product Documentation
Document preview: Rittal 5302015 — Data Sheet (OEM)
