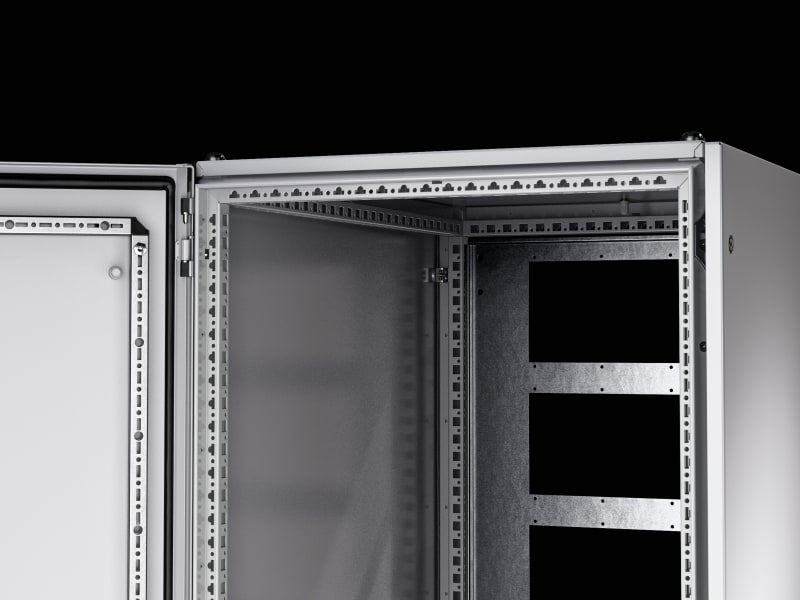

VX IT Partition plate heleinnsk HD 2000*1000

Rittal 5301270 VX IT partition plate can settes in one piece, HxD: 2000x1000, steel plate.

Manufacturer part number (MPN)

5301270

EAN / GTIN

4028177954793

Sales unit

pcs

Model designation

VX 5301.270

Material

Sheet steel, zinc-plated

Supply includes

Partition; 2 cover caps

To fit

Enclosure type: VX IT; Height: = 2,000 mm; Depth: = 1,000 mm

Assembly instruction

A baying gap of 3 mm is required to insert the partition

IP protection category to IEC 60 529

IP 20 (with fitted cover caps)

Net weight

27 kg

Gross weight

27.5 kg

PCF per pack (cradle-to-gate)

104.8 kg CO2 eq (Cat B)

Note on PCF category

Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number

94039910

ETIM 9

EC002525

ECLASS 8.0

27189234

Suitable for enclosure building depth

1000 mm

Height

2000 mm

Surface finishing

Galvanised

Colour

Grey

RAL-number

7035

With cable entry

No

With lock

No

Construction type

Individual part

For internal separation form 2a

No

For internal separation form 2b

No

For internal separation form 3a

No

For internal separation form 3b

No

For internal separation form 4a

No

For internal separation form 4b

No

Country of origin

Germany

HS Code

9403.99

• EAN 4028177954793
• SAP 1200493041
• Code 82691049
