Rittal
NH-sikrings-switch-disconnector gr. 000
Part number9635700EAN / GTIN4028177937604HS code8536.90
Switchgear & Protection
Fuse Switch-Disconnectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

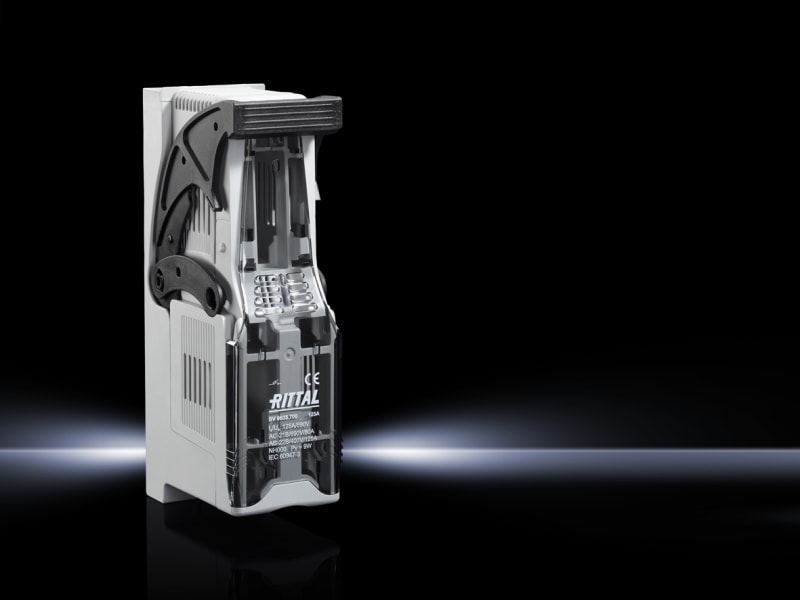

Rittal 9635700 NH-sikrings-switch-disconnector, size 000, 690 V (RiLine Compact).
Technical Specifications
- Manufacturer part number (MPN)
- 9635700
- EAN / GTIN
- 4028177937604
- Sales unit
- pcs
- Model designation
- SV 9635.700
- Product type
- NH Fuse-Switch Disconnectors
- Function principle
- To protect connected equipment; Integrated test holes provide measurement access to the contact parts of the fuse inserts; For the cable outlet at the top, the NH fuse switch disconnector must be rotated 180° when mounted on the board
- Material
- Polyamide; Fire protection corresponding to UL 94-V0; Contact tracks: Silver-plated hard copper
- Color
- RAL 7035
- Test specification
- IEC 60 947-3
- For NH size
- 000
- Rated operating voltage
- 440 V (DC), 3~; 690 V (AC), 3~
- Number of poles
- 3-pole
- Cable outlet
- Top/bottom
- Type of connection (electrical)
- Box terminal
- Connection of round conductors
- 2.5 ‐ 50 mm²
- Dimensions
- Width: 49.5 mm; Height: 174.5 mm; Depth: 96 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.52 kg
- Gross weight
- 0.562 kg
- Copper weight (kg per piece)
- 0.145
- Customs tariff number
- 85369095
- ETIM 9
- EC001040
- ECLASS 8.0
- 27371401
- Rated permanent current Iu
- 125 A
- Degree of protection (IP), front side
- IP20
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Frame clamp
- Version as emergency stop installation
- No
- Type of control element
- Cover grip
- Version as main switch
- No
- Version as safety switch
- No
- Suitable for floor mounting
- No
- Suitable for front mounting
- Yes
- Suitable for busbar mounting
- Yes
- Max. rated operation voltage Ue AC
- 690 V
- With error protection
- No
- Motor drive optional
- No
- Position control element
- Front side
- Equipped with connectors
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177937604
- SAP 1200596571
- Code 82972160
Product Documentation
Document preview: Rittal 9635700 — Data Sheet (OEM)
