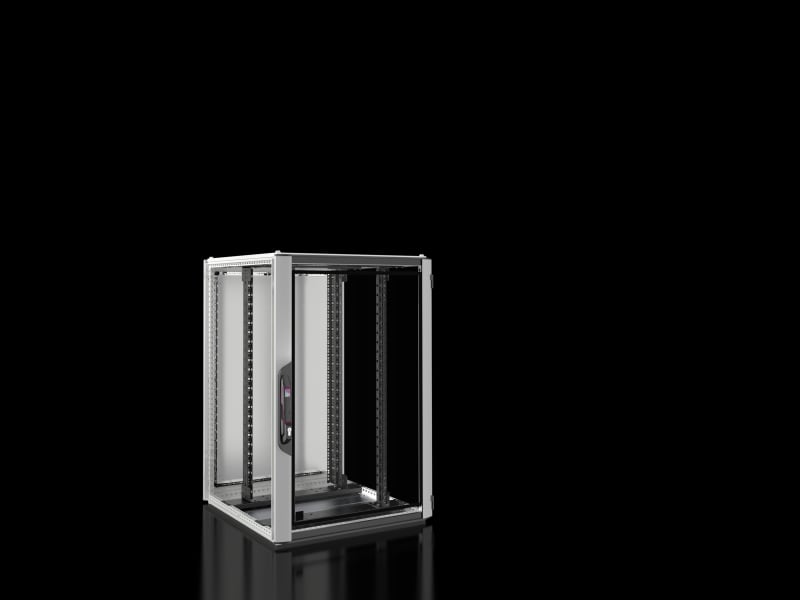

VX IT std 800X1200X800 IP55

Rittal 5303134 Manufacturer description: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 1200 x 800 mm, 24 HE, IP 55. VX IT, solid, IP55.19 "mounting brackets, standard, RAL7035, WHD 800x1200x800mm, 24U.

Manufacturer part number (MPN)

5303134

EAN / GTIN

4028177944855

Sales unit

pcs

Model designation

VX 5303.134

Product type

Network/server rack VX IT

Material

Sheet steel; Aluminium; Glazed door: Single-pane safety glass

3 mm; Front door

Aluminium

1.25 mm; Rear door

Sheet steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Interior installation: Spray-finished; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished

General colour

RAL 7035

Colour

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections

RAL 9005; Interior installation

RAL 9005; Handle and hinges: RAL 9005

Supply includes

VX enclosure frame with doors and roof plate; Glazed aluminium door at the front, 180° hinges; Sheet steel rear door, solid, one-piece

130° hinges; Lock front and rear

Comfort handle for profile half-cylinders and security lock 3524 E; Mounting angles, 482.6 mm (19"); Roof plate, one-piece, solid; Base tray with gland plate, multi-piece, solid; Baying seal and sealing kit for gland plates (supplied loose); 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet

Dimensions

Width: 800 mm; Height: 1,200 mm; Depth: 800 mm

Units

24 U

Distance between levels as delivered

520 mm

Design

Standard

Roof design

one-piece, solid

Rear door design

Sheet steel door, solid, one-piece, 130° hinges

Front door design

Glazed aluminium door, solid, one-piece, 180° hinges

Mounting angle design

482.6 mm (19") mounting angles, standard in the VX IT

Base design

Base tray with gland plate, multi-piece, solid

Mounting angles position

482.6 mm (19") level, front and rear

Load capacity

8,000 N

Protection category to IEC 60 529

IP 55 only in conjunction with baying seal or screw-fastened side panels

IK Code

IK08

Basic material

Sheet steel

Net weight

78.9 kg

Gross weight

90.8 kg

PCF per pack (cradle-to-gate)

223.7 kg CO2 eq (Cat B)

Note on PCF category

Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ECLASS 8.0

27180207

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

800 mm

Height

1200 mm

Depth

800 mm

Number of height units

24

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20

• EAN 4028177944855
• SAP 1200493116
• Code 82691046
