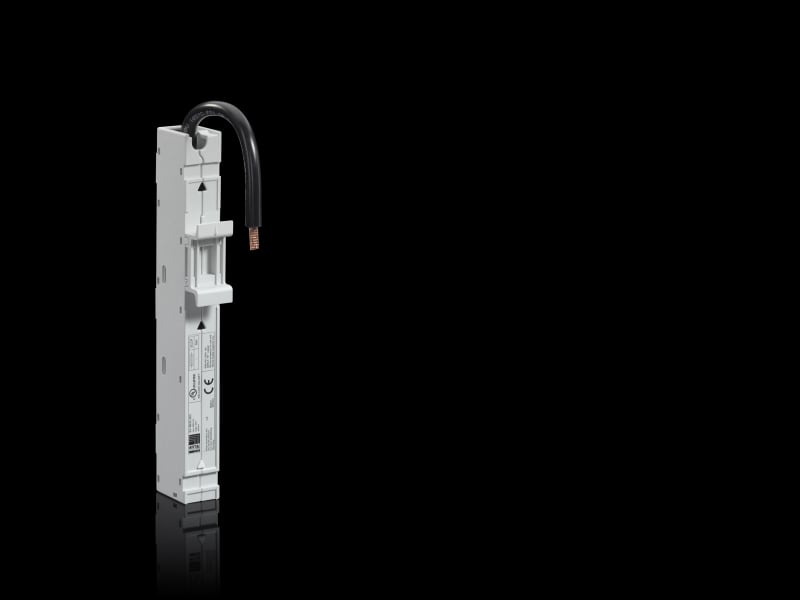

Komponentadaptere 1-pole 63A 690V L3
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9635383 Manufacturer description: SV component adaptor 63 A, 690 V (AC), 1-pole (variant L3), connection cable AWG 8, WH: 18 x 160 mm. Komponentadapter 63 A, 690 V (AC), 1-pole (variant L3), connection cable AWG 8, WH: 18 x 160 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9635383
- EAN / GTIN
- 4028177934573
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Model designation
- SV 9635.383
- Product type
- Component Adapters
- Version
- L3
- Function principle
- For mechanical attachment and direct contacting of electrical equipment on the board
- Material
- Polyamide; Fire behavior corresponding to UL 94
- Color
- RAL 7035
- Rated operating voltage
- 690 V (AC), 1~
- Number of poles
- 1-pole
- Connection cables (AWG)
- AWG 8
- Length of connection cable
- 100 mm
- Support rails Qty/height
- 1 / 10 mm
- Support rail type
- Fixed
- Dimensions
- Width: 18 mm; Height: 160 mm; Depth: 35 mm
- Packaging unit
- 6 pc(s).
- Net weight
- 0.39 kg
- Gross weight
- 0.499 kg
- Copper weight (kg per piece)
- 0.026
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL + C-UL (listed)
- Rated current
- 63 A
- Mounting rail armament
- None
- Rated current In
- 63 A
- Min. busbar thickness
- 0 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 18 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177934573
- SAP 1200596567
- Code 82972174
Product Documentation
More from Rittal
Rittal
Base plate VX front / rear 400X200
8640021
Rittal
Termination Plate CM (5001130)
Rittal

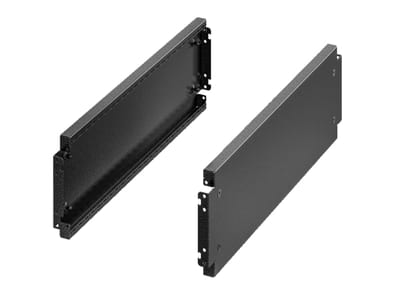

Base plates VX side 200X300
8640040
Rittal

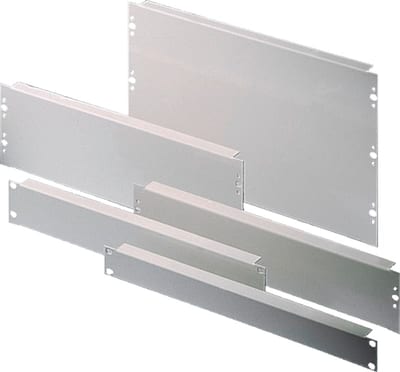

19" Blanking Panel 1U steel
7151035
Rittal

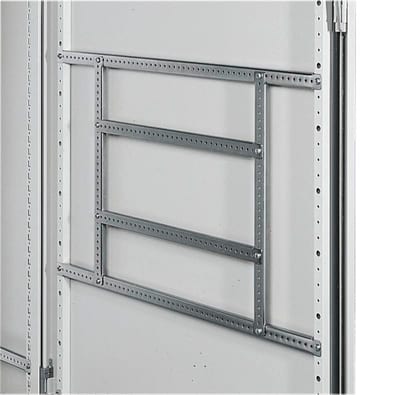

Rittal 4596000 TS Support Strip 490 mm for TS/VX SE/TP Door Width 600 mm
Rittal

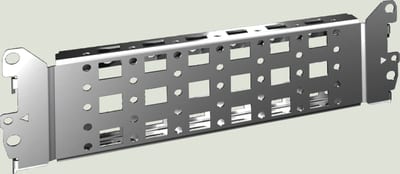

System chassis VX in 23X64 400
8617110
Rittal
Swing frame VX, small, 3HE 600
8619500
Rittal

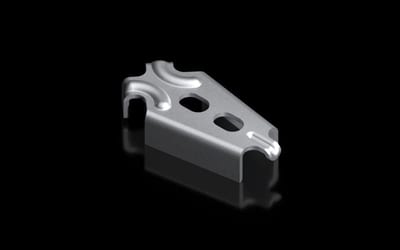

Floor Mounting Bracket for VX Base
