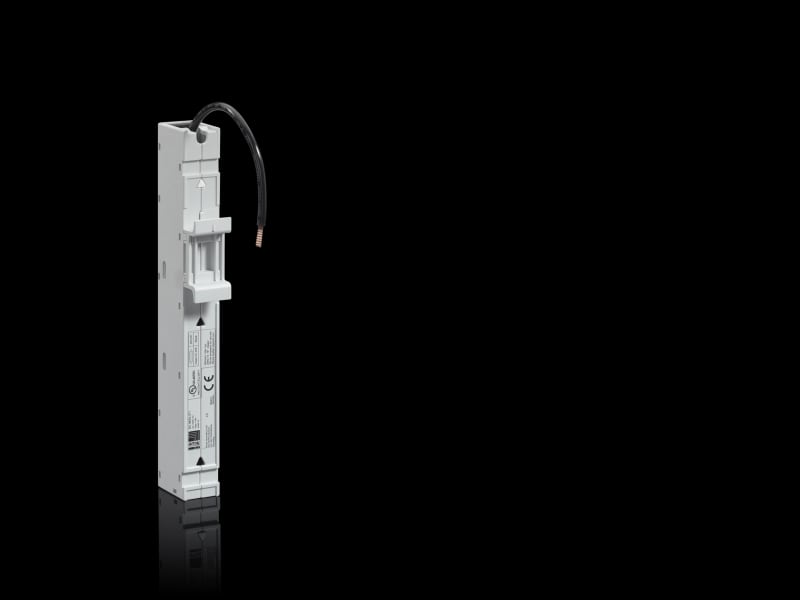

Device Adapter 1-pole 16A 690V L1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9635371 Manufacturer description: SV component adaptor 16 A, 690 V (AC), 1-pole (variant L1), connection cable AWG 14, WH: 18 x 160 mm. Komponentadapter 16 A, 690 V (AC), 1-pole (variant L1), connection cable AWG 14, WH: 18 x 160 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9635371
- EAN / GTIN
- 4028177934597
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Model designation
- SV 9635.371
- Product type
- Component Adapters
- Version
- L1
- Function principle
- For mechanical attachment and direct contacting of electrical equipment on the board
- Material
- Polyamide; Fire behavior corresponding to UL 94
- Color
- RAL 7035
- Rated operating voltage
- 690 V (AC), 1~
- Number of poles
- 1-pole
- Connection cables (AWG)
- AWG 14
- Length of connection cable
- 100 mm
- Support rails Qty/height
- 1 / 10 mm
- Support rail type
- Fixed
- Dimensions
- Width: 18 mm; Height: 160 mm; Depth: 35 mm
- Packaging unit
- 6 pc(s).
- Net weight
- 0.3 kg
- Gross weight
- 0.358 kg
- Copper weight (kg per piece)
- 0.006
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL + C-UL (listed)
- Rated current
- 16 A
- Mounting rail armament
- None
- Rated current In
- 16 A
- Min. busbar thickness
- 0 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 18 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
