Rittal

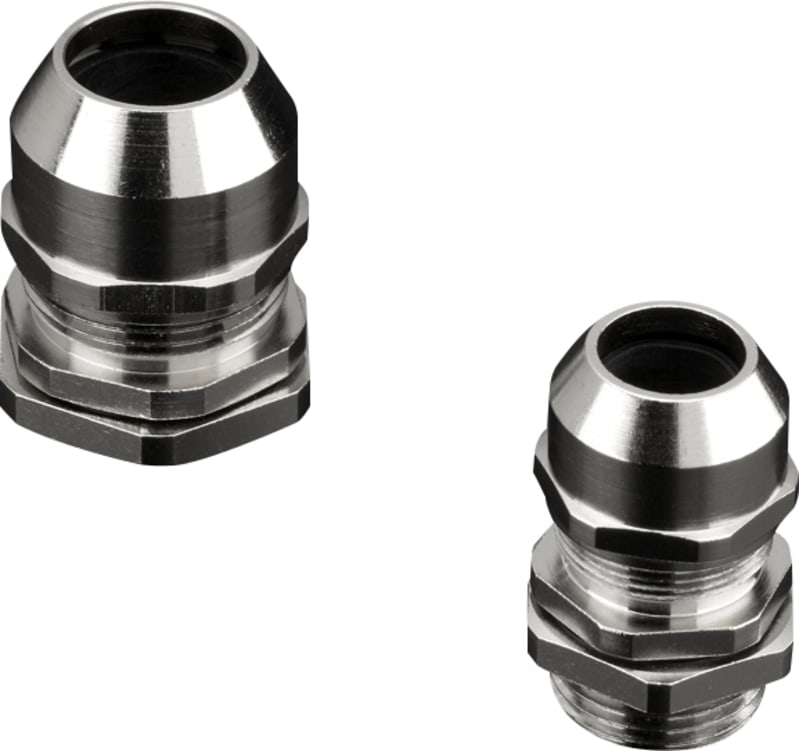

Cable Gland M12X1,5 15/frp
Part number2411801EAN / GTIN4028177809994HS code3926.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2411801 Cable Gland in brass, zinc-plated, M12X1,5 15/frp.
Technical Specifications
- Manufacturer part number (MPN)
- 2411801
- EAN / GTIN
- 4028177809994
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Model designation
- SZ 2411.801
- Product type
- Cable gland, brass
- Material
- Brass; Seal: CR/NBR
- Surface finish
- Nickel-plated
- Protection category IP to IEC 60 529
- IP 68 (5 bar, 30 min.)
- Dimensions
- Height: 22 mm
- Thread
- M12 x 1.5
- Thread length
- 6 mm
- Min. cable diameter
- 3 mm
- Max. cable diameter
- 6.5 mm
- Operating temperature range
- -40 °C...100 °C; -40 °F...212 °F
- Width across flats
- 14 mm
- Type rating according to UL 50E
- Type 4X
- Packaging unit
- 15 pc(s).
- Net weight
- 0.195 kg
- Gross weight
- 0.222 kg
- Customs tariff number
- 74198090
- ETIM 9
- EC000441
- ETIM 8
- EC000441
- ECLASS 8.0
- 27149109
- Approvals
- UR + C-UR (recognized); VDE
- Thread type
- Metric
- Nominal thread size metric/PG
- 12
- Pitch thread
- 1.5 mm
- Wrench width
- 17 mm
- Hexagon angular dimension
- 17 mm
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177809994
- SAP 1200596538
- Code 82972153
Product Documentation
Document preview: Rittal 2411801 — Data Sheet (OEM)
More from Rittal
Rittal

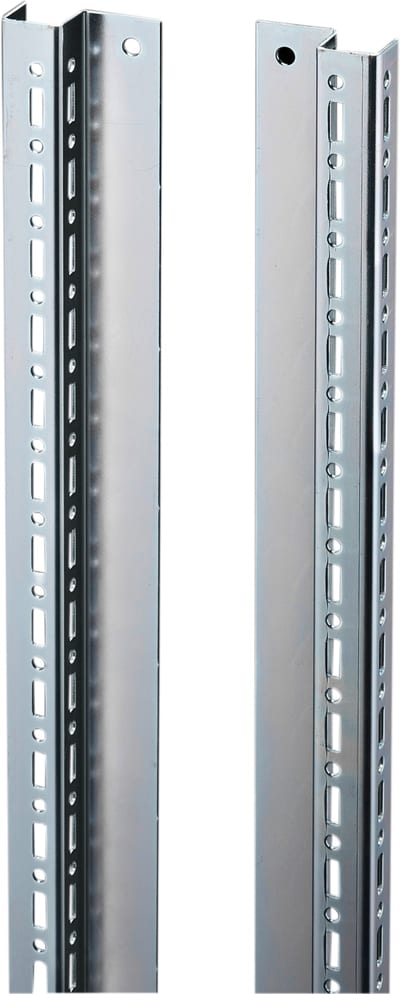

Rails f inner utbuilding. CM/CL (5001052)
Rittal

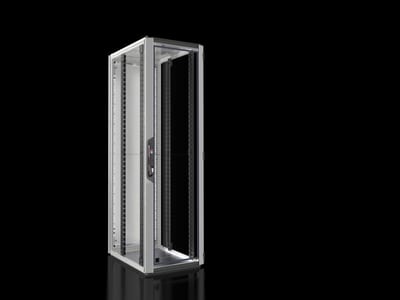

VX IT std 600X2000X800 IP55
5330133
Rittal

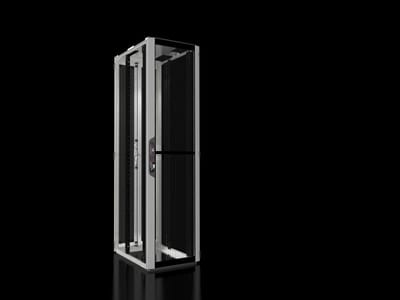

VX IT std 600X2200X800
5331113
Rittal
Transponder short Mifare Classic 1K
7030628
Rittal
Device Adapter OM 32A, AWG 10
9340460
Rittal

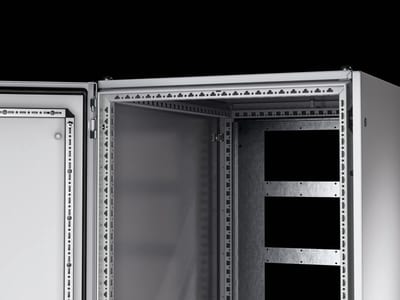

VX IT Partition plate heleinnsk HD 2000*1000
5301270
Rittal

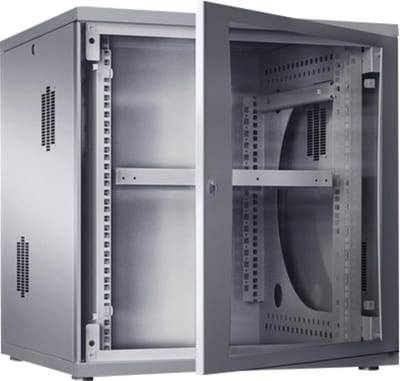

FlatBox 18HE, 700mm deep
7507210
Rittal

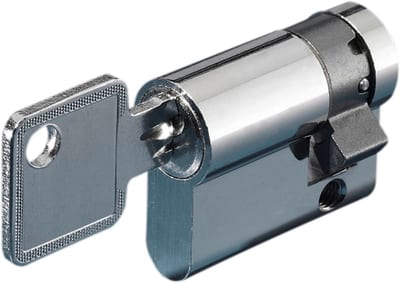

Half Profile Cylinder CS, 40 mm
