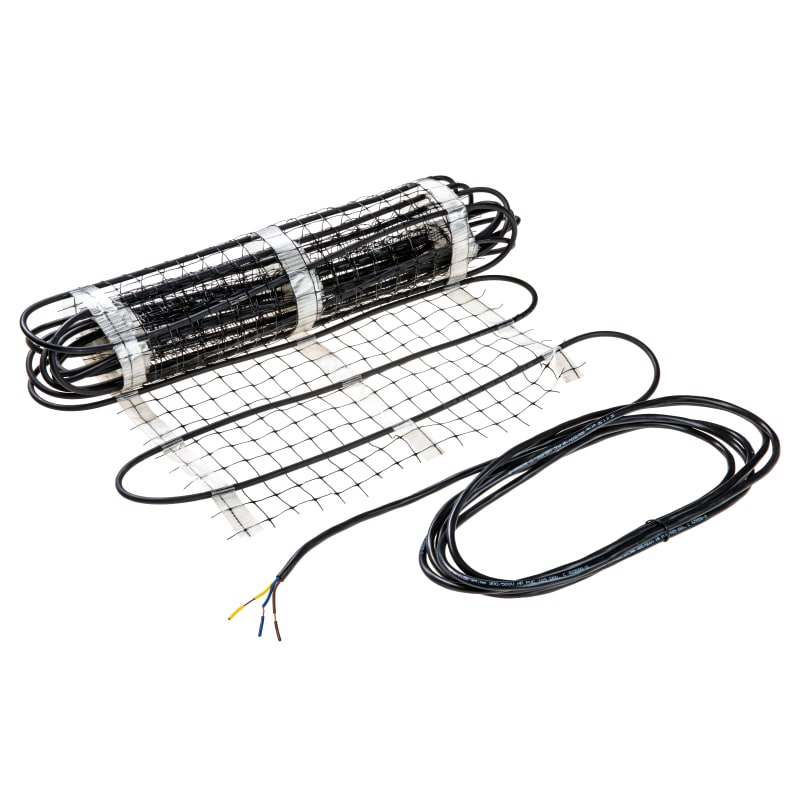

Raychem WinterGard-Mat 230 V 3780 W 21 m Snow-Melting Mat
Pricing
Request a quote
We reply within 24 hours
Product Description
Raychem 1244-022759 is a WinterGard-Mat constant-wattage snow-melting mat, 21 m long by 600 mm wide, delivering 300 W/m² at 230 V for a total connected load of 3780 W. The two-conductor construction uses a polyolefin outer jacket with foil-and-drainwire ground path and includes a 5 m cold lead for supply connection. It is intended for outdoor surface heating of driveways, ramps and walkways to prevent ice and snow accumulation. Installation temperature down to 5 °C and off-state exposure up to 65 °C support year-round embedded service.
Technical Specifications
- Manufacturer part number (MPN)
- 1244-022759
- EAN / GTIN
- 5414506024159
- Sales unit
- pcs
- Item Name
- WINTERGARD-MAT-230V-21M
- Length (L)
- 21 m
- Width (W)
- 600 mm
- Cold Lead Length
- 5 m
- Color
- Black
- Conductor Quantity
- 2
- Ground Path Type
- Foil and Drainwire
- Heating Cable Technology
- Constant Wattage
- Max Continuous Exposure Temperature, Power Off
- 65 °C
- Min Installation Temperature
- 5 °C
- Nominal Power Output @ 230V
- 300 W/m²
- Outer Diameter (OD)
- 7 mm
- Outer Jacket Material
- Polyolefin
- Supply Voltage
- 220 - 240 V
- Model
- Heating cable
- Power
- 300 W/m²
- Thickness
- 7 mm
- Self-adhesive
- No
- Surface
- 12.6 m²
- With room temperature controller
- No
- Heating conductor load
- 30 W/m
- With support mat
- Yes
- Fixation thermal conductor
- Sewed
- Number of cold conductors
- 1
- Length of cold conductors
- 5000 mm
- Resistance
- 13.3 Ohm
- With controller
- No
- Connection voltage
- 230 V
- Connected load
- 3780 W
- With floor temperature sensor
- No
- Suitable as outdoor surface heating
- Yes
- Suitable as roof surface heating
- No
- Operation by app
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Suitable for damp space
- Yes
- Country of origin
- India
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 5414506024159
- SAP 1200679449
- Code 83145405
