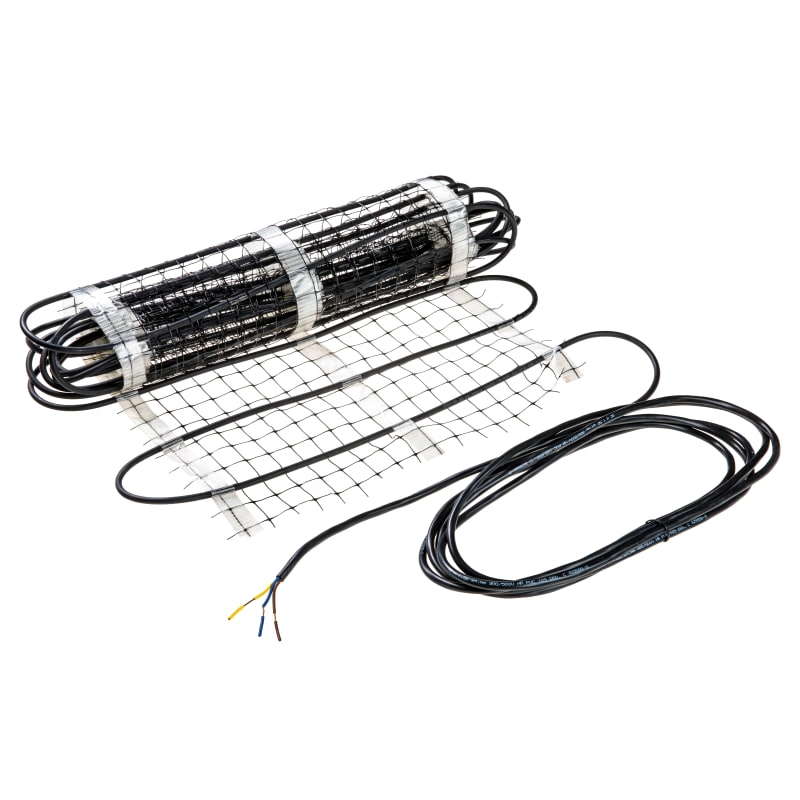

Raychem WinterGard-Mat 230 V 1800 W 10 m Snow-Melt Mat 300 W/m²
Pricing
Request a quote
We reply within 24 hours
Product Description
Raychem 1244-022756 is a WinterGard-Mat 230 V constant-wattage snow-melting mat, 10 m long and 600 mm wide, delivering 300 W per square metre and 1800 W total. The two-conductor heating cable is factory laid on the mesh with a 5 m cold lead and a polyolefin outer jacket. Rated for supply between 220 and 240 V, with a 5 °C minimum installation temperature and 65 °C maximum power-off exposure temperature. Typical applications include entrance ways, ramps, and outdoor walking surfaces where paving must be kept clear of ice and snow.
Technical Specifications
- Manufacturer part number (MPN)
- 1244-022756
- EAN / GTIN
- 5414506024128
- Sales unit
- pcs
- Item Name
- WINTERGARD-MAT-230V-10M
- Length (L)
- 10 m
- Width (W)
- 600 mm
- Cold Lead Length
- 5 m
- Color
- Black
- Conductor Quantity
- 2
- Ground Path Type
- Foil and Drainwire
- Heating Cable Technology
- Constant Wattage
- Max Continuous Exposure Temperature, Power Off
- 65 °C
- Min Installation Temperature
- 5 °C
- Nominal Power Output @ 230V
- 300 W/m²
- Outer Diameter (OD)
- 7 mm
- Outer Jacket Material
- Polyolefin
- Supply Voltage
- 220 - 240 V
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 5414506024128
- SAP 1200679446
- Code 83145407
Product Documentation
More from Raychem
Raychem
WINTERGARD-Cable-230V-600W-20M (1244-022769)
Raychem
Raychem IEK-25-04 Insulation Entry Kit 332523-000
Raychem
32 MM Y-Connection with Pakkboks Conical
GL-Y-01-32MM
Raychem

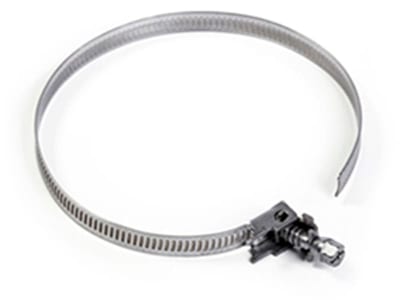

Raychem PSE-090 Fixing Band Ø40-90 mm for Heating Cable
976935-000
Raychem

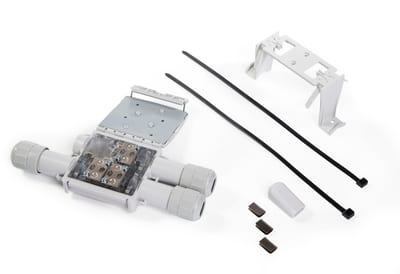

Rayclic T-02 T-BRANCH + End termination
