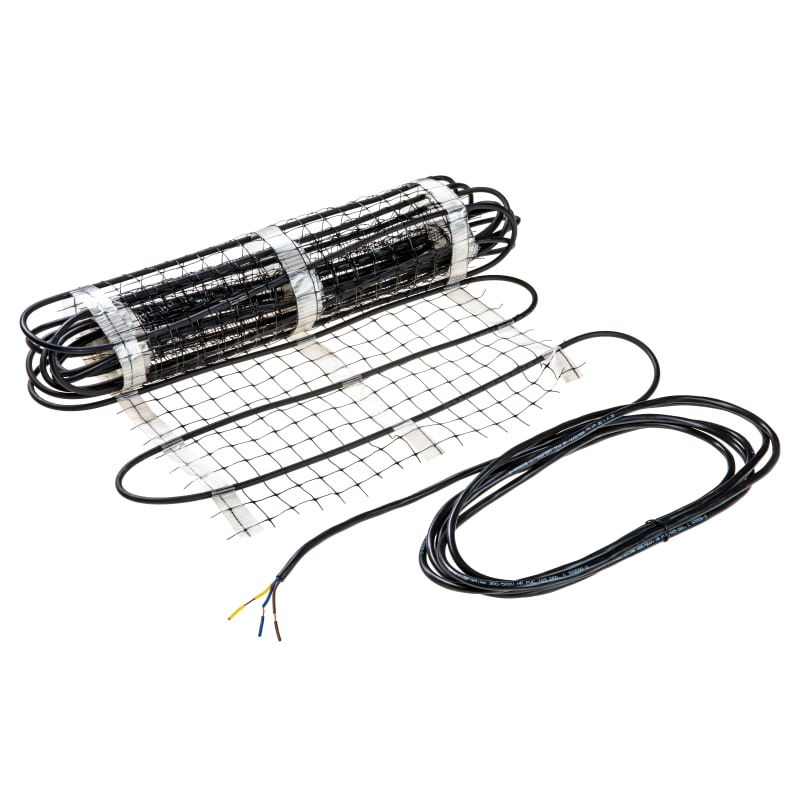

Raychem 1244-022751 WinterGard-Mat Snow-Melting Mat 230 V 360 W 2 m 300 W/m²
Pricing
Request a quote
We reply within 24 hours
Product Description
Raychem 1244-022751 WinterGard-Mat is a pre-fabricated snow-melting heating mat, 2 m long by 600 mm wide, drawing 360 W at 230 V for a nominal output of 300 W/m². The constant-wattage two-conductor cable is factory-fixed to a mesh carrier with a 5 m cold lead, ready to roll out and cast into a concrete or asphalt surface. Typical applications include small ramp and step snow-melting installations at entrances and short driveway sections.
Technical Specifications
- Manufacturer part number (MPN)
- 1244-022751
- EAN / GTIN
- 5414506024074
- Sales unit
- pcs
- Item Name
- WINTERGARD-MAT-230V-2M
- Length (L)
- 2 m
- Width (W)
- 600 mm
- Cold Lead Length
- 5 m
- Color
- Black
- Conductor Quantity
- 2
- Ground Path Type
- Foil and Drainwire
- Heating Cable Technology
- Constant Wattage
- Max Continuous Exposure Temperature, Power Off
- 65 °C
- Min Installation Temperature
- 5 °C
- Nominal Power Output @ 230V
- 300 W/m²
- Outer Diameter (OD)
- 7 mm
- Outer Jacket Material
- Polyolefin
- Supply Voltage
- 220 - 240 V
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 5414506024074
- SAP 1200679441
- Code 83145404
Product Documentation
