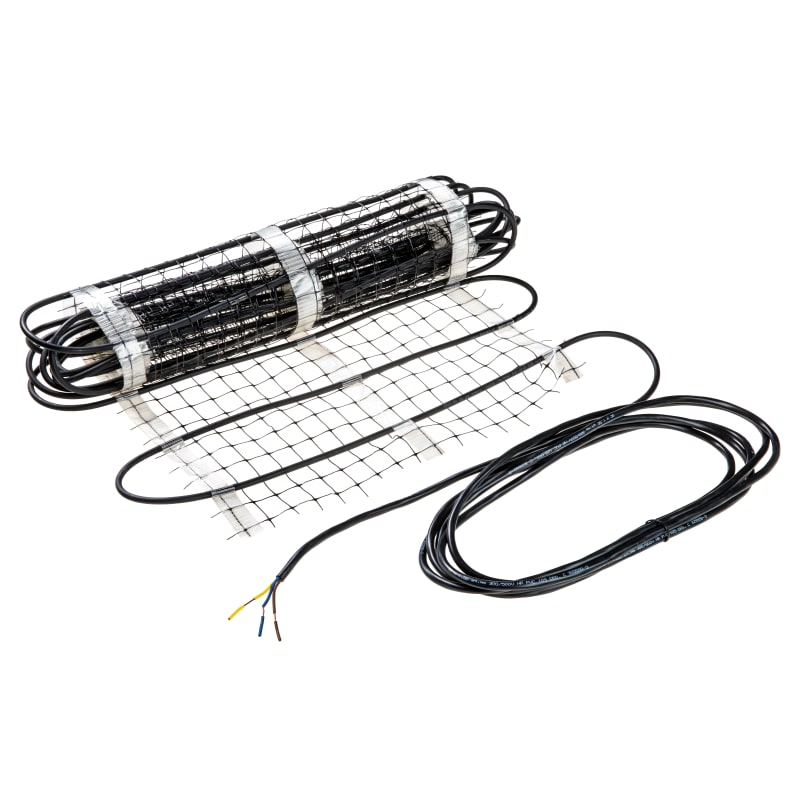

Raychem WinterGard Snow-Melting Mat 230 V 2340 W 13 m, 300 W/m²
Pricing
Request a quote
We reply within 24 hours
Product Description
Raychem 1244-022757 is a WinterGard constant-wattage snow-melting mat measuring 13 m long by 600 mm wide, rated 2340 W at 230 V for 300 W/m² output. The two-conductor mat has a polyolefin jacket, foil-and-drainwire ground path and a 5 m cold lead for connection outside the heated area. Designed for ramps, walkways and staircases to keep surfaces clear of snow and ice through the winter. Minimum installation temperature is 5 degrees C.
Technical Specifications
- Manufacturer part number (MPN)
- 1244-022757
- EAN / GTIN
- 5414506024135
- Sales unit
- pcs
- Item Name
- WINTERGARD-MAT-230V-13M
- Length (L)
- 13 m
- Width (W)
- 600 mm
- Cold Lead Length
- 5 m
- Color
- Black
- Conductor Quantity
- 2
- Ground Path Type
- Foil and Drainwire
- Heating Cable Technology
- Constant Wattage
- Max Continuous Exposure Temperature, Power Off
- 65 °C
- Min Installation Temperature
- 5 °C
- Nominal Power Output @ 230V
- 300 W/m²
- Outer Diameter (OD)
- 7 mm
- Outer Jacket Material
- Polyolefin
- Supply Voltage
- 220 - 240 V
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 5414506024135
- SAP 1200679447
- Code 83145406
Product Documentation
