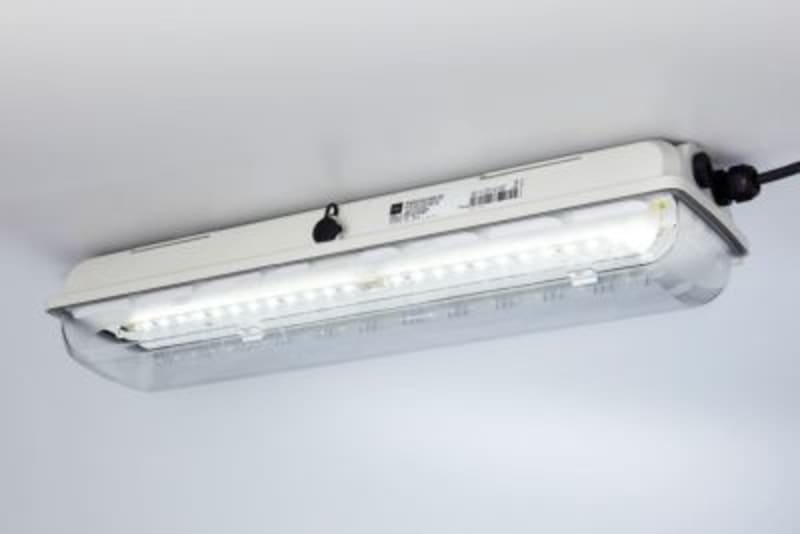

6002/4128 LED 22W 2910LM 5000K (272233)
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 272233 Ex LED luminaire.
Technical Specifications
- Manufacturer part number (MPN)
- 272233
- EAN / GTIN
- 4046827159121
- HS code
- 8543.70
- Sales unit
- pcs
- Power
- 22 W
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- No
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Material cover
- Plastic, transparent
- Voltage type
- AC/DC
- Type of control gear
- LED operating device voltage-controlled
- With control gear
- Yes
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- > 80° - Extreme wide beam
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- II
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Max. system power
- 22 W
- Rated luminous flux according to IEC 62722-2-1
- 2910 lm
- Colour of light
- White
- Width
- 184 mm
- Height/depth
- 125 mm
- Length
- 700 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 5
- Conductor cross section
- 6 mm²
- Connection type
- Push-in clamp
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4046827159121
- SAP 1200870003
- Code 84106109
Product Documentation
More from R. Stahl Scandinavia As
R. Stahl Scandinavia As
Ex Safety Switch 8146/5-V37-606-00-0010, 63 A / 80 A
200573
R. Stahl Scandinavia As
Ex Position Switch 8060/2-5-R-60, roller plunger
254798
R. Stahl Scandinavia As
Ex Safety Switch 8146/5-V37-306-00-0010, 63 A / 80 A
213115
R. Stahl Scandinavia As
Wall outlet 16 A Light grey 3H
273932
R. Stahl Scandinavia As
Two-Channel Safety Barrier 9002/77-280-094-001
158877
R. Stahl Scandinavia As
Ex de LED indicator 2X Push-button NC
130702
R. Stahl Scandinavia As
Ex de LED indicator and push-button NC
130852
R. Stahl Scandinavia As
Ex Safety Switch 8146/5-V37-303-50-0010, 20 A
220278
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 272233?
- 272233 can be ordered from cballast.com as a R. Stahl Scandinavia As catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this R. Stahl Scandinavia As product?
- The manufacturer part number is 272233.
- What is the HS code for 272233?
- The customs tariff (HS) code for 272233 is 8543.70.
- Who manufactures 272233?
- 272233 is a R. Stahl Scandinavia As product in the Hazardous Area Equipment range.
- Is a datasheet available for 272233?
- Yes — the 272233 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 272233?
- The minimum order quantity is 1.
- Is 272233 available?
- Yes — 272233 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
