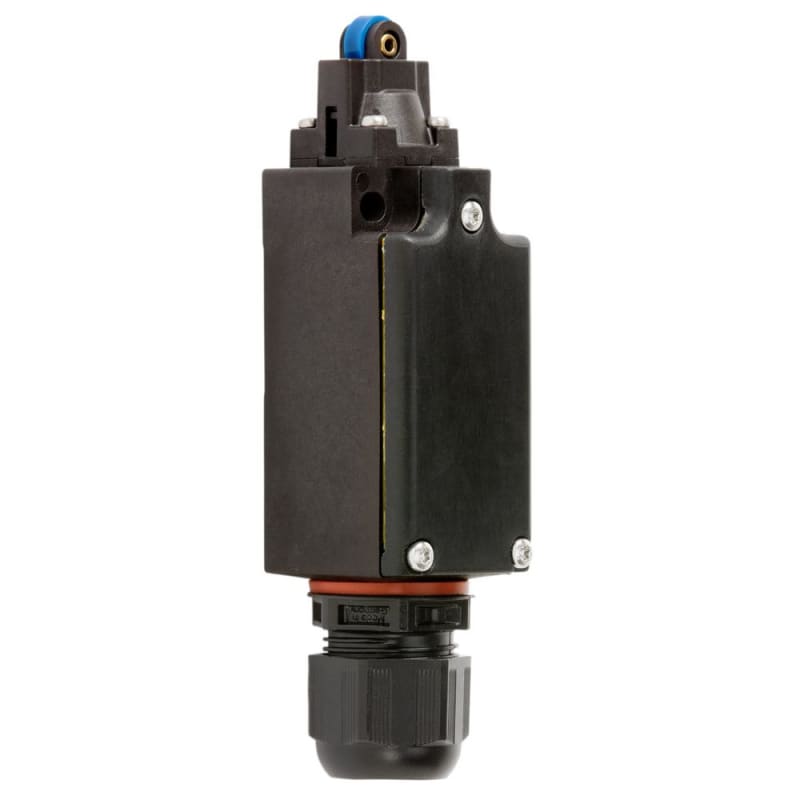

Ex Position Switch 8060/2-5-R-60, roller plunger
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 254798 Ex position switch, roller plunger, type 8060/2-5-R-60.
Technical Specifications
- Manufacturer part number (MPN)
- 254798
- EAN / GTIN
- 4046827149382
- Sales unit
- pcs
- Switching function
- Slow-action switch with overlapping
- Rated operation current Ie at AC-15, 230 V
- 2 A
- Rated operation current Ie at DC-13, 230 V
- 2 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 2 A
- Rated operation current Ie at AC-15, 24 V
- 2 A
- Rated operation current Ie at DC-13, 125 V
- 2 A
- Rated operation current Ie at DC-13, 24 V
- 2 A
- Width sensor
- 31 mm
- Height of sensor
- 32 mm
- Length of sensor
- 5 mm
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827149382
- SAP 1200886736
- Code 84128631
Product Documentation
More from R. Stahl Scandinavia As
R. Stahl Scandinavia As

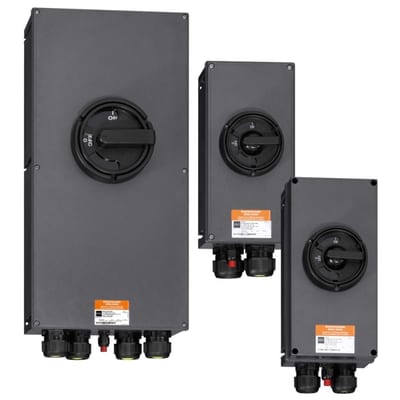

Ex Safety Switch 8146/5-V37-306-00-0010, 63 A / 80 A
213115
R. Stahl Scandinavia As

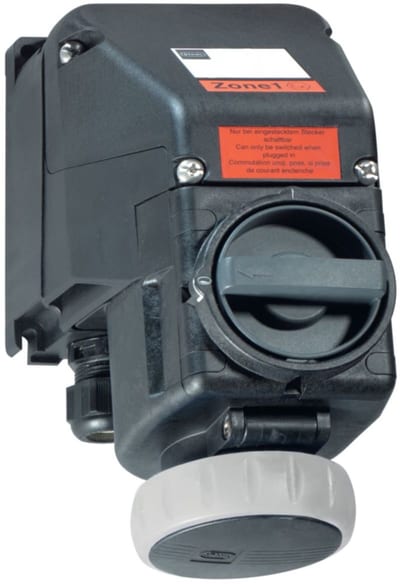

Wall outlet 16 A Light grey 3H
273932
R. Stahl Scandinavia As

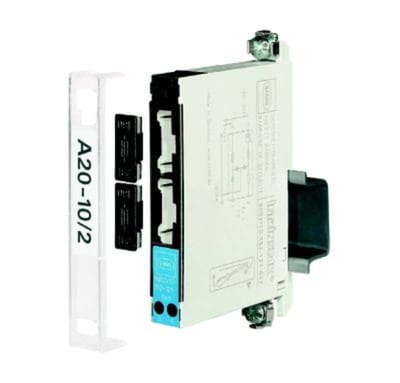

Two-Channel Safety Barrier 9002/77-280-094-001
158877
R. Stahl Scandinavia As
Ex de LED indicator 2X Push-button NC
130702
R. Stahl Scandinavia As
Ex de LED indicator and push-button NC
130852
R. Stahl Scandinavia As
Ex Safety Switch 8146/5-V37-303-50-0010, 20 A
220278
R. Stahl Scandinavia As
Ex Position Switch Actuator Spare, Roller plunger 8070/2-0-R
258602
R. Stahl Scandinavia As
6002/4128 LED 22W 2910LM 5000K (267066)
