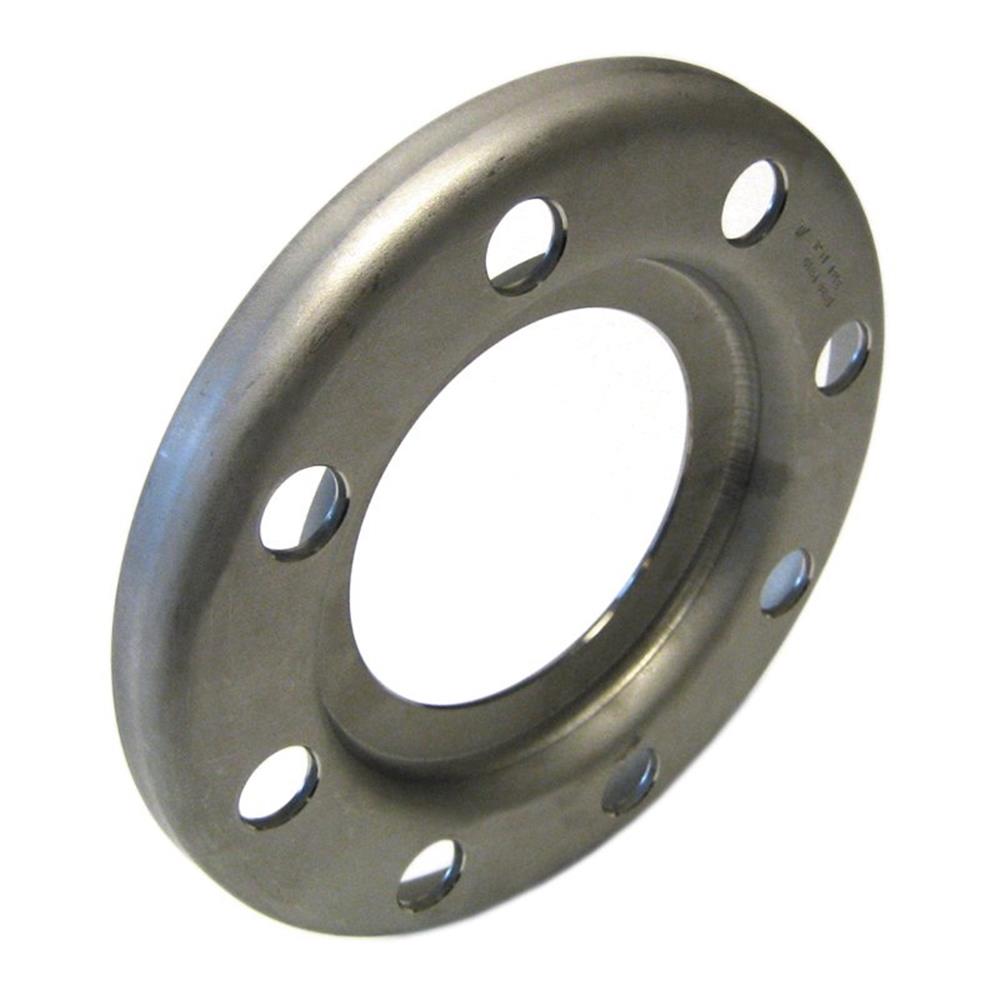

Pressed Loose Flange DN65, PN16, for Ø73 mm Pipe, 304 Stainless
Pricing
Request a quote
We reply within 24 hours
Product Description
Pressed loose (lap-joint) flange DN65, PN16, for pipe outer diameter 73 mm, stainless steel (304).
Technical Specifications
- Product type
- Loose flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 65
- Pressure PN
- 16 bar
- For pipes with outer diameter
- 73 mm
- Number of bolt holes
- 4 pcs
- Bolt dimension
- 16 mm
- Bolt hole diameter
- 18 mm
- Bolt circle diameter
- 145 mm
- Flange thickness
- 21.5 mm
- Diameter
- 185 mm
- Steel quality
- 4307/304L
- Tolerance
- PN16
- Material certificate
- EN 10204 3.1
- Weight
- 0.87 kg
- Inner diameter
- 78 mm
- A dimension
- 108 mm
- Thickness
- 4 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0024 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GL70055373
