Weld flange with collar stainless - 250, 273mm, 40bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Weld flange with collar stainless. Welding flanges DIN/ISO (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dn dimension 250, for pipes with outer diameter 273 mm, pressure pn 40 bar. Supplied under manufacturer part number GW17088476, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Welding flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 250
- For pipes with outer diameter
- 273 mm
- Pressure PN
- 40 bar
- Number of bolt holes
- 12 pcs
- Bolt hole diameter
- 33 mm
- Bolt dimension
- 30 mm
- Bolt circle diameter
- 385 mm
- Flange thickness
- 38 mm
- Diameter
- 450 mm
- Material certificate
- EN 10204 3.1
- D1 dimension
- 345 mm
- N1 dimension
- 306 mm
- H2 dimension
- 105 mm
- H3 dimension
- 18 mm
- R1 dimension
- 12 mm
- S dimension
- 7.1 mm
- Steel quality
- 4301/4307
- Tolerance
- EN-1092 type 11B
- Weight
- 34 kg
- F1 dimension
- 3 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0945 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GW17088476
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GW17088476
Product Documentation
More from Generic
Generic
AM Scraper ring CH07 NBR/steel - 34mm, 26mm, 5/8mm
372037
Generic
Cylinder pipe roller-burnished E355+SR - 135mm, 120mm, 23.6KG/m, 7,5mm, 4-8M
68297
Generic
E Cam coupling acid-resistant Hose Spigot han - 32mm, 1 1/4" 2664431
E125DINSS
Generic
Eurostandard Electrical Tapping Saddle - 50mm, 16bar, 25mm
2120165025
Generic

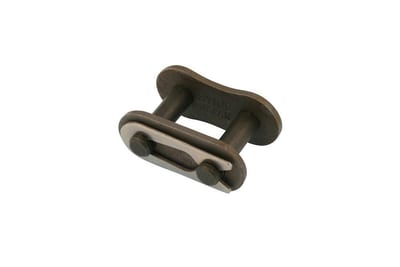

SY simplex Maintenance-free connecting link SLR AP straight 12B-1 - 3/4", 19.05mm
12B-1SY SLRAPRJ
Generic
Loose flange aluminium epoxy RAL7001 grey - 25, 10bar, 30mm
GL90753300
Generic

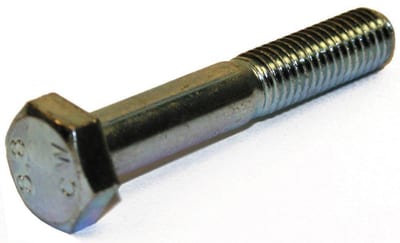

DIN 6914 Bolt hot-dip galvanised FZV 10.9 - M24, 160mm, 10PCS, 37mm
6914241603
Generic

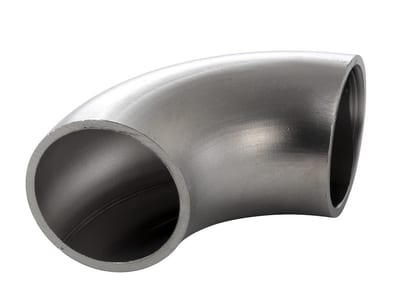

Weld Bend 1.5D stainless welded - 101.6mm, 3mm, 4307/304L, 133mm, 90°
