Phoenix Contact

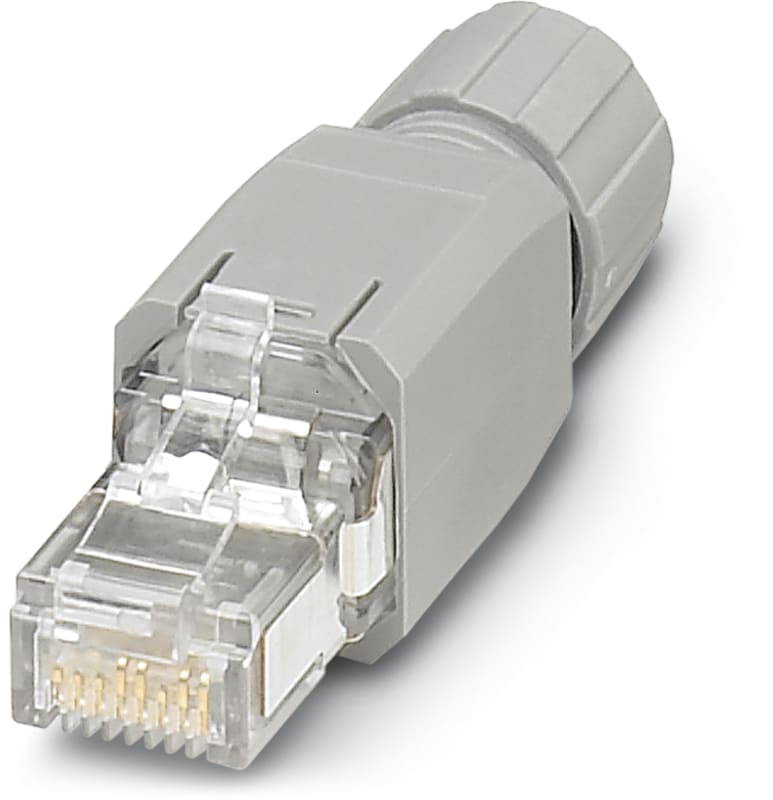

RJ45 Socket, quick-connect, 2-4 pair
Part numberVS-08-RJ45-5-Q/IP20EAN / GTIN4046356030045HS code8536.90
Communications
Network & Data
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Modular contact, Cat5E; connected without special tools.
Technical Specifications
- Manufacturer part number (MPN)
- VS-08-RJ45-5-Q/IP20
- EAN / GTIN
- 4046356030045
- HS code
- 8536.90
- Sales unit
- pcs
- IP rating
- IP20
- Contact type
- Pin
- Width
- 14 mm
- Length
- 59 mm
- Height
- 14.6 mm
- Depth
- 56 mm
- Number of poles
- 8
- Number of plug-in contact rows
- 1
- Rated current In
- 1.75 A
- Ambient temperature
- 70 °C
- Rated voltage
- 72 V
- Rated surge voltage
- 72 kV
- Overvoltage category
- I
- Pollution degree
- 2
- Connectable conductor cross section solid-core
- 0.13–0.25 mm²
- Connectable conductor cross section multi-wired
- 0.13–0.25 mm²
- Material of contact surface
- Gold
- Material insulation body
- Polyamide (PA)
- Housing material
- Plastic
- Coating housing
- Plastic-coated
- Type of locking
- Snap
- Polarization
- Plug
- Mounting method
- Inserted
- With interlocking device
- No
- With protective conductor
- No
- Operating temperature
- -20–70 °C
- Degree of protection (IP), mounted
- IP20
- EMC-version
- No
- Number of conduit inlets
- 1
- With sealing
- No
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356030045
- SAP 1000235789
- Code 81292449
Product Documentation
Document preview: RJ45 Socket, quick-connect, 2-4 pair (VS-08-RJ45-5-Q/IP20) — Specification sheet
