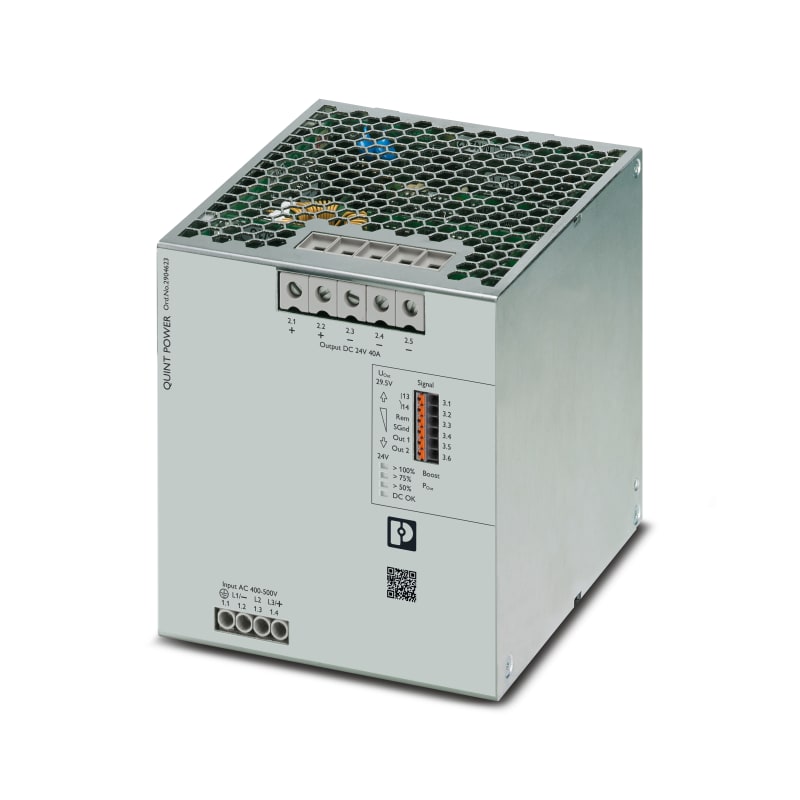

Phoenix Contact QUINT4-PS Power Supply 3AC/24DC/40 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/3AC/24DC/40 is a primary-switched three-phase DIN-rail power supply delivering 24 V DC at 40 A nominal, with adjustable output 24-29.5 V. Rated power output 960 W, short-circuit-proof, screw terminals. Housing 120 x 130 x 125 mm, IP20 protection.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/3AC/24DC/40
- EAN / GTIN
- 4055626356105
- Sales unit
- pcs
- Voltage
- 24 V DC
- Voltage type (supply voltage)
- AC/DC
- 2nd secondary output voltage
- 24–29.5 V
- 3rd secondary output voltage
- 24–29.5 V
- Max. output current 1
- 60 A
- Max. output current 2
- 45 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 40 A
- Short-circuit-proof
- Yes
- Output voltage stabilized
- Yes
- Power consumption
- 1217 VA
- Power output
- 960 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 130 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 120 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626356105
- SAP 1200403719
- Code 82450433
Product Documentation
