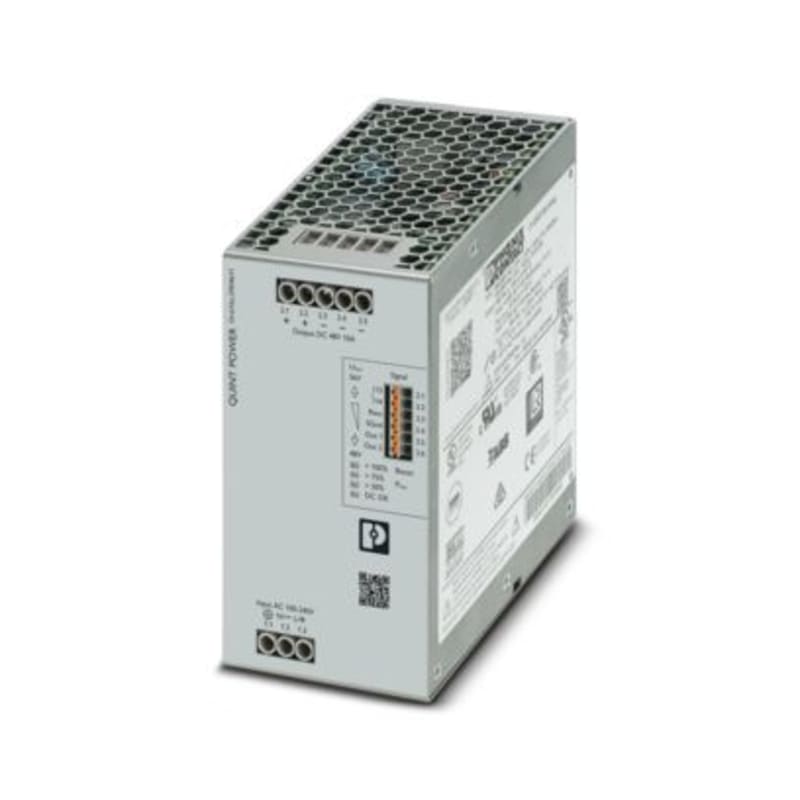

Phoenix Contact QUINT4-PS/1AC/48DC/10 Primary-Switched Power Supply, 48 V DC, 10 A
Pricing
Request a quote
We reply within 24 hours
Product Description
The QUINT4-PS/1AC/48DC/10 is a single-phase primary-switched DIN-rail power supply that converts 100-240 V AC input to a stable, adjustable 48-56 V DC output at 10 A nominal (480 W). Screw connections, short-circuit-proof output and Selective Fuse Breaking (SFB) technology deliver up to six times nominal current for reliable magnetic circuit-breaker tripping. The 70 mm-wide housing suits industrial control cabinets requiring a 48 V bus voltage.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/48DC/10
- EAN / GTIN
- 4055626355078
- Sales unit
- pcs
- Voltage
- 48 V DC
- Rated current
- 10 A
- Voltage type (supply voltage)
- AC
- 2nd secondary output voltage
- 48–56 V
- 3rd secondary output voltage
- 48–56 V
- Max. output current 1
- 15 A
- Max. output current 2
- 12.5 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 48 V
- Nominal value output current 1
- 10 A
- Short-circuit-proof
- Yes
- Output voltage stabilized
- Yes
- Power consumption
- 519 VA
- Power output
- 480 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 122 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 70 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626355078
- SAP 1200284566
- Code 82256653
Product Documentation
