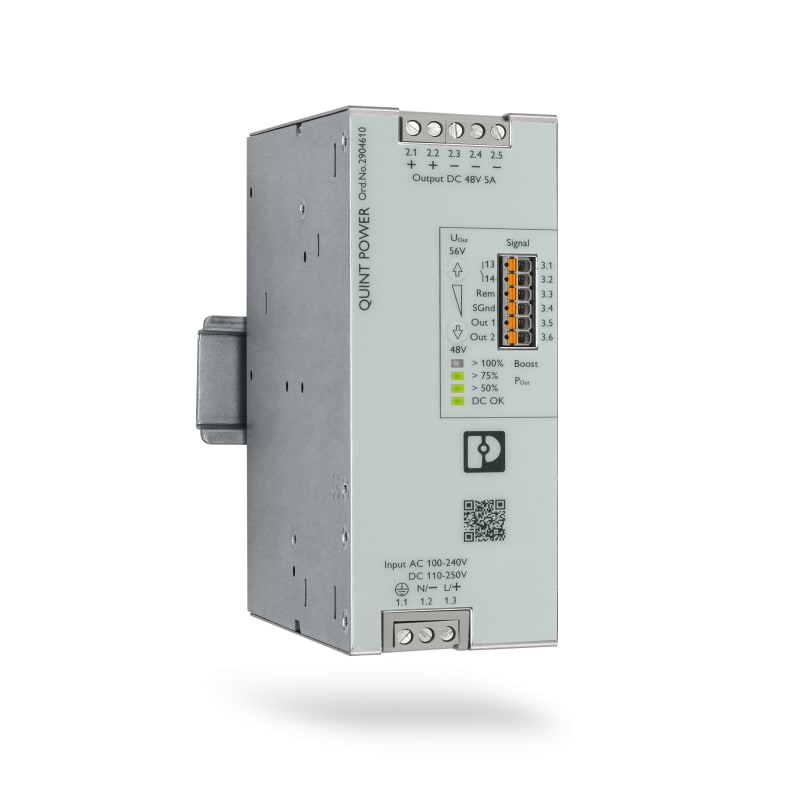

Phoenix Contact QUINT4-PS/1AC/48DC/5 Primary-Switched Power Supply 48 VDC 5 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/1AC/48DC/5 is a primary-switched DIN-rail power supply delivering 48 V DC at 5 A from a single-phase AC input, with an adjustable secondary output up to 56 V. Rated output is 240 W with short-circuit protection, stabilised regulation, and screw connection terminals. The unit measures 50 by 130 by 125 mm and is rated IP20 for enclosure installation, with SIL and PL suitability declared as none. Country of origin is Thailand.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/48DC/5
- EAN / GTIN
- 4055626355061
- Sales unit
- pcs
- Voltage
- 48 V DC
- Rated current
- 5 A
- Voltage type (supply voltage)
- AC
- 2nd secondary output voltage
- 48–56 V
- 3rd secondary output voltage
- 48–56 V
- Max. output current 1
- 10 A
- Max. output current 2
- 6.25 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 48 V
- Nominal value output current 1
- 5 A
- Short-circuit-proof
- Yes
- Output voltage stabilized
- Yes
- Power consumption
- 271 VA
- Power output
- 240 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 122 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 50 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626355061
- SAP 1200681926
- Code 83446811
