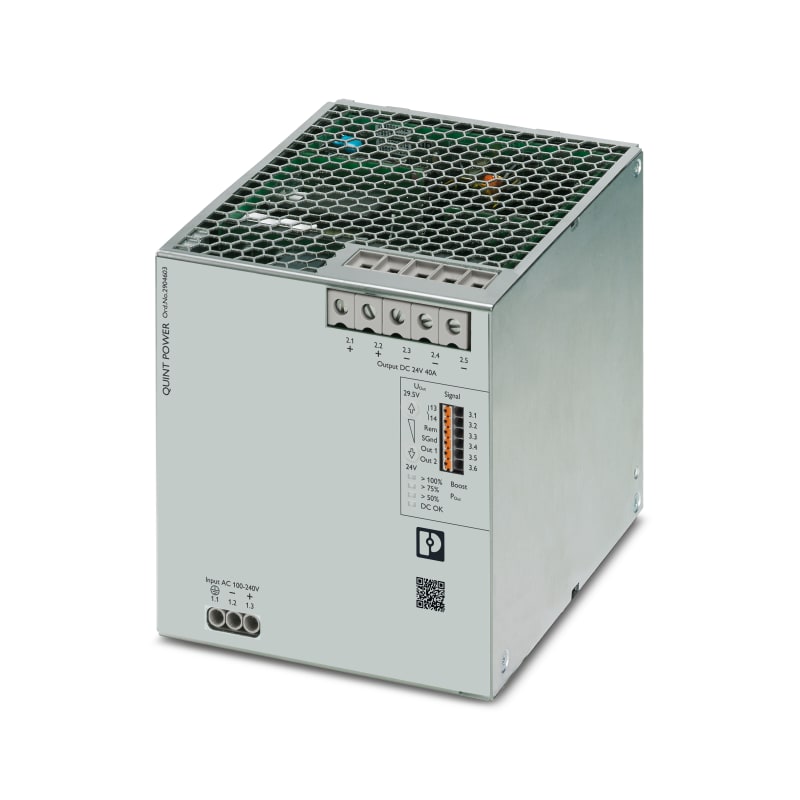

Phoenix Contact QUINT4 Primary-Switched Power Supply, 24 V DC / 40 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4 primary-switched DIN-rail power supply, AC/DC input to a 24 V DC output at 40 A / 960 W, adjustable in the 24-29.5 V range. Screw-connection terminals, IP20 enclosure, 120 x 130 x 140 mm footprint on a top-hat rail. Short-circuit proof, output voltage stabilised and suitable for safety functions. Country of origin Thailand.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/24DC/40
- EAN / GTIN
- 4055626355092
- Sales unit
- pcs
- Voltage
- 24 V DC
- Rated current
- 40 A
- Voltage type (supply voltage)
- AC/DC
- 2nd secondary output voltage
- 24–29.5 V
- 3rd secondary output voltage
- 24–29.5 V
- Max. output current 1
- 60 A
- Max. output current 2
- 45 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 40 A
- Short-circuit-proof
- Yes
- Output voltage stabilized
- Yes
- Power output
- 960 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 130 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 120 mm
- Height
- 130 mm
- Depth
- 140 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626355092
- SAP 1200578006
- Code 82936024
Product Documentation
More from Phoenix Contact
Phoenix Contact
Marking Strip ZB6 LGS 81-90
ZB 6,LGS: 81-90
Phoenix Contact

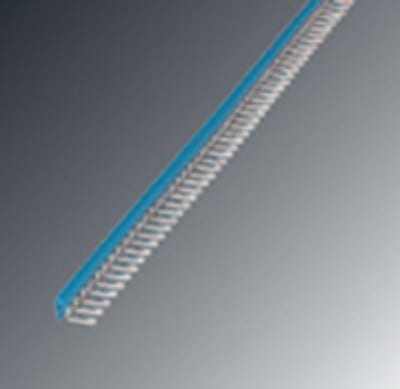

Insertion Bridge (EB 80- DIK BU)
Phoenix Contact

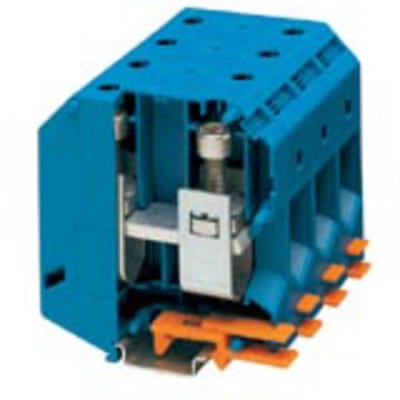

Phoenix Contact UKH 95 BU High-Current Screw Terminal Block, Blue
UKH 95 BU
Phoenix Contact
Active Module (UMK-32 RM/MR-G24/1/PLC)
Phoenix Contact

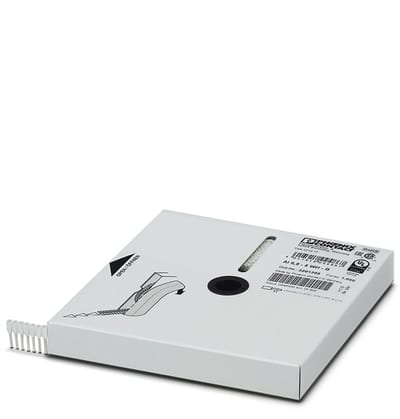

END Ferrule ON Strap 0,5 mm²
AI 0,5 - 8 WH-B
Phoenix Contact

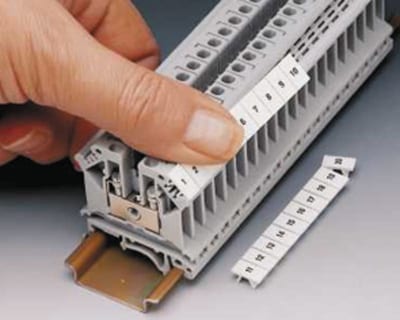

Marking Strip ZB6 LGS 41-50
ZB 6,LGS: 41-50
Phoenix Contact
Screwdriver (SZS 0,6X3,5)
Phoenix Contact
DIN-RAIL Terminal (urtk 6)
URTK 6
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy QUINT4-PS/1AC/24DC/40?
- QUINT4-PS/1AC/24DC/40 can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is QUINT4-PS/1AC/24DC/40.
- What is the HS code for QUINT4-PS/1AC/24DC/40?
- The customs tariff (HS) code for QUINT4-PS/1AC/24DC/40 is 8504.40.
- Who manufactures QUINT4-PS/1AC/24DC/40?
- QUINT4-PS/1AC/24DC/40 is a Phoenix Contact product in the Control & Automation range.
- Is a datasheet available for QUINT4-PS/1AC/24DC/40?
- Yes — the QUINT4-PS/1AC/24DC/40 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for QUINT4-PS/1AC/24DC/40?
- The minimum order quantity is 1.
- Is QUINT4-PS/1AC/24DC/40 available?
- Yes — QUINT4-PS/1AC/24DC/40 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
