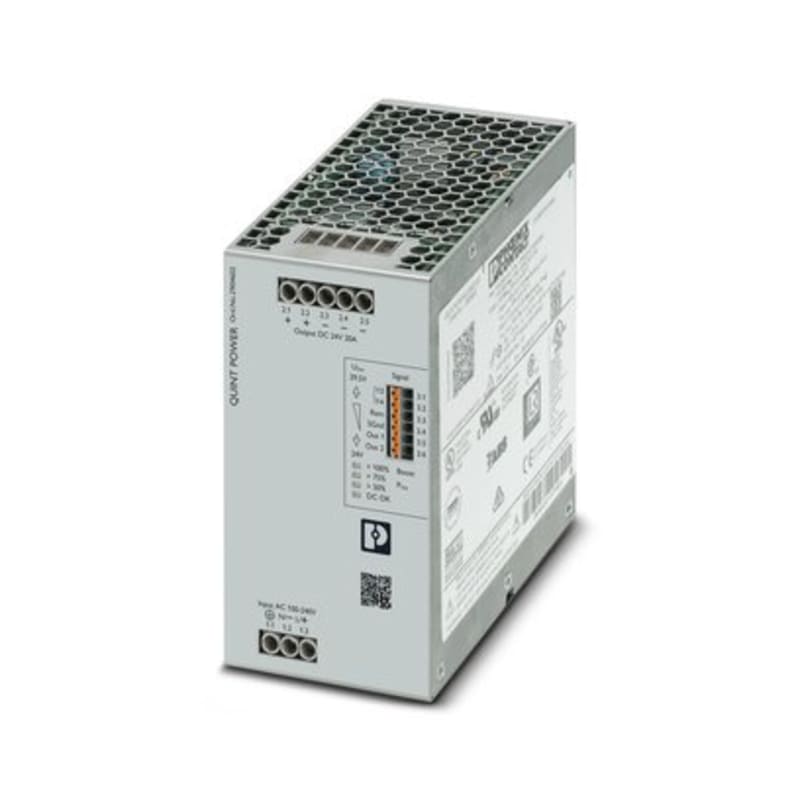

Phoenix Contact QUINT4-PS/1AC/24DC/20 Primary-Switched Power Supply 24 V DC 20 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/1AC/24DC/20 is a primary-switched DIN-rail power supply delivering 24 V DC at 20 A (480 W) from a 100-240 V AC or 110-350 V DC input, with an adjustable output between 24 and 29.5 V. The stabilised output is short-circuit protected, screw-connected and suitable for functional safety applications; the housing is 70 mm wide and IP20. Typical service is control-cabinet 24 V DC supply for PLCs, sensors and field devices in industrial automation.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/24DC/20
- EAN / GTIN
- 4046356985352
- Sales unit
- pcs
- Voltage
- 24 V DC
- Rated current
- 20 A
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24–29.5 V
- 2nd secondary output voltage
- 24–29.5 V
- 3rd secondary output voltage
- 24–29.5 V
- Max. output current 1
- 30 A
- Max. output current 2
- 25 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 20 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Rated supply voltage DC
- 110–350 V
- Output voltage stabilized
- Yes
- Power consumption
- 520 VA
- Power output
- 480 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 122 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 70 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356985352
- SAP 1000771663
- Code 81372254
