Phoenix Contact

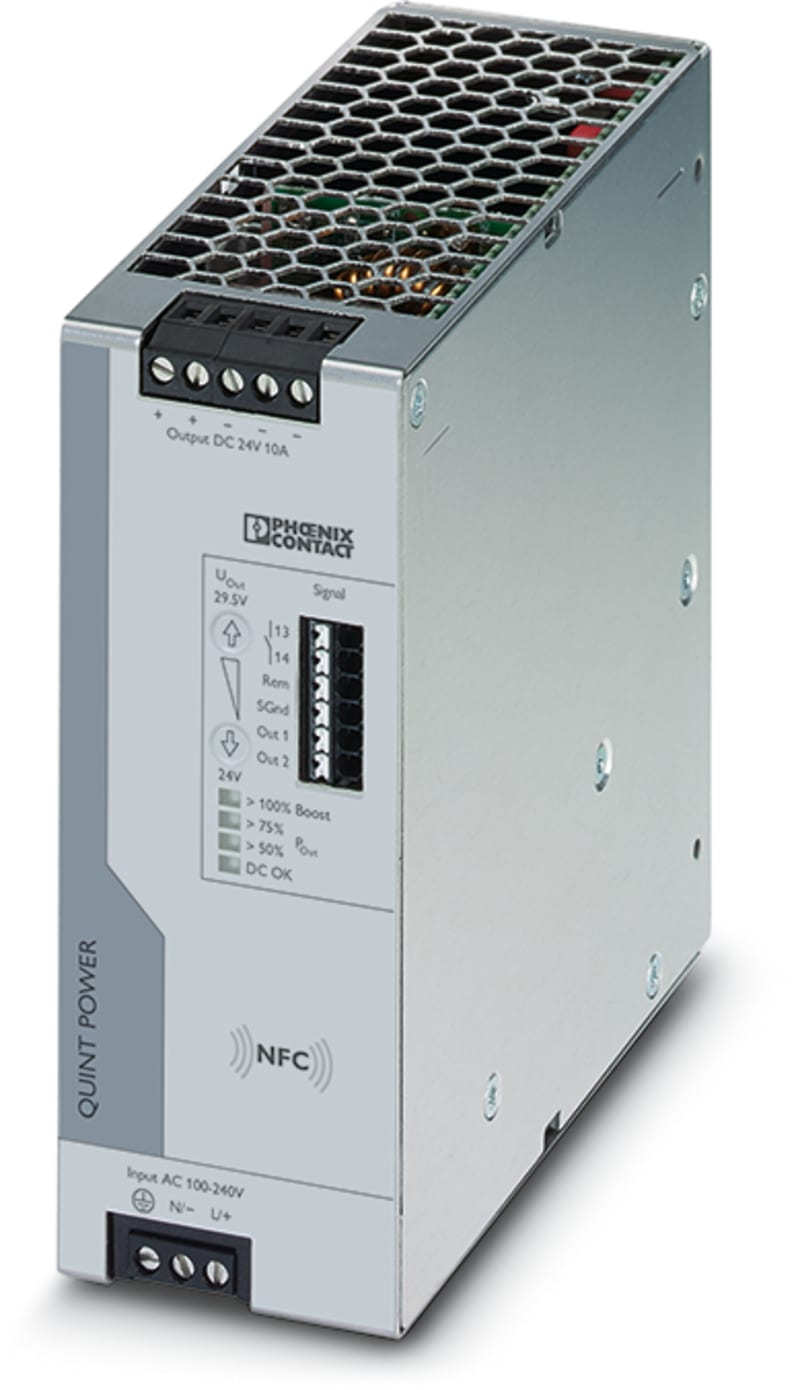

Power supply QUINT4-PS/1AC/24DC/10
Part numberQUINT4-PS/1AC/24DC/10EAN / GTIN4046356985338HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/1AC/24DC/10 QUINT4-PS/1AC/24DC/10, Primary-switched power supply QUINT POWER with utgangskarakteristikk which can velges, SFB Technology.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/24DC/10
- EAN / GTIN
- 4046356985338
- Sales unit
- pcs
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24–29.5 V
- 2nd secondary output voltage
- 24–29.5 V
- 3rd secondary output voltage
- 24–29.5 V
- Max. output current 1
- 20 A
- Max. output current 2
- 12.5 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 10 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Rated supply voltage DC
- 110–350 V
- Output voltage stabilized
- Yes
- Power consumption
- 274 VA
- Power output
- 240 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 122 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 50 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356985338
- SAP 1000771662
- Code 81369232
Product Documentation
Document preview: Power supply QUINT4-PS/1AC/24DC/10 — Specification sheet
More from Phoenix Contact
Phoenix Contact

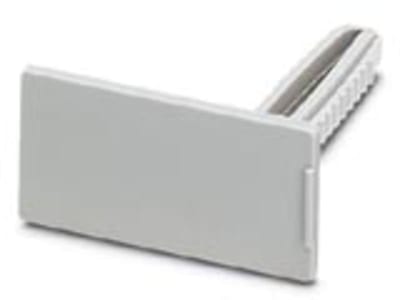

Terminal Strip Marker Carrier (KLM 3)
Phoenix Contact

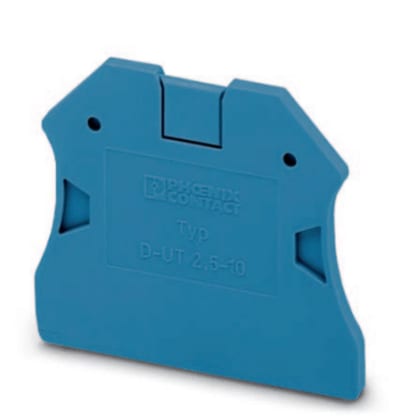

End Cover (D-UT 2,5/10 BU)
Phoenix Contact

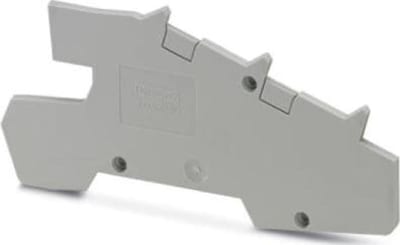

End cap D-PTI/3
Phoenix Contact

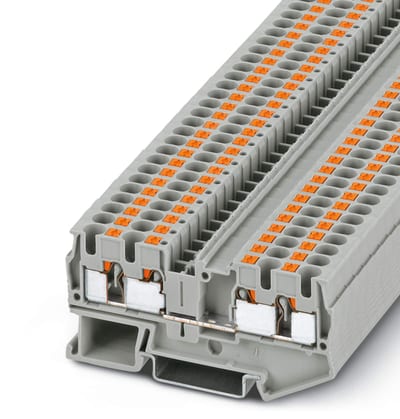

TERMINAL Plug-in 0,2-4 4 Connections (pt 4-Quattro)
PT 4-QUATTRO
Phoenix Contact

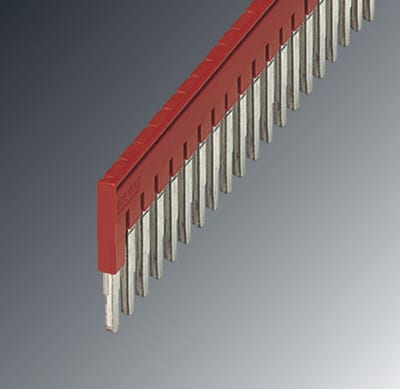

JUMPER LINK FOR 4,0 mm² Terminal 20-Pole
FBS 20-6
Phoenix Contact

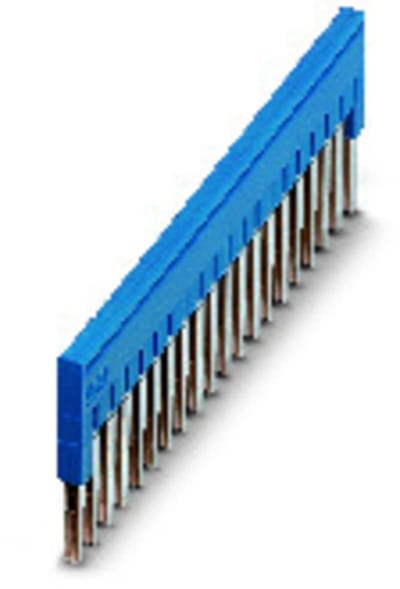

Plugbro (FBS 20-5 BU)
Phoenix Contact

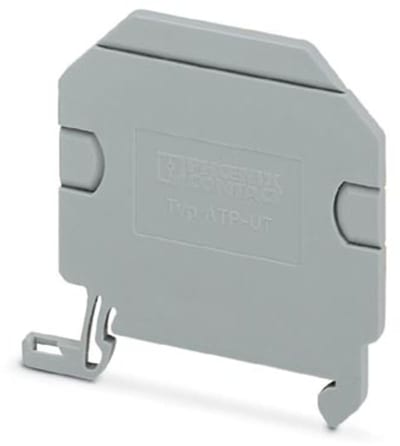

Partition Plate (ATP-UT)
Phoenix Contact

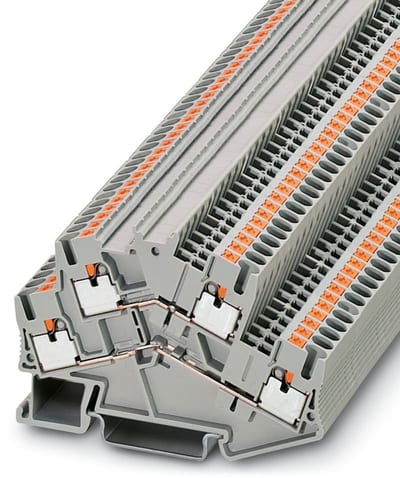

Double-Level Terminal Block (PTTBS 2,5)
