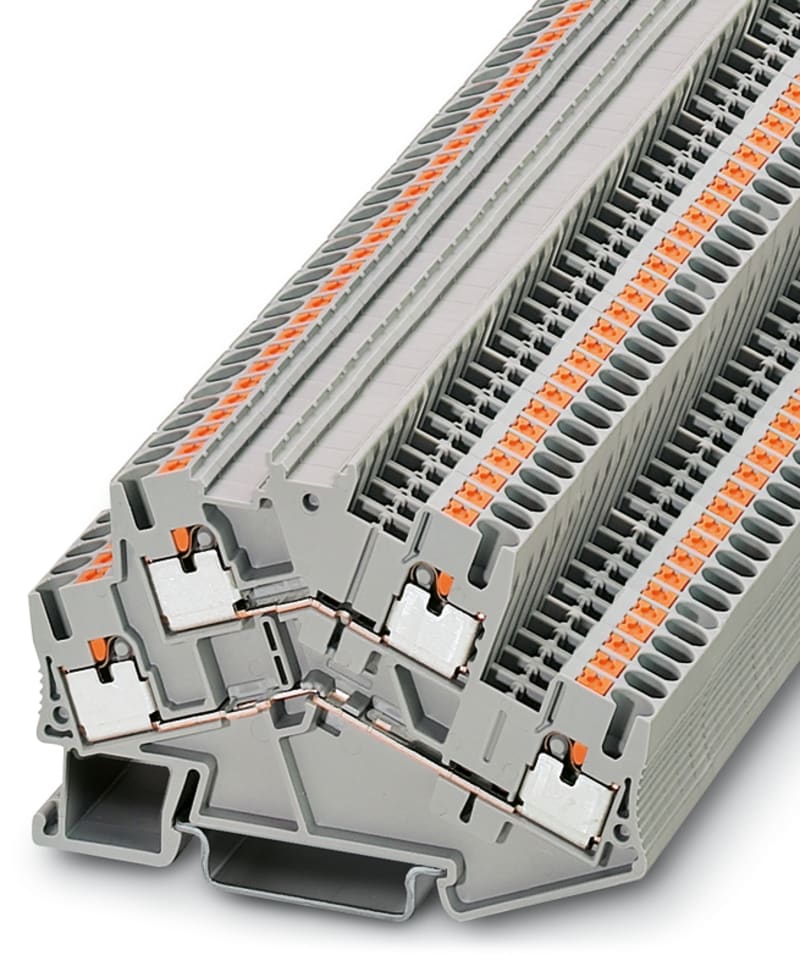

Double-Level Terminal Block (PTTBS 2,5)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PTTBS 2,5.
Technical Specifications
- Manufacturer part number (MPN)
- PTTBS 2,5
- EAN / GTIN
- 4046356330084
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Double-Level Terminal Block
- Manufacturer order number
- 3209604
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.14–4 mm²
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- Rated current In
- 22 A
- Rated voltage
- 500 V
- Connection position
- Inclined
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 78 mm
- Depth
- 55 mm
- Length
- 78 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356330084
- SAP 1000257992
- Code 81144497
Product Documentation
