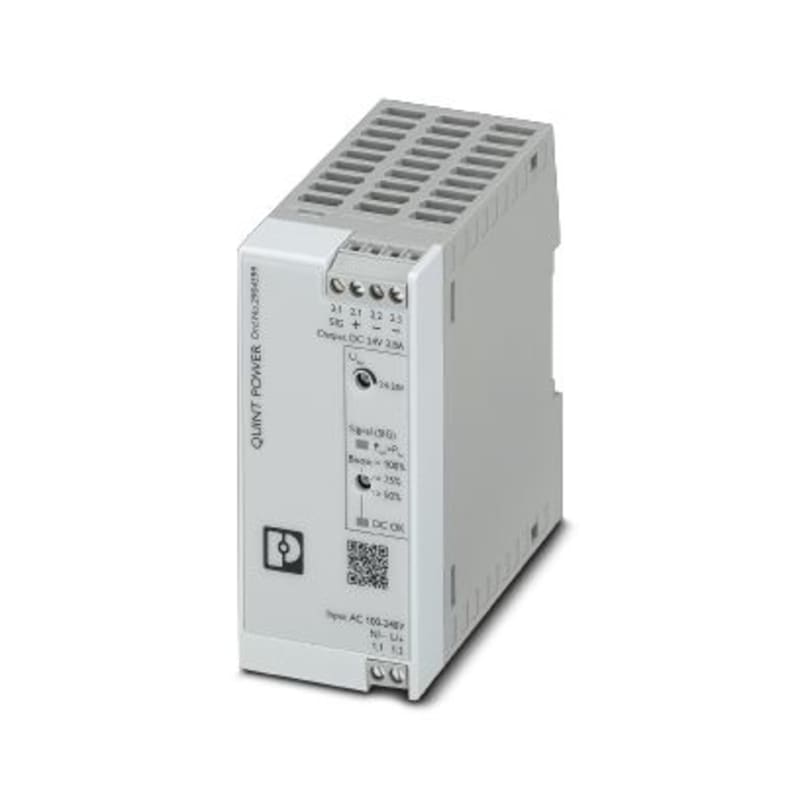

Phoenix Contact QUINT4-PS/1AC/24DC/3.8/SC Primary-Switched Power Supply, 24 VDC / 3.8 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/1AC/24DC/3.8/SC is a primary-switched DIN-rail power supply providing a stabilised, adjustable 24 to 28 VDC output at 3.8 A nominal. Rated output is 90 W with screw connection and IP20 protection in a 45 x 99 x 90 mm housing. The unit is short-circuit-proof and suitable for functional safety applications.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/24DC/3.8/SC
- EAN / GTIN
- 4055626156057
- Sales unit
- pcs
- Voltage
- 24 V DC
- Voltage type (supply voltage)
- AC/DC
- 2nd secondary output voltage
- 24–28 V
- 3rd secondary output voltage
- 24–28 V
- Max. output current 1
- 7 A
- Max. output current 2
- 7 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 3.8 A
- Short-circuit-proof
- Yes
- Output voltage stabilized
- Yes
- Power consumption
- 104 VA
- Power output
- 90 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 45 mm
- Built-in height
- 99 mm
- Direct mounting possible
- No
- Width
- 45 mm
- Height
- 99 mm
- Depth
- 90 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626156057
- SAP 1200681923
- Code 83446791
Product Documentation
