Phoenix Contact

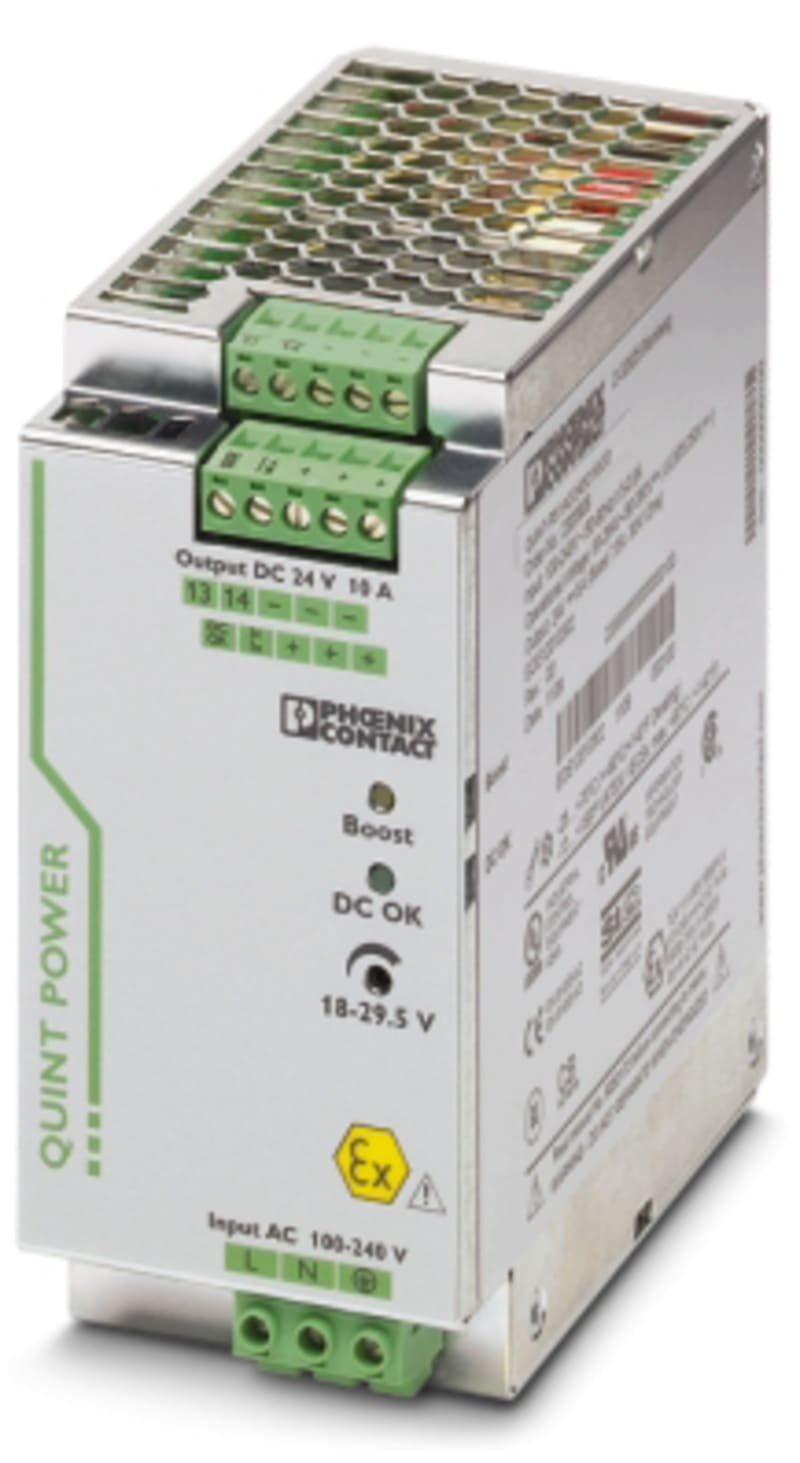

Power Supply 24VDC 10A (quint-PS/1AC/24DC/10/Co)
Part numberQUINT-PS/1AC/24DC/10/COEAN / GTIN4046356520027HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT-PS/1AC/24DC/10/CO QUINT-PS/ 1AC/24DC/10/CO.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/1AC/24DC/10/CO
- EAN / GTIN
- 4046356520027
- Sales unit
- pcs
- Voltage
- 24 V DC
- Rated current
- 10 A
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 18–29.5 V
- 2nd secondary output voltage
- 18 V
- Max. output current 1
- 15 A
- Max. output current 2
- 15 A
- Max. output current 3
- 60 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 10 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Rated supply voltage DC
- 110–350 V
- Output voltage stabilized
- Yes
- Power consumption
- 303 VA
- Power output
- 240 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 3.3
- Built-in width
- 60 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 60 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356520027
- SAP 1000599145
- Code 8144235
Product Documentation
Document preview: Power Supply 24VDC 10A (quint-PS/1AC/24DC/10/Co) — Specification sheet
More from Phoenix Contact
Phoenix Contact
Thermofox Markers (EX24) WH/BK
803940
Phoenix Contact
Del WMS 1266524 Terminal Marking
ZB 6,LGS: 301-310
Phoenix Contact
Single Relay (REL-MR-230AC/21-21/MS)
Phoenix Contact
CABLE TRUNKING, GREY, B 25 MM, H 25 MM
CD 25X25
Phoenix Contact
Inline Terminal (IB IL AI 2/SF-PAC)
Phoenix Contact
Knife-Disconnect Terminal Block (UDMTK 5-P/P BU)
Phoenix Contact
Marker for Terminal Blocks (UCT-TM 16)
Phoenix Contact
RJ45 Connector (CUC-IND-C1ZNI-S/R4IE8)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy QUINT-PS/1AC/24DC/10/CO?
- QUINT-PS/1AC/24DC/10/CO can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is QUINT-PS/1AC/24DC/10/CO.
- What is the HS code for QUINT-PS/1AC/24DC/10/CO?
- The customs tariff (HS) code for QUINT-PS/1AC/24DC/10/CO is 8504.40.
- Who manufactures QUINT-PS/1AC/24DC/10/CO?
- QUINT-PS/1AC/24DC/10/CO is a Phoenix Contact product in the Control & Automation range.
- Is a datasheet available for QUINT-PS/1AC/24DC/10/CO?
- Yes — the QUINT-PS/1AC/24DC/10/CO datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for QUINT-PS/1AC/24DC/10/CO?
- The minimum order quantity is 1.
- Is QUINT-PS/1AC/24DC/10/CO available?
- Yes — QUINT-PS/1AC/24DC/10/CO is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
