Phoenix Contact

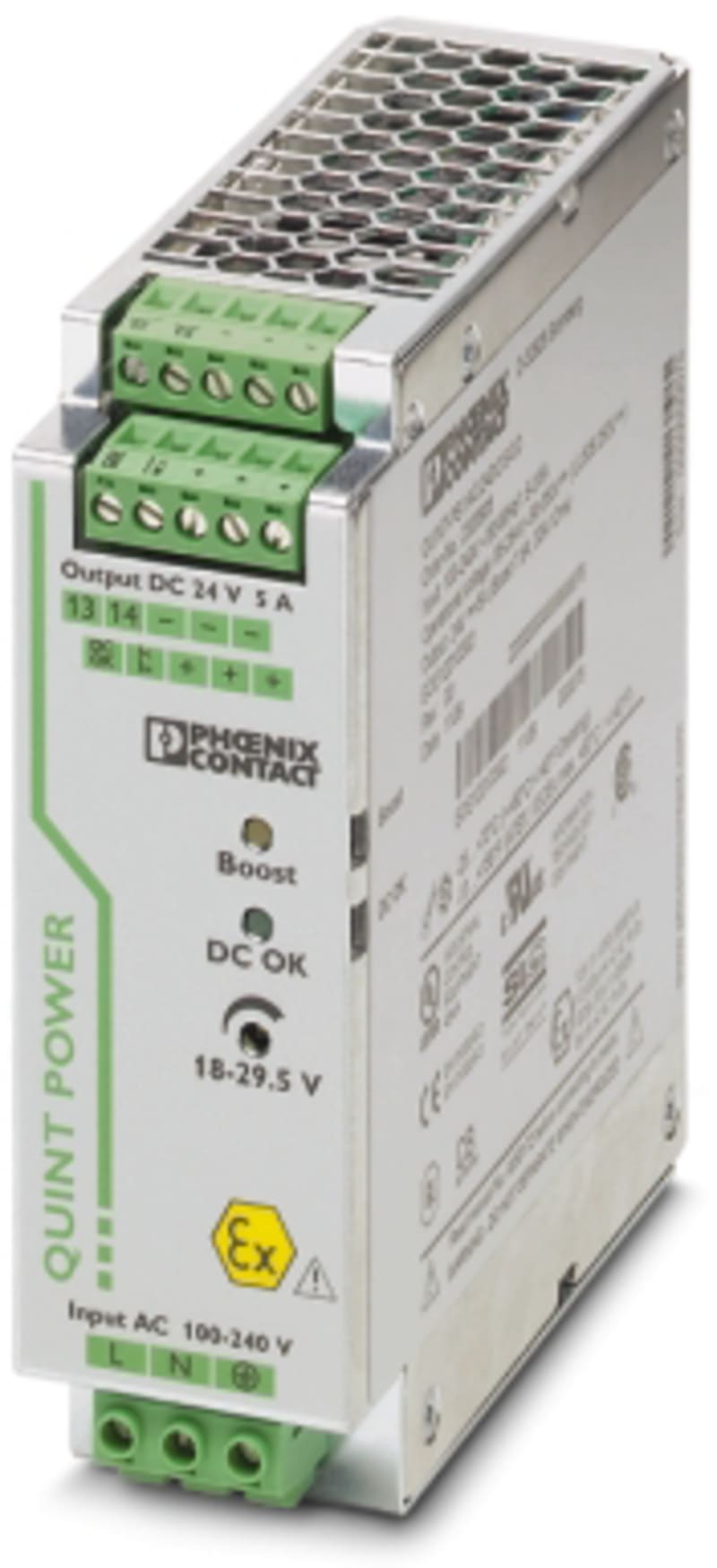

Power Supply 24VDC 5A (quint-PS/1AC/24DC/ 5/Co)
Part numberQUINT-PS/1AC/24DC/ 5/COEAN / GTIN4046356520010HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
PHOENIX CONTACT DC-POWER SUPPLY Type: QUINT-PS/1AC/24DC/ 5/CO.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/1AC/24DC/ 5/CO
- EAN / GTIN
- 4046356520010
- Sales unit
- pcs
- Voltage
- 24 V DC
- Rated current
- 5 A
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 18–29.5 V
- 2nd secondary output voltage
- 18 V
- Max. output current 1
- 7.5 A
- Max. output current 2
- 7.5 A
- Max. output current 3
- 30 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Rated supply voltage DC
- 90–430 V
- Output voltage stabilized
- Yes
- Power consumption
- 141 VA
- Power output
- 120 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 2.2
- Built-in width
- 40 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 40 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356520010
- SAP 1000658590
- Code 8656837
Product Documentation
Document preview: Power Supply 24VDC 5A (quint-PS/1AC/24DC/ 5/Co) — Specification sheet
More from Phoenix Contact
Phoenix Contact
Phoenix Contact TRIO-UPS-2G/1AC/24DC/5
Phoenix Contact

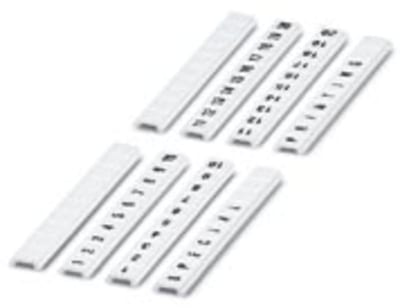

Marking Strip ZBF 5, LGS 141-150
ZBF 5,LGS: 141-150
Phoenix Contact

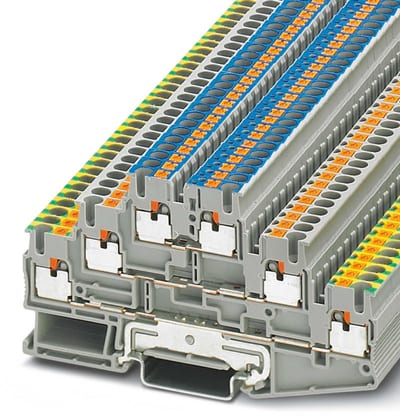

Ground Modular Terminal Block (PT 2,5-PE/L/N)
Phoenix Contact
Redundancy Module (QUINT-DIODE/12-24DC/2X20/1X40)
Phoenix Contact
Printed Circuit Board Connector (LPC 6/ 3-ST-7,62)
Phoenix Contact
Network Isolator (FL ISOLATOR 1000-RJ/RJ)
Phoenix Contact
Feed-Through Terminal PT 2,5/1P
Phoenix Contact
Cable Marker Carrier
PAB-KTL 23
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
