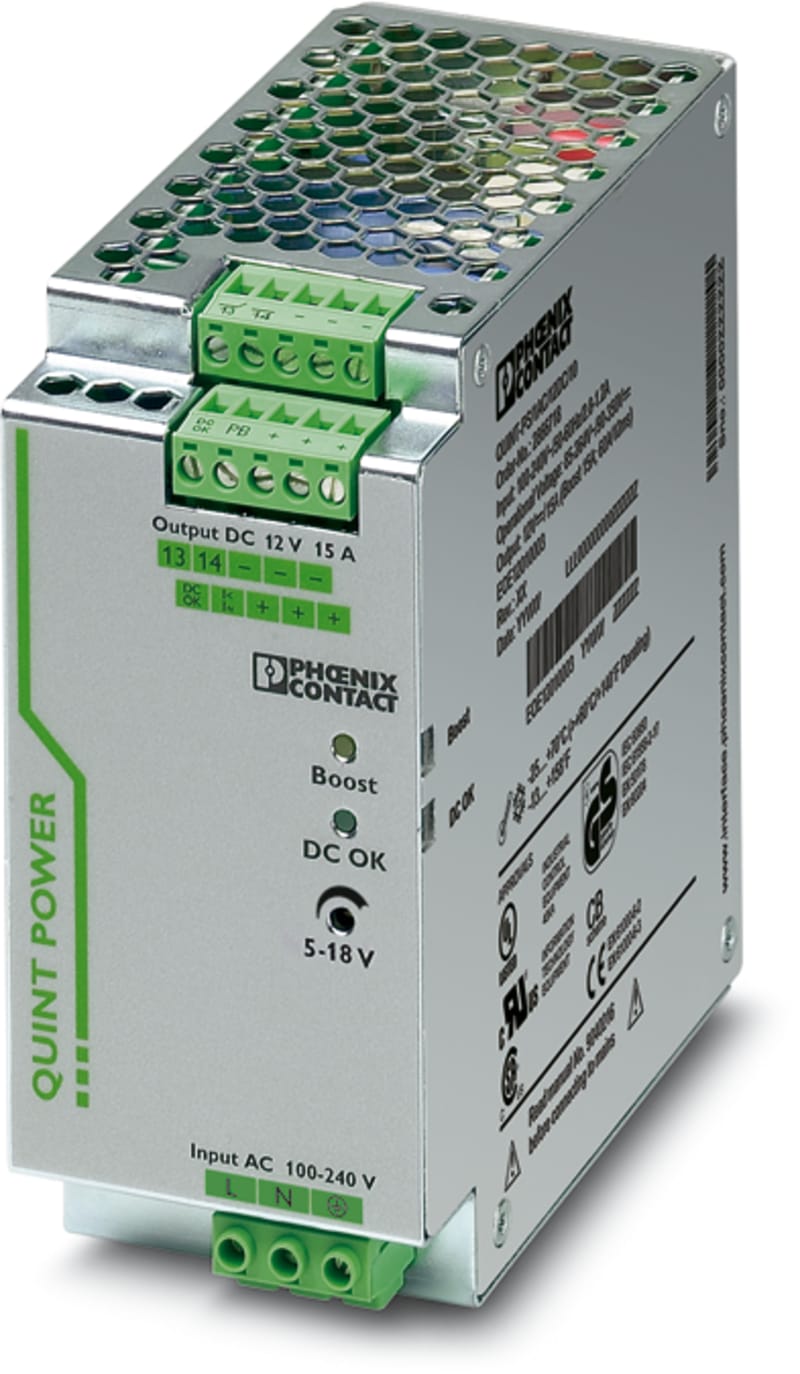

Power Supply Unit (QUINT-PS/1AC/12DC/15)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT-PS/1AC/12DC/15 QUINT-PS/1AC/12DC/15.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/1AC/12DC/15
- EAN / GTIN
- 4046356307888
- Sales unit
- pcs
- Product type
- Power Supply Unit
- Manufacturer order number
- 2866718
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 5–18 V
- 2nd secondary output voltage
- 5 V
- Max. output current 1
- 16 A
- Max. output current 2
- 16 A
- Max. output current 3
- 60 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 12 V
- Nominal value output current 1
- 15 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Rated supply voltage DC
- 90–350 V
- Output voltage stabilized
- Yes
- Power consumption
- 210 VA
- Power output
- 180 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 3.3
- Built-in width
- 60 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 60 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356307888
- SAP 1000283622
- Code 827622
Product Documentation
More from Phoenix Contact
Phoenix Contact
Phoenix Contact PLC-ATP BK Separator Plate for PLC Relay Modules
Phoenix Contact

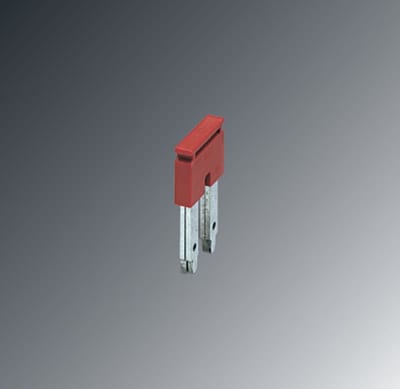

JUMPER LINK FOR 16,0 mm² Terminal 2-Pole
FBS 2-12
Phoenix Contact

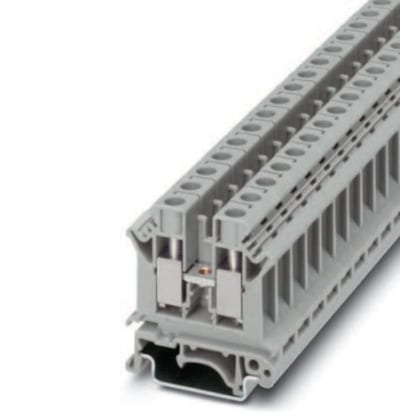

Feed-Through Terminal Block (UK 10 N)
Phoenix Contact

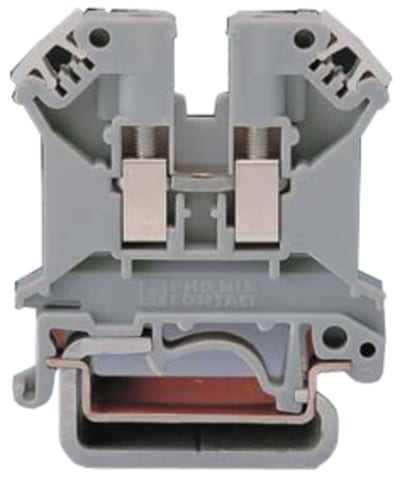

Feed-Through Terminal Block (UK 5 N)
UK 5 N
Phoenix Contact
Power Supply 24VDC 100W
UNO-PS/1AC/24DC/100W
Phoenix Contact

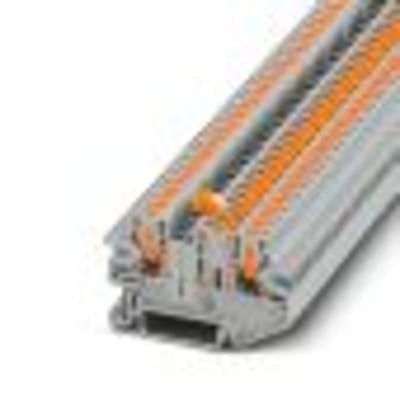

Disconnect Terminal PLUG-IN. 0,14-4 MM2 (ptv 2,5-Mt)
PTV 2,5-MT
Phoenix Contact

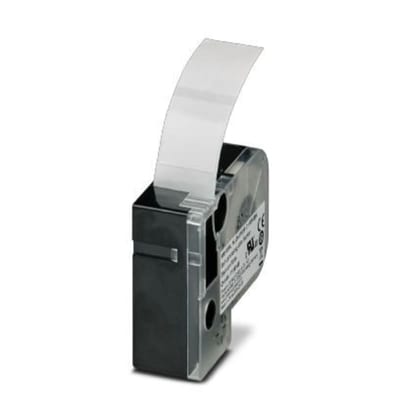

CABLE MARKERS, ROLL, White/BLACK, 93 PCS (mm-WML 14 (24X19)r C1 WH/Bk)
MM-WML 14 (24X19)R C1 WH/BK
Phoenix Contact

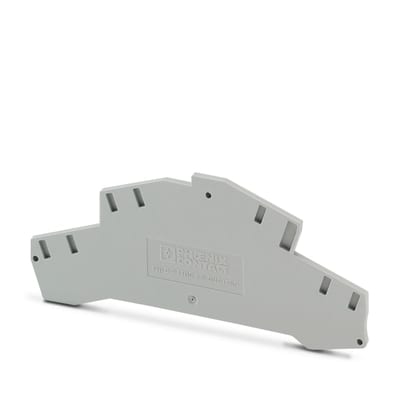

End Cover (D-PTTBS 2,5-Quattro)
