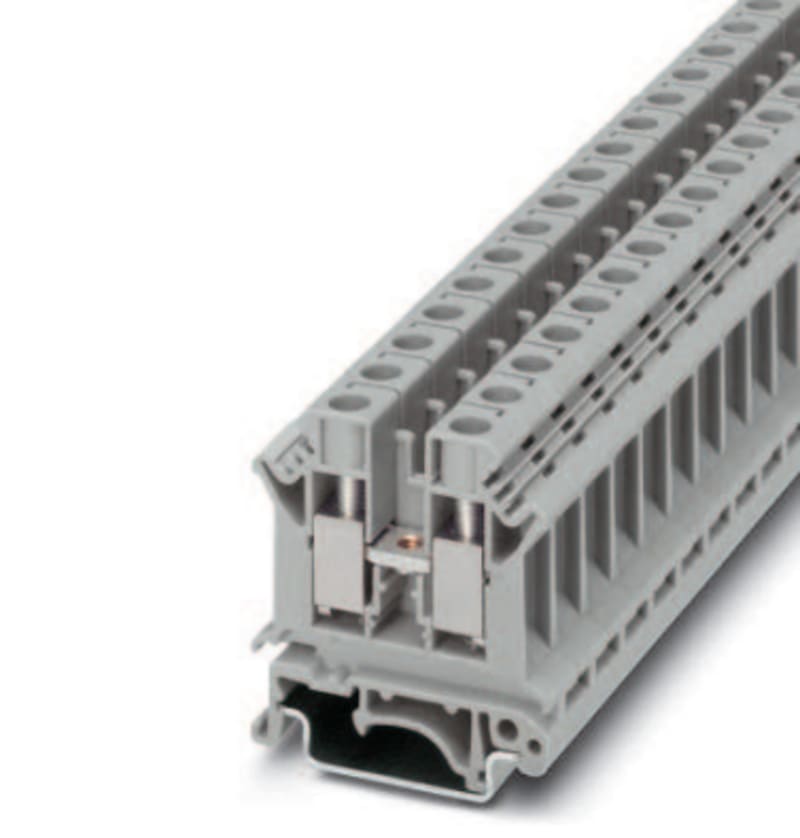

Feed-Through Terminal Block (UK 10 N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UK 10 N DIN-rail terminal Screw 0,5-10.
Technical Specifications
- Manufacturer part number (MPN)
- UK 10 N
- EAN / GTIN
- 4017918091019
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Feed-Through Terminal Block
- Manufacturer order number
- 3005073
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.5–16 mm²
- Connectable conductor cross section multi-wired
- 0.5–4 mm²
- Rated current In
- 57 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–110 °C
- Width
- 10.2 mm
- Width/grid dimension
- 10.2 mm
- Height
- 42.5 mm
- Depth
- 47.3 mm
- Length
- 42.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
