Phoenix Contact

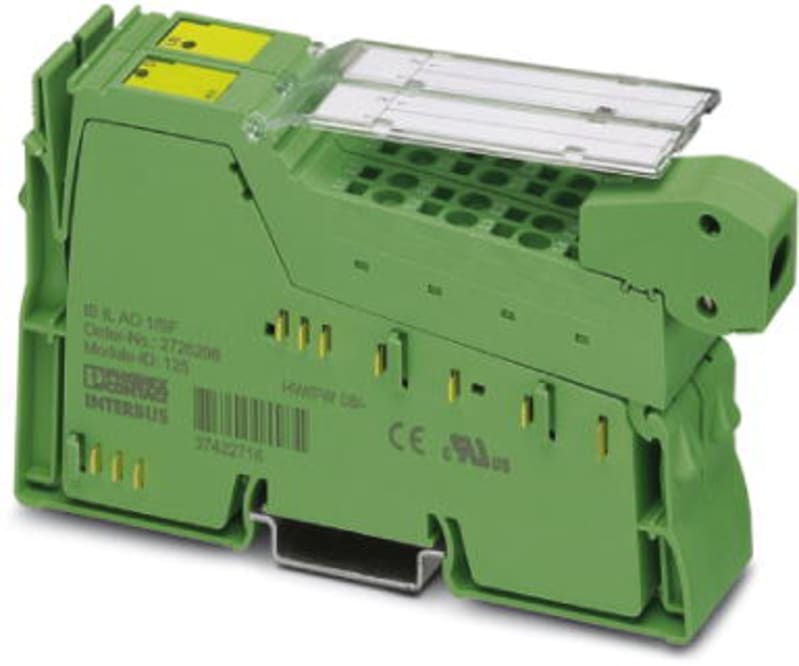

Inline Terminal (IB IL AO 1/SF-PAC)
Part numberIB IL AO 1/SF-PACEAN / GTIN4017918894252HS code8538.90
Control & Automation
PLCs & Logic Relays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact IB IL AO 1/SF-PAC Analogutgangsmodul.
Technical Specifications
- Manufacturer part number (MPN)
- IB IL AO 1/SF-PAC
- EAN / GTIN
- 4017918894252
- Sales unit
- pcs
- Product type
- Inline Terminal
- Manufacturer order number
- 2861315
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 19.2–30 V
- Voltage type (supply voltage)
- DC
- Input, current
- No
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- No
- Output, current
- Yes
- Output, voltage
- Yes
- Output signal configurable
- Yes
- Resolution of the analogue outputs
- 16 Bit
- Number of analogue outputs
- 1
- Analogue inputs configurable
- No
- Analogue outputs configurable
- Yes
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- Yes
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 24.3 mm
- Height
- 136.044 mm
- Depth
- 70.51 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4017918894252
- SAP 1000263150
- Code 8215002
Product Documentation
Document preview: Inline Terminal (IB IL AO 1/SF-PAC) — Specification sheet
More from Phoenix Contact
Phoenix Contact
End Cover (D-ST 4-Twin)
D-ST 4-TWIN
Phoenix Contact
Phoenix Contact QUINT4-PS Power Supply 3AC/24DC/40 A
QUINT4-PS/3AC/24DC/40
Phoenix Contact
Marking Tags 20X7 (eml (20X7)r Ye)
EML (20X7)R YE
Phoenix Contact
Solid-State Relay Module (PLC-OSC-230UC/ 48DC/100)
Phoenix Contact
Marking Strip ZBF 5, LGS 81-90
ZBF 5,LGS: 81-90
Phoenix Contact
JUMPER LINK FOR 16 mm² KL 10-Pole
FBI 10-12
Phoenix Contact
End Cover (D-UTTB 2,5/4 2P)
Phoenix Contact
Type 2 Surge Protection Plug, 1-Pole (VALMS400ST)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
