Product Description

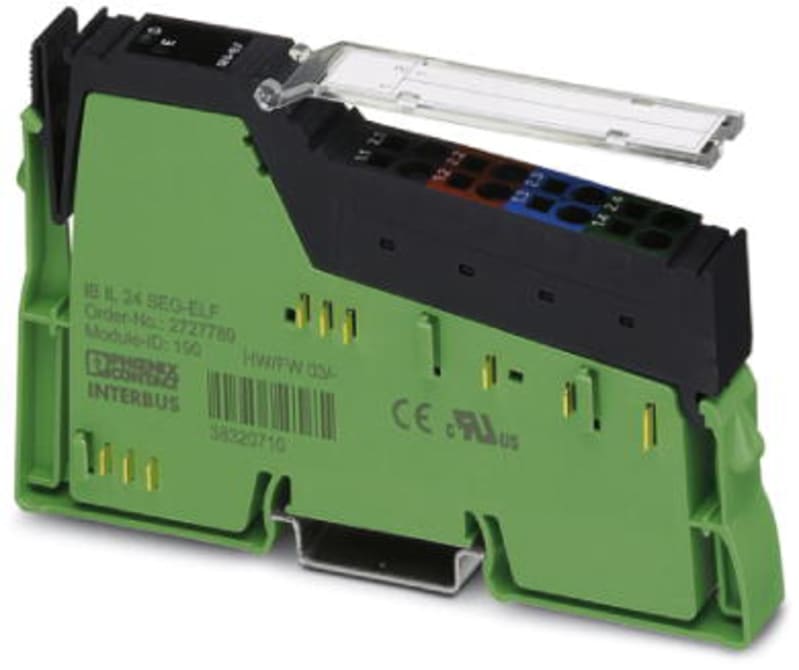

Phoenix Contact IB IL 24 SEG-ELF-PAC Inline segmentmodul, complete with accessories (connection plugs and marking field), 24 V DC, electronic fuse.
Technical Specifications
- Manufacturer part number (MPN)
- IB IL 24 SEG-ELF-PAC
- EAN / GTIN
- 4017918894344
- HS code
- 8536.90
- Sales unit
- pcs
- Product type
- Inline Function Terminal
- Manufacturer order number
- 2861409
- Supply voltage AC 50 Hz
- 24 V
- Supply voltage DC
- 19.2–30 V
- Voltage type (supply voltage)
- DC
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- With potential separation
- Yes
- With power supply module
- No
- Suitable as segment module
- Yes
- Remote module
- No
- Fieldbus connection over separate bus coupler possible
- Yes
- Bus diagnosis possible
- No
- Suitable for rail mounting
- No
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 12.2 mm
- Height
- 119.8 mm
- Depth
- 71.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918894344
- SAP 1000502198
- Code 8323607
