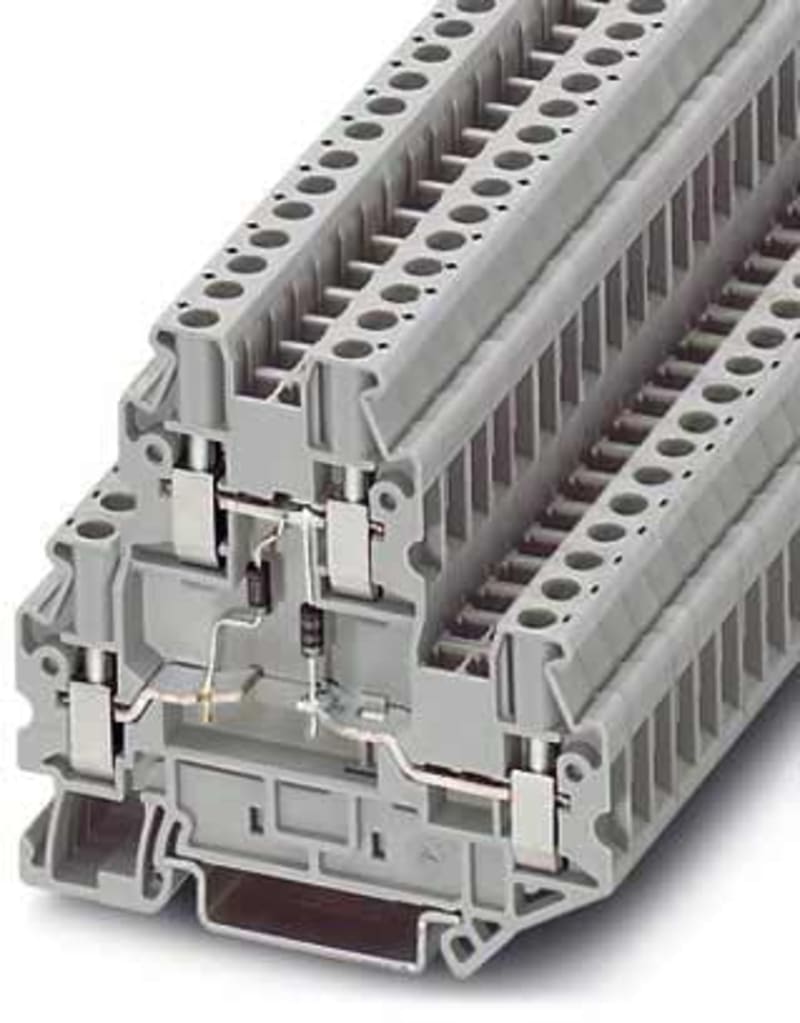

Phoenix Contact UTTB 2,5 Screw Terminal Block, 2-Level 0.14–2.5 mm², Diode

Phoenix Contact UTTB 2,5-2DIOOULOUR is a two-level screw-connection terminal block with integrated diode component, accepting 0.14–4 mm² solid or 0.14–1.5 mm² stranded conductors. Rated at 24 A / 500 V with an operating range of -60 to 105 °C, it mounts on 35 mm DIN top-hat rail. The grey thermoplastic housing measures 7.72 x 69.9 x 64.35 mm on a 5.2 mm grid; supplied in packs of 50 and requires a closing plate. Country of origin: Poland.

Manufacturer part number (MPN)

UTTB 2,5-2DIOOULOUR

EAN / GTIN

4017918997212

Sales unit

pcs

Package quantity

50 pcs

Explosion-tested version 'Ex e'

No

Connectable conductor cross section solid-core

0.14–4 mm²

Connectable conductor cross section multi-wired

0.14–1.5 mm²

Rated current In

24 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

2

Number of clamp positions per level

2

Internally connected stages

No

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-60–105 °C

Width

7.72 mm

Width/grid dimension

5.2 mm

Height

69.9 mm

Depth

64.35 mm

Length

69.9 mm

Closing plate required

Yes

Colour

Grey

Type of component

Diode

Country of origin

Poland

HS Code

8536.90

• EAN 4017918997212
• SAP 1000079144
• Code 8768463
