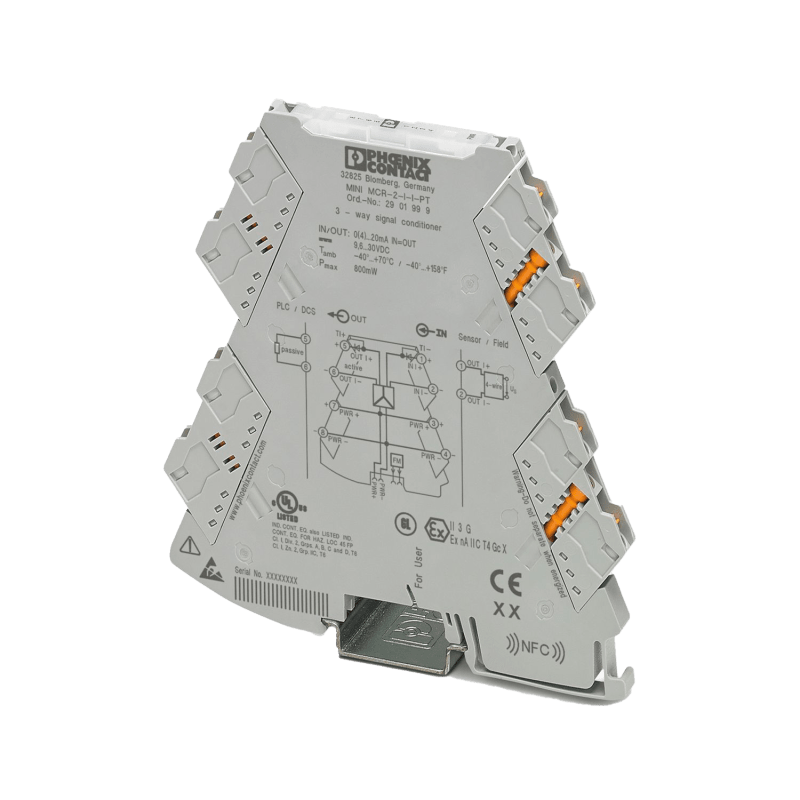

Skilleforsterkere - MINI MCR-2-IN-IN-PT
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact MINI MCR-2-I-I-PT 3-way skilleforsterker, Input Signal: 0(4) mA. 20 mA, output signal: 0(4) mA. 20 mA, push-in-tilkoblingsteknikk.
Technical Specifications
- Manufacturer part number (MPN)
- MINI MCR-2-I-I-PT
- EAN / GTIN
- 4046356649506
- Sales unit
- pcs
- Product type
- Signal Conditioner
- Manufacturer order number
- 2901999
- Rated supply voltage DC
- 9.6–30 V
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of output ranges 0 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- Malfunction message output
- Yes
- Inherently safe according to EN 60947-5-6 NAMUR
- No
- Galvanic separation between inputs
- No
- Galvanic separation between input and output
- No
- Galvanic separation between output to output
- No
- SIL according to IEC 61508
- None
- Height
- 109.81 mm
- Width
- 6.2 mm
- Depth
- 119.2 mm
- Power consumption
- 0.8 W
- Load
- 600 Ohm
- Operating temperature
- -40–70 °C
- Temperature drift
- 0.01 %/K
- Construction type of device
- Built-in device
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4046356649506
- SAP 1000665147
- Code 8512723
Product Documentation
More from Phoenix Contact
Phoenix Contact
Safety Relay (PSR-SCP- 24UC/ESAM4/8X1/1X2)
Phoenix Contact

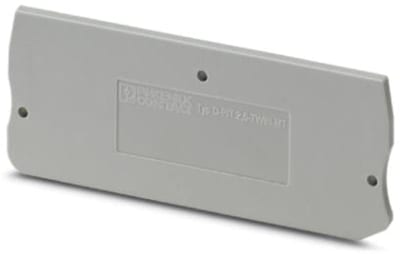

End Cover (D-PT 2,5-TWIN-MT)
Phoenix Contact

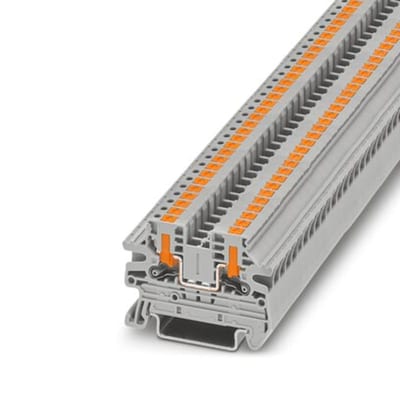

Modular Terminal Block
PTV 2,5
Phoenix Contact

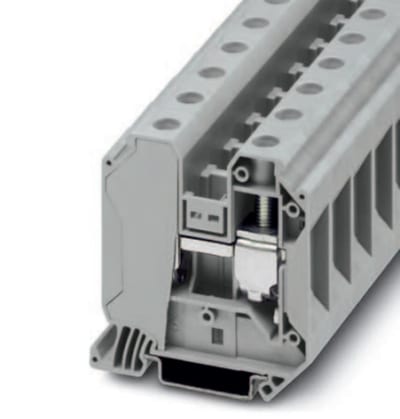

Phoenix Contact UT 35 Screw Terminal Block 1.5-35 mm²
Phoenix Contact

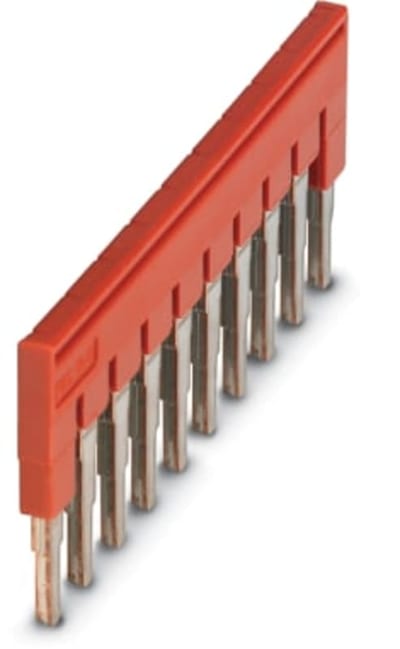

JUMPER LINK FOR 4,0 mm² Terminal 10-Pole
FBS 10-6
Phoenix Contact

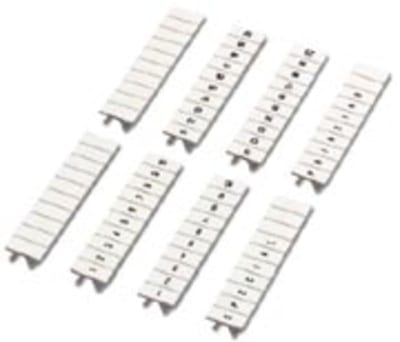

Marking Strip ZB 5,QR: 11-20.
ZB5QR1120
Phoenix Contact

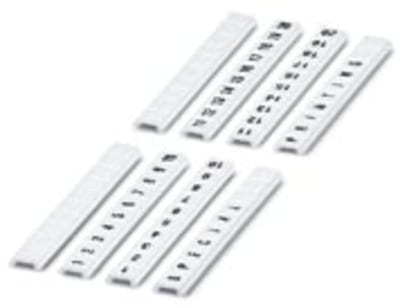

Marking Strip ZBF 2,5,LGS: 11-20
ZBF 5,LGS:FORTL.ZAHLEN 11-20
Phoenix Contact

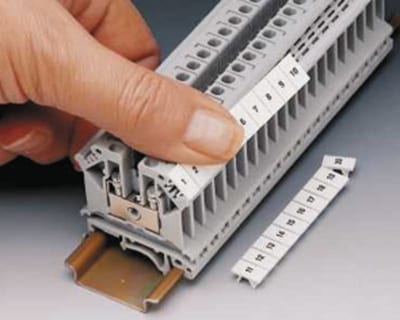

Marking Strip ZB 5 LGS 41-50
