Phoenix Contact

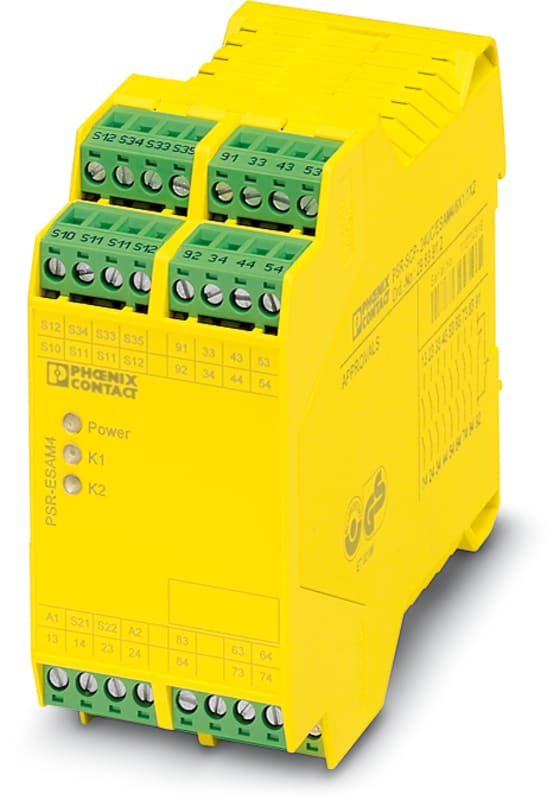

Safety Relay (PSR-SCP- 24UC/ESAM4/8X1/1X2)
Part numberPSR-SCP- 24UC/ESAM4/8X1/1X2EAN / GTIN4017918899707HS code8536.90
Safety & Detection
Safety Relays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PSR-SCP- 24UC/ESAM4/8X1/1X2 Safety Relay 1-2 Channels.
Technical Specifications
- Manufacturer part number (MPN)
- PSR-SCP- 24UC/ESAM4/8X1/1X2
- EAN / GTIN
- 4017918899707
- HS code
- 8536.90
- Sales unit
- pcs
- Product type
- Safety Relay
- Manufacturer order number
- 2963912
- Model
- Basic device
- Suitable for monitoring of position switches
- Yes
- Suitable for monitoring of emergency-stop circuits
- Yes
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of magnetic switches
- Yes
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- With detachable clamps
- Yes
- With start input
- No
- With muting function
- No
- With feedback circuit
- Yes
- Release-delay
- 0.12–0.2 s
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- No
- Width
- 45 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918899707
- SAP 1000076291
- Code 8567161
Product Documentation
Document preview: Safety Relay (PSR-SCP- 24UC/ESAM4/8X1/1X2) — Specification sheet
