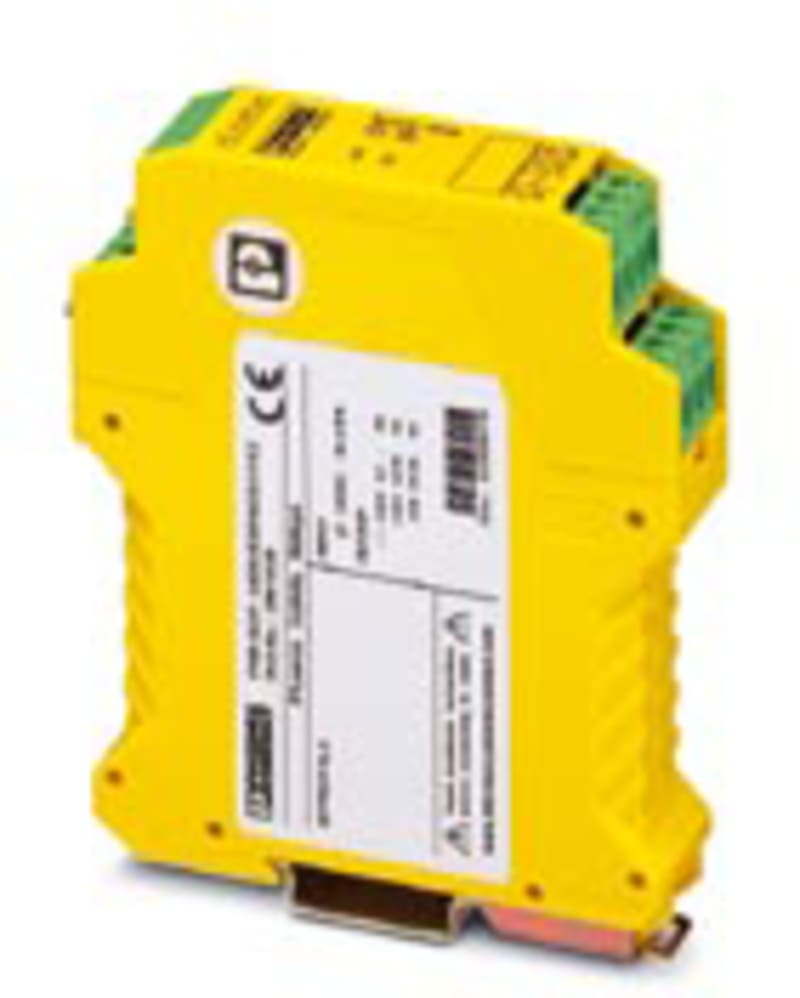

Safety Relay (PSR-SCP- 24DC/ESP4/2X1/1X2)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PSR-SCP- 24DC/ESP4/2X1/1X2 Safety Relay for SIL 3 high- and low-demand.
Technical Specifications
- Manufacturer part number (MPN)
- PSR-SCP- 24DC/ESP4/2X1/1X2
- EAN / GTIN
- 4017918911065
- Sales unit
- pcs
- Product type
- Safety Relay
- Manufacturer order number
- 2981020
- Model
- Basic device
- Suitable for monitoring of position switches
- Yes
- Suitable for monitoring of emergency-stop circuits
- Yes
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of magnetic switches
- Yes
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- With detachable clamps
- Yes
- With start input
- No
- With muting function
- No
- With feedback circuit
- Yes
- Release-delay
- 0.06 s
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- No
- Width
- 22.5 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4017918911065
- SAP 1000257799
- Code 81144421
Product Documentation
More from Phoenix Contact
Phoenix Contact
END Ferrule ON Strap 0,75 mm² (ai 0,75- 8 WH-B)
AI 0,75- 8 WH-B
Phoenix Contact
Media Module (FL SFP FX)
Phoenix Contact
Earthing Terminal block ST 2,5-QUATTRO-PE
Phoenix Contact
Connection Terminal Block (AKG 35 GNYE)
Phoenix Contact
Signal Duplicator (MINI MCR-SL-UI-2I-NC)
Phoenix Contact
Knife-Disconnect Terminal Block (PT 4-Mt)
PT 4-MT
Phoenix Contact
Phoenix Contact QUINT4-PS/1AC/24DC/20 Primary-Switched Power Supply 24 V DC 20 A
Phoenix Contact
Knife-Disconnect Terminal Block (UT 2,5-Mt BU)
UT 2,5-MT BU
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PSR-SCP- 24DC/ESP4/2X1/1X2?
- PSR-SCP- 24DC/ESP4/2X1/1X2 can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is PSR-SCP- 24DC/ESP4/2X1/1X2.
- What is the HS code for PSR-SCP- 24DC/ESP4/2X1/1X2?
- The customs tariff (HS) code for PSR-SCP- 24DC/ESP4/2X1/1X2 is 8537.10.
- Who manufactures PSR-SCP- 24DC/ESP4/2X1/1X2?
- PSR-SCP- 24DC/ESP4/2X1/1X2 is a Phoenix Contact product in the Safety & Detection range.
- Is a datasheet available for PSR-SCP- 24DC/ESP4/2X1/1X2?
- Yes — the PSR-SCP- 24DC/ESP4/2X1/1X2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PSR-SCP- 24DC/ESP4/2X1/1X2?
- The minimum order quantity is 1.
- Is PSR-SCP- 24DC/ESP4/2X1/1X2 available?
- Yes — PSR-SCP- 24DC/ESP4/2X1/1X2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
