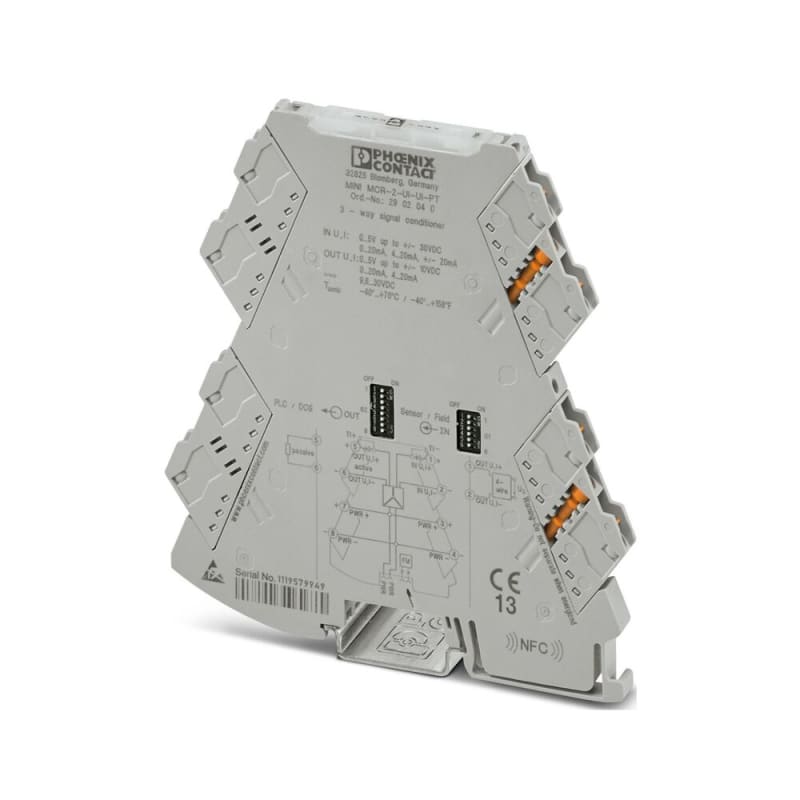

Signal Conditioner (MINI MCR-2-UI-UI-PT)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact MINI MCR-2-UI-UI-PT 3-way skilleforsterker.
Technical Specifications
- Manufacturer part number (MPN)
- MINI MCR-2-UI-UI-PT
- EAN / GTIN
- 4046356652063
- Sales unit
- pcs
- Product type
- Signal Conditioner
- Manufacturer order number
- 2902040
- Rated supply voltage DC
- 9.6–30 V
- Number of input ranges -5 V ... +5 V
- 1
- Number of input ranges -10 V ... +10 V
- 1
- Number of input ranges -20 V ... +20 V
- 1
- Number of input ranges 0 V ... 5 V
- 1
- Number of input ranges 0 V ... 10 V
- 1
- Number of input ranges 0 V ... 20 V
- 1
- Number of input ranges 0 V ... 24 V
- 1
- Number of input ranges 0 V ... 30 V
- 1
- Number of input ranges 1 V ... 5 V
- 1
- Number of input ranges 2 V ... 10 V
- 1
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of input ranges -20 mA ... +20 mA
- 1
- Number of output ranges -5 V ... +5 V
- 1
- Number of output ranges -10 V ... +10 V
- 1
- Number of output ranges 0 V ... 5 V
- 1
- Number of output ranges 0 V ... 10 V
- 1
- Number of output ranges 1 V ... 5 V
- 1
- Number of output ranges 2 V ... 10 V
- 1
- Number of output ranges 0 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- Malfunction message output
- Yes
- Inherently safe according to EN 60947-5-6 NAMUR
- No
- Galvanic separation between inputs
- No
- Galvanic separation between input and output
- Yes
- Galvanic separation between output to output
- No
- SIL according to IEC 61508
- None
- Height
- 109.81 mm
- Width
- 6.2 mm
- Depth
- 119.2 mm
- Power consumption
- 0.8 W
- Load
- 600–10000 Ohm
- Operating temperature
- -40–70 °C
- Temperature drift
- 0.01 %/K
- Construction type of device
- Built-in device
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4046356652063
- SAP 1000665165
- Code 8359943
