Phoenix Contact Type 1+2 Special Combined Lightning Current and Surge Arrester, Plug-In
Pricing
Request a quote
We reply within 24 hours
Product Description

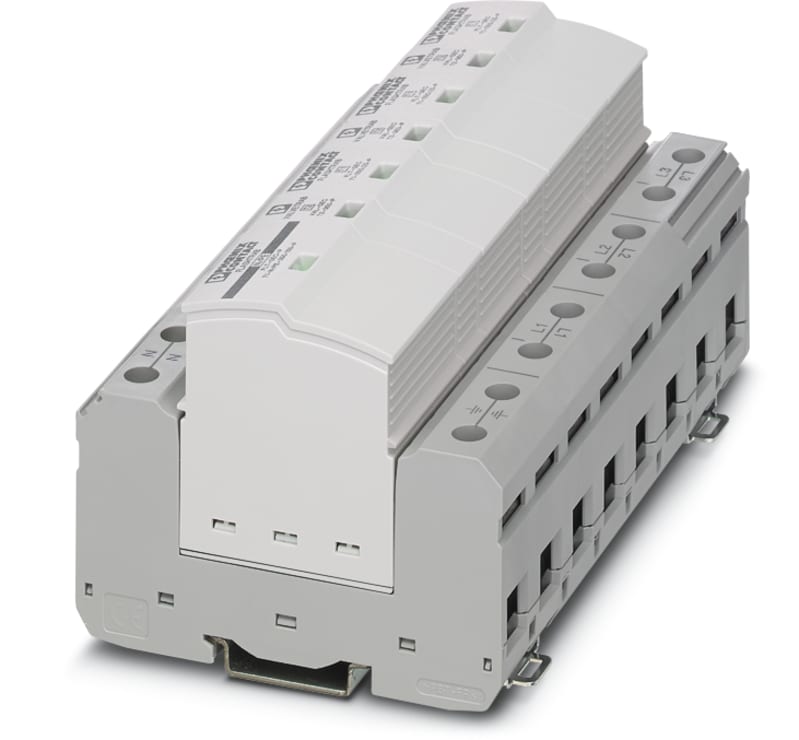

Phoenix Contact FLT-SEC-T1+T2-3S-350/25-FM FLT-SEC-T1+T2-3S-350/25-FM, Plug-in combined lightning current and surge arrester in accordance with Type 1+2 / Class I+II.
Technical Specifications
- Manufacturer part number (MPN)
- FLT-SEC-T1+T2-3S-350/25-FM
- EAN / GTIN
- 4046356950664
- Sales unit
- pcs
- Mounting method
- DIN rail (top hat rail) 35 mm
- Lightning impulse current (10/350 µs)
- 100 kA
- Number of poles
- 4
- Voltage protection level
- 2.2 kV
- Exhausting
- No
- Remote signalling
- Yes
- Follow current extinguishing capability
- 25 kA
- Max. continuous voltage AC
- 350 V
- Nominal voltage AC
- 240 V
- Test class
- Type 1
- Voltage protection level L-N
- 1.5 kV
- Signalling at the device
- Optical
- Degree of protection (IP)
- IP20
- Voltage protection level N-PE
- 1.5 kV
- Integrated backup fuse
- Yes
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 35 mm²
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Voltage protection level L-PE
- 2.2 kV
- Max. overcurrent protection device, series connection (fuse)
- 125 A
- Voltage switching spark gap technology
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4046356950664
- SAP 1000709810
- Code 8327336
Product Documentation
More from Phoenix Contact
Phoenix Contact

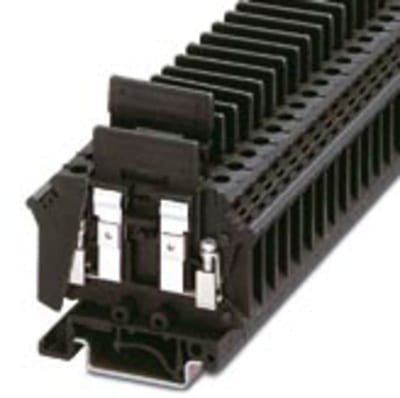

Fuse Terminal block (UK-SI)
Phoenix Contact

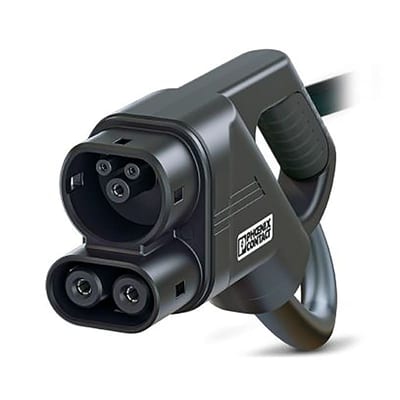

EV-T2M4CC-DC250A-5,0M70ESBK11 (1107339)
Phoenix Contact
Finvern FOR 24V AC/DC
PLT-SEC-T3-24-FM-UT
Phoenix Contact
D-SUB-bussplugg SUBCON 15/F-SH
Phoenix Contact

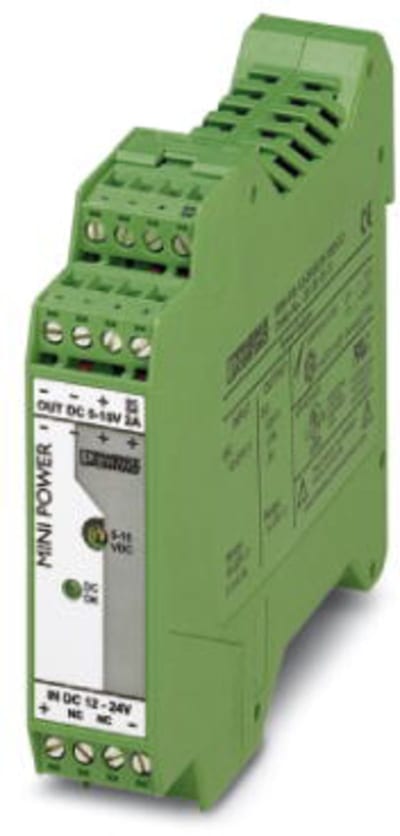

DC/DC Converter (MINI-PS- 12- 24DC/ 5-15DC/2)
Phoenix Contact

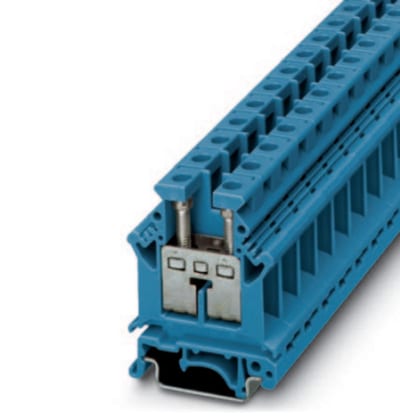

Feed-Through Terminal Block (UK 16 N BU)
Phoenix Contact

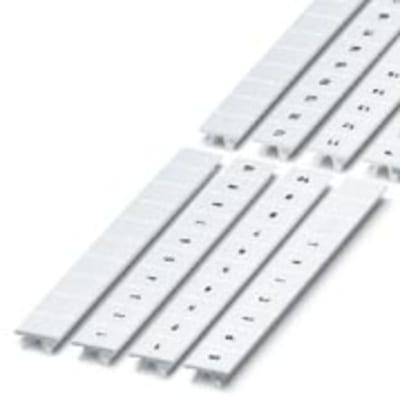

Marking Strip ZB10.L1-N .
ZB10,LGS:L1-N,PE
Phoenix Contact

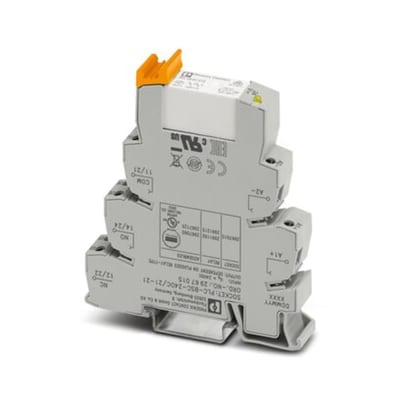

Relay Complete 2 Changeover 14mm (plc-RSC- 24DC/21-21AU)
PLC-RSC- 24DC/21-21AU
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy FLT-SEC-T1+T2-3S-350/25-FM?
- FLT-SEC-T1+T2-3S-350/25-FM can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is FLT-SEC-T1+T2-3S-350/25-FM.
- What is the HS code for FLT-SEC-T1+T2-3S-350/25-FM?
- The customs tariff (HS) code for FLT-SEC-T1+T2-3S-350/25-FM is 8536.30.
- Who manufactures FLT-SEC-T1+T2-3S-350/25-FM?
- FLT-SEC-T1+T2-3S-350/25-FM is a Phoenix Contact product in the Switchgear & Protection range.
- Is a datasheet available for FLT-SEC-T1+T2-3S-350/25-FM?
- Yes — the FLT-SEC-T1+T2-3S-350/25-FM datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for FLT-SEC-T1+T2-3S-350/25-FM?
- The minimum order quantity is 1.
- Is FLT-SEC-T1+T2-3S-350/25-FM available?
- Yes — FLT-SEC-T1+T2-3S-350/25-FM is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
