Phoenix Contact
Finvern FOR 24V AC/DC
Part numberPLT-SEC-T3-24-FM-UTEAN / GTIN4055626257419HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

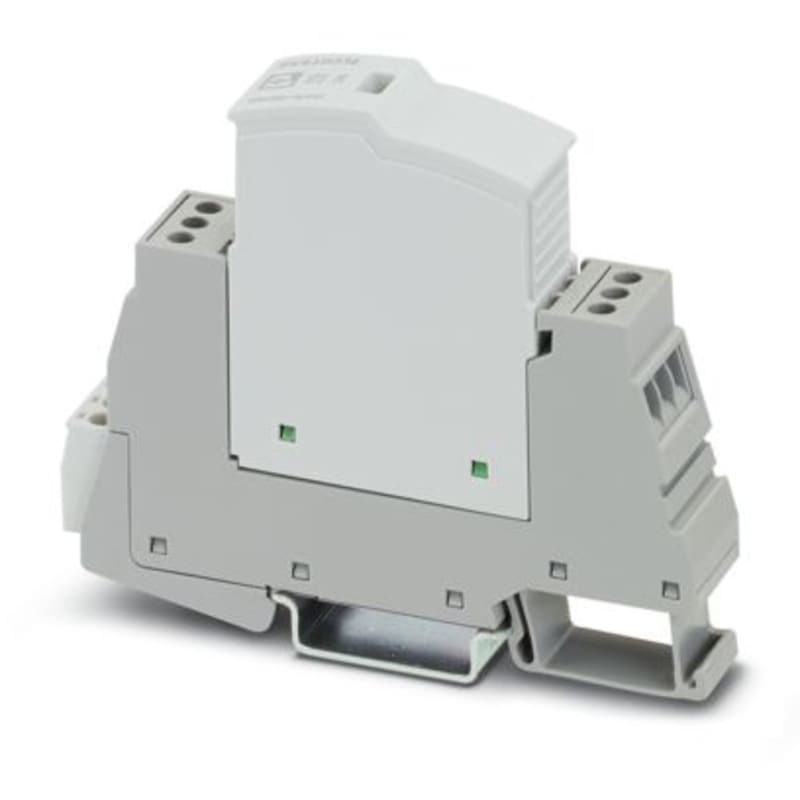

Phoenix Contact PLT-SEC-T3-24-FM-UT.
Technical Specifications
- Manufacturer part number (MPN)
- PLT-SEC-T3-24-FM-UT
- EAN / GTIN
- 4055626257419
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Voltage
- 24 V
- Nominal voltage AC
- 24 V
- Max. continuous voltage AC
- 34 V
- Max. continuous voltage DC
- 44 V
- Nominal load current
- 26 A
- Nominal discharge surge current (8/20) (L-N)
- 1 kA
- Total discharge current (8/20) (L+N-PE)
- 1 kA
- Voltage protection level
- 0.2 kV
- Voltage protection level L-N
- 0.2 kV
- Voltage protection level L-PE/N-PE
- 0.6 kV
- Number of poles
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 4 mm²
- Max. conductor cross section flexible (fine-strand)
- 2.5 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 3
- Yes
- With interference suppressor filter
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4055626257419
- SAP 1200854828
- Code 84066081
Product Documentation
Document preview: Finvern FOR 24V AC/DC (PLT-SEC-T3-24-FM-UT) — Specification sheet
More from Phoenix Contact
Phoenix Contact
D-SUB-bussplugg SUBCON 15/F-SH
Phoenix Contact
DC/DC Converter (MINI-PS- 12- 24DC/ 5-15DC/2)
Phoenix Contact
Feed-Through Terminal Block (UK 16 N BU)
Phoenix Contact
Marking Strip ZB10.L1-N .
ZB10,LGS:L1-N,PE
Phoenix Contact
Relay Complete 2 Changeover 14mm (plc-RSC- 24DC/21-21AU)
PLC-RSC- 24DC/21-21AU
Phoenix Contact

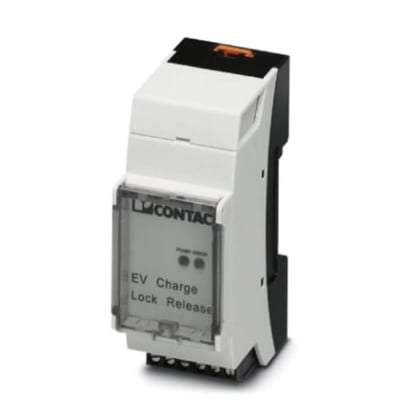

Voltage Monitoring Device
EM-EV-CLR-12V
Phoenix Contact

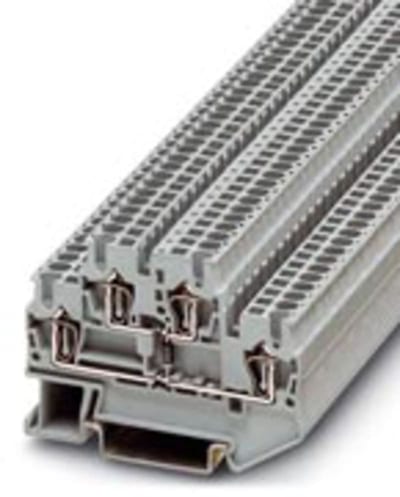

Component Terminal Block (STTB 2,5-DIO/O-U)
Phoenix Contact

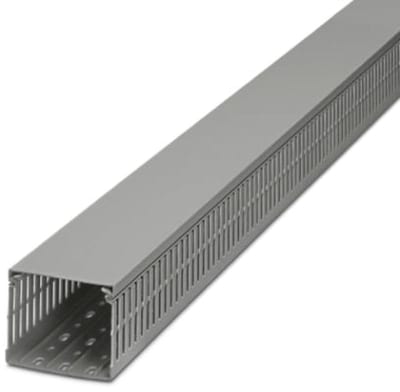

CABLE TRUNKING, GREY, B 30 MM, H 60 MM
