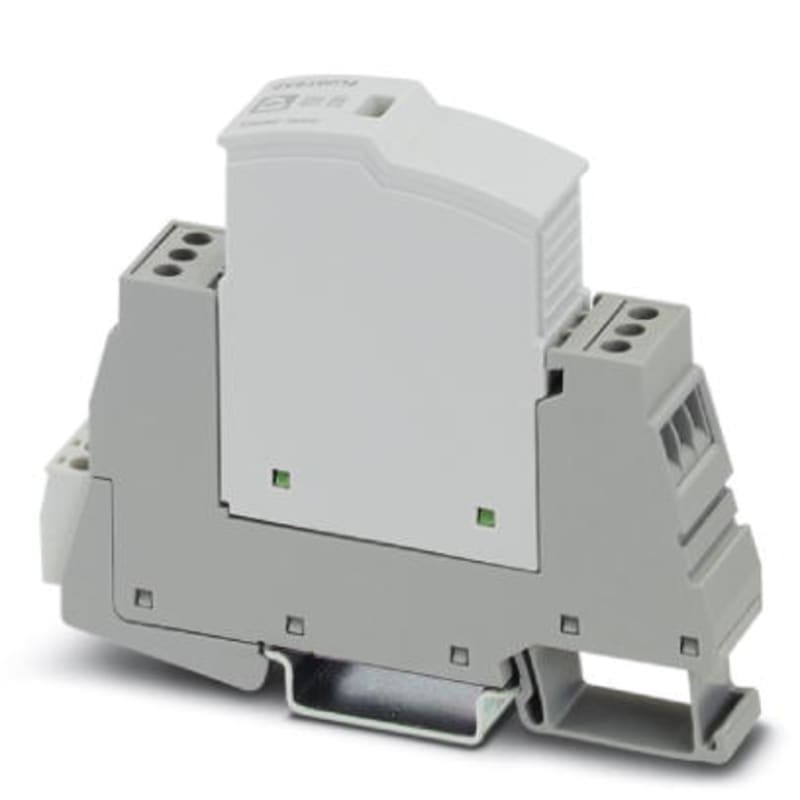

Surge-protectionsequipment type 3 (PLT-SEC-T3-230-FM-UT)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PLT-SEC-T3-230-FM-UT Overspenningsprotection type 2/3, for single-phase power supply network with integrated statusindikator and fjernmelding, 230 V AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- PLT-SEC-T3-230-FM-UT
- EAN / GTIN
- 4055626257457
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Product type
- Type 3 Surge Protection Device
- Manufacturer order number
- 2907919
- Nominal voltage AC
- 240 V
- Max. continuous voltage AC
- 264 V
- Max. continuous voltage DC
- 240 V
- Nominal load current
- 26 A
- Nominal discharge surge current (8/20) (L-N)
- 5 kA
- Total discharge current (8/20) (L+N-PE)
- 5 kA
- Voltage protection level
- 1.25 kV
- Voltage protection level L-N
- 1.25 kV
- Voltage protection level L-PE/N-PE
- 1.4 kV
- Number of poles
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 4 mm²
- Max. conductor cross section flexible (fine-strand)
- 2.5 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 3
- No
- With interference suppressor filter
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4055626257457
- SAP 1200441824
- Code 82471622
Product Documentation
