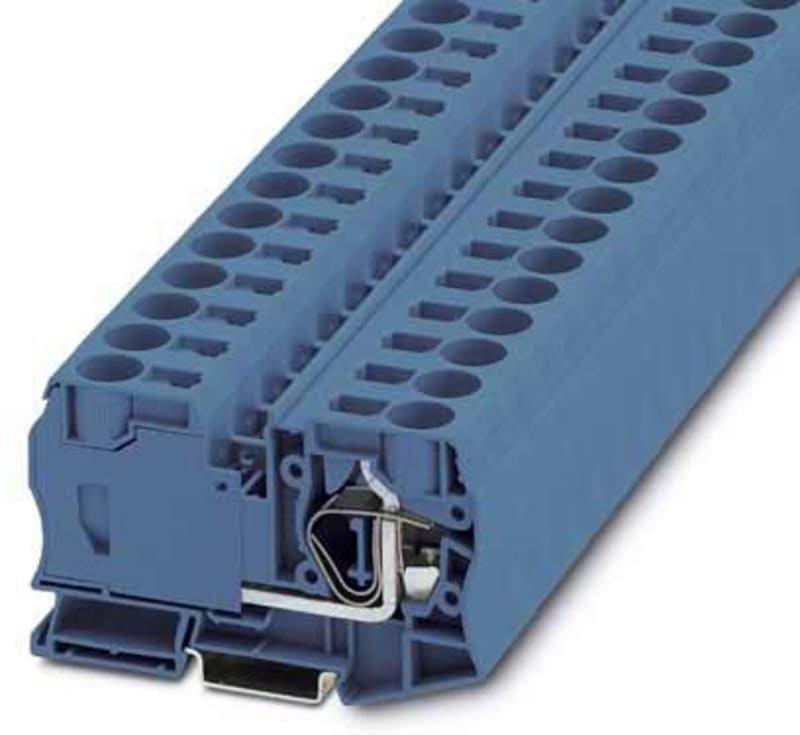

Phoenix Contact ST 35 BU Spring-Clamp Terminal Block 2.5-35 mm² Blue

Phoenix Contact ST 35 BU is a blue spring-clamp feed-through terminal block for aluminium and copper conductors from 2.5 to 35 mm², rated 125 A at 1000 V. It mounts on 35 mm DIN top-hat rail with two clamp positions across a single level, and is certified for Ex e explosion-protected applications. The housing measures 16 mm wide, 100 mm high and 59 mm deep with an operating range of -60 to 110 °C; supplied in packs of 10.

Manufacturer part number (MPN)

ST 35 BU

EAN / GTIN

4017918821050

Sales unit

pcs

Package quantity

10 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

2.5–35 mm²

Connectable conductor cross section multi-wired

2.5–35 mm²

Rated current In

125 A

Rated voltage

1000 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

16 mm

Width/grid dimension

16 mm

Height

100 mm

Depth

59 mm

Length

100 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

No

Colour

Blue

Internally connected stages

Yes

Country of origin

Poland

HS Code

8536.90
