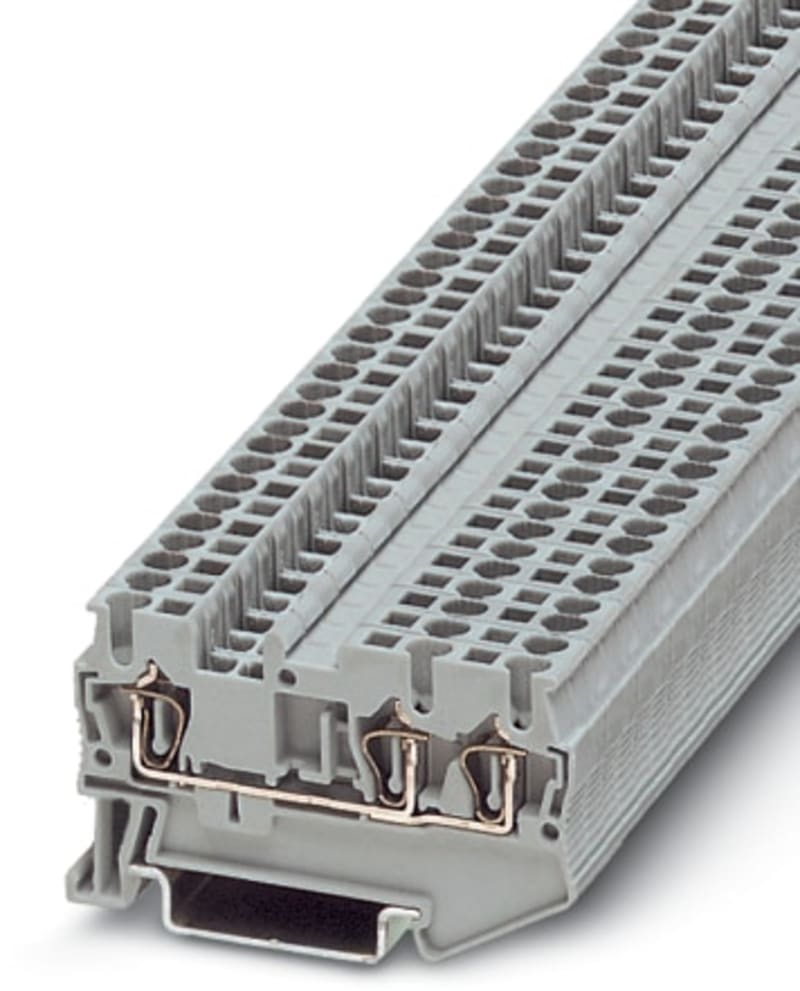

TERMINAL Spring 3 Connections 0,08-2,5
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact ST 2,5-TWIN Terminal Spring 3 Connections 0,08-2,5.
Technical Specifications
- Manufacturer part number (MPN)
- ST 2,5-TWIN
- EAN / GTIN
- 4017918186753
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.08–4 mm²
- Connectable conductor cross section multi-wired
- 0.08–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–110 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 60.5 mm
- Depth
- 36.5 mm
- Length
- 60.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918186753
- SAP 1000039724
- Code 8793150
Product Documentation
