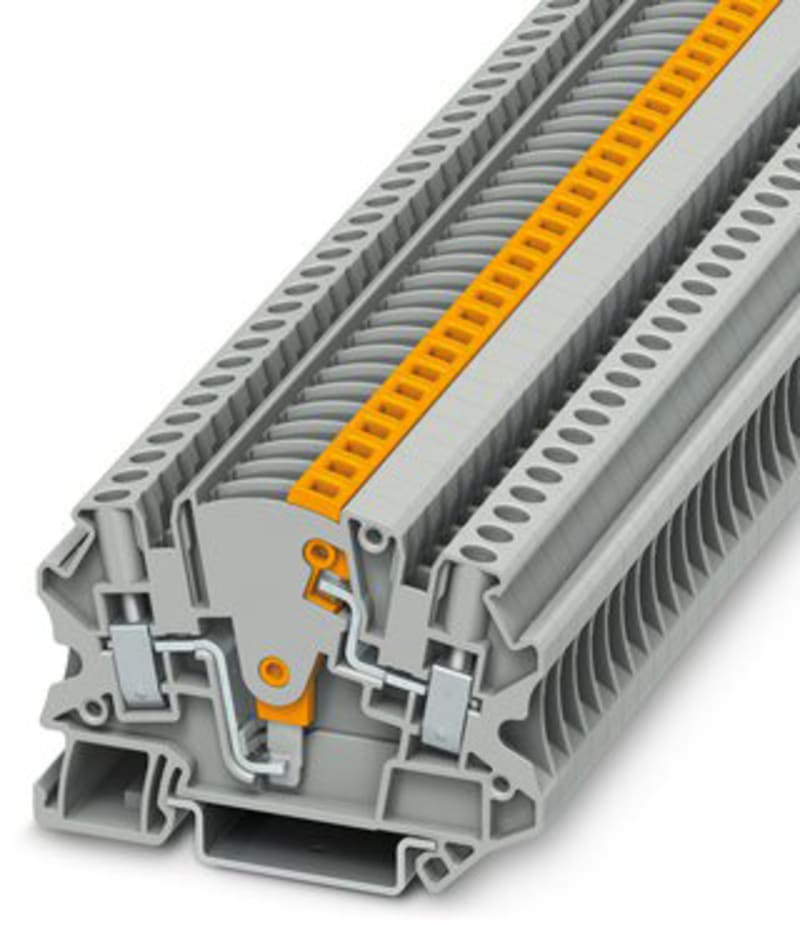

Phoenix Contact UTME 4 Screw Disconnect Test Terminal, 0.14-4 mm²

Phoenix Contact UTME 4 is a modular test disconnect terminal with screw clamp connections. It accepts solid conductors from 0.14 to 6 mm² and multi-wire conductors from 0.14 to 1.5 mm² and is rated 28 A at 500 V. The terminal mounts on 35 mm DIN rail with a grid dimension of 6.2 mm. Operating temperature range is minus 60 to 105 degrees Celsius.

Manufacturer part number (MPN)

UTME 4

EAN / GTIN

4046356511384

Sales unit

pcs

Package quantity

50 pcs

Connectable conductor cross section solid-core

0.14–6 mm²

Connectable conductor cross section multi-wired

0.14–1.5 mm²

Rated current In

28 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Internally connected stages

Yes

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–105 °C

Width

6.2 mm

Width/grid dimension

6.2 mm

Height

66 mm

Depth

49.5 mm

Closing plate required

Yes

Colour

Grey

With integrated test socket

No

Length

66 mm

Country of origin

Poland

HS Code

8536.90

• EAN 4046356511384
• SAP 1000657812
• Code 8655973
