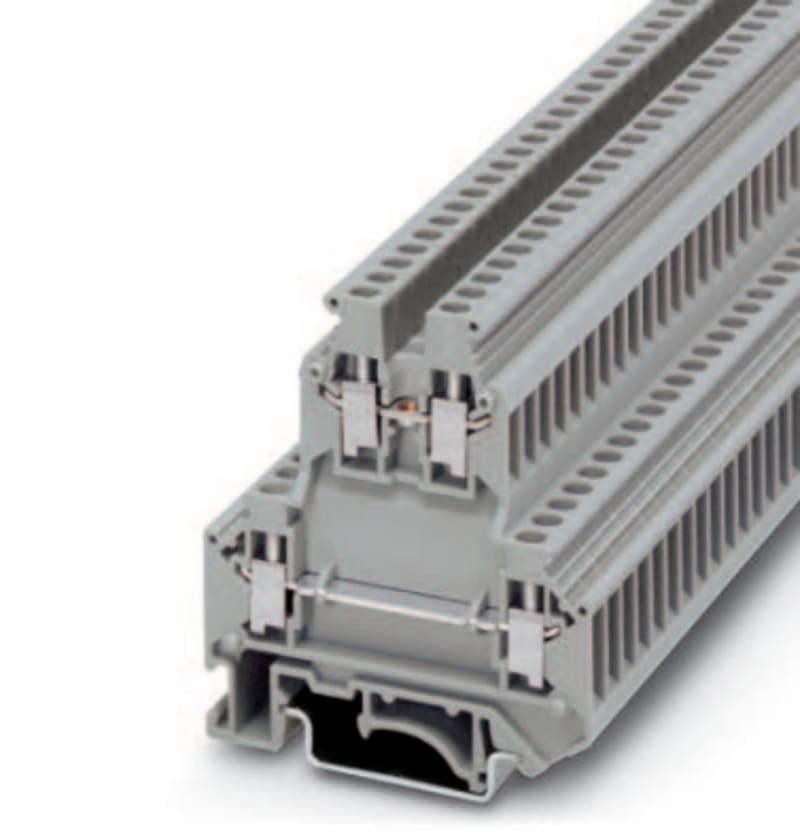

Phoenix Contact UKK 3 Double-Level Screw Terminal Block, 0.2–2.5 mm²

The UKK 3 is a double-level screw-connection terminal block from Phoenix Contact, offering two independent circuits in a single 5.2 mm-wide housing on 35 mm DIN rail. Rated at 24 A and 500 V for conductor cross-sections from 0.2 to 4 mm² solid, it suits dense control-cabinet wiring where potential distribution is required. Operating temperature range -60 to +105 °C.

Manufacturer part number (MPN)

UKK 3

EAN / GTIN

4017918067755

Sales unit

pcs

Package quantity

50 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.2–4 mm²

Connectable conductor cross section multi-wired

0.2–1 mm²

Rated current In

24 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

2

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–105 °C

Width

5.2 mm

Width/grid dimension

5.2 mm

Height

56 mm

Depth

62 mm

Length

56 mm

Explosion-tested version 'Ex e'

No

Closing plate required

Yes

Colour

Grey

Internally connected stages

No

Country of origin

Poland

HS Code

8536.90

• EAN 4017918067755
• SAP 1000017535
• Code 8137323
