Phoenix Contact

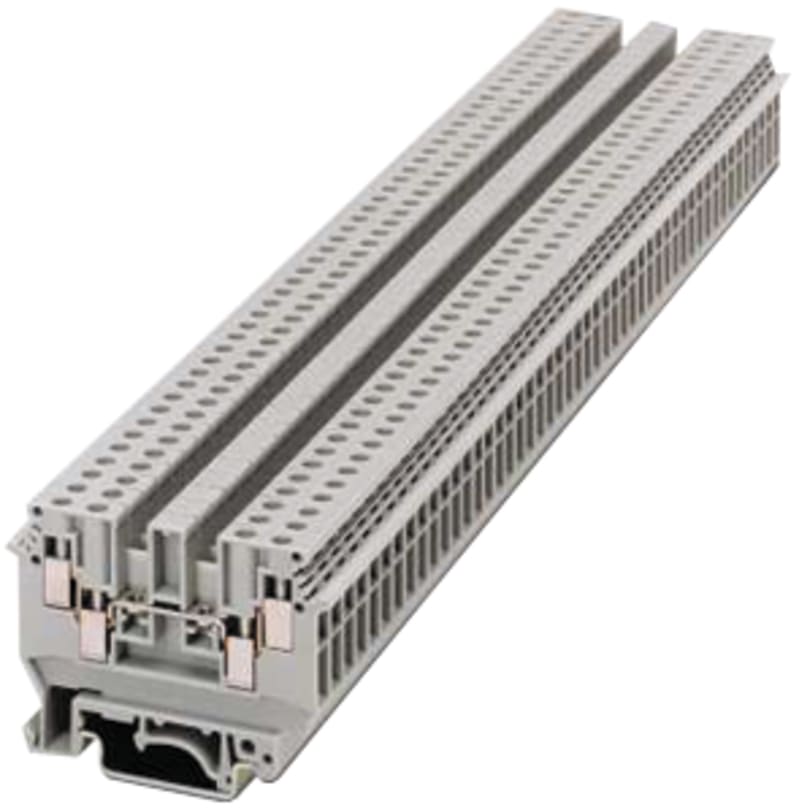

Feed-Through Terminal Block (UDK 3)
Part numberUDK 3EAN / GTIN4017918068578HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UDK 3 Terminal block, screw 3 Connection 0,2-2,5.
Technical Specifications
- Manufacturer part number (MPN)
- UDK 3
- EAN / GTIN
- 4017918068578
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Feed-Through Terminal Block
- Manufacturer order number
- 2775375
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.2–4 mm²
- Connectable conductor cross section multi-wired
- 0.2–1 mm²
- Rated current In
- 24 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 2
- Number of clamp positions per level
- 4
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–110 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 63.5 mm
- Depth
- 47 mm
- Length
- 63.5 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918068578
- SAP 1000016081
- Code 8132852
Product Documentation
Document preview: Feed-Through Terminal Block (UDK 3) — Specification sheet
