Phoenix Contact

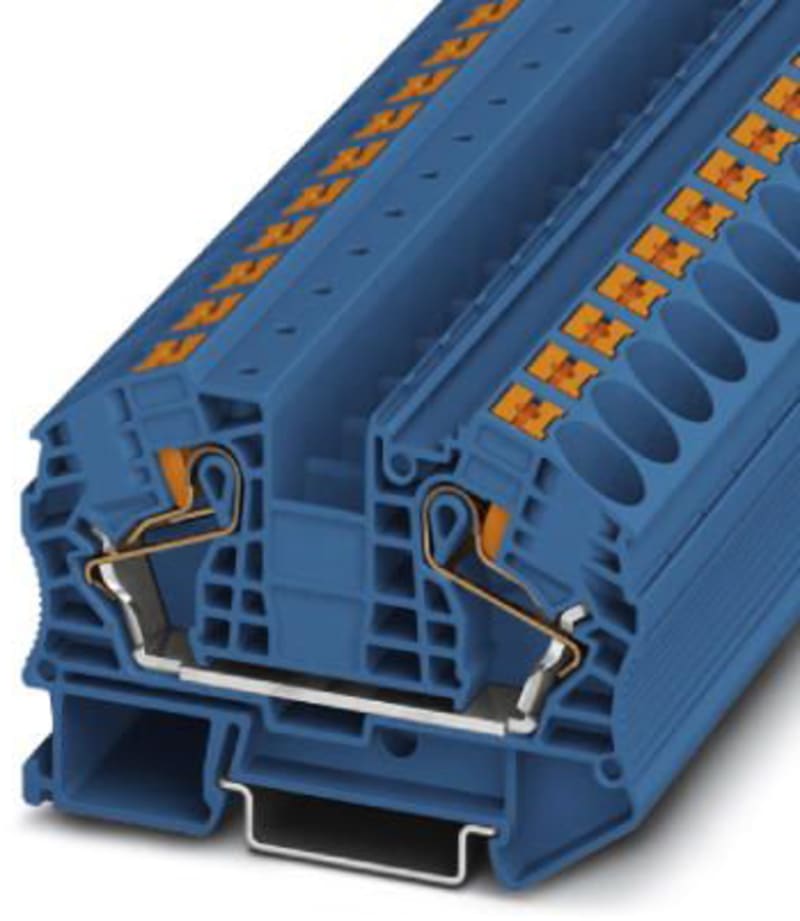

Feed-Through Terminal Block (PT 16 N BU)
Part numberPT 16 N BUEAN / GTIN4046356494830HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PT 16 N BU Feed-through terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- PT 16 N BU
- EAN / GTIN
- 4046356494830
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Feed-Through Terminal Block
- Manufacturer order number
- 3212142
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.5–25 mm²
- Connectable conductor cross section multi-wired
- 0.5–16 mm²
- Rated current In
- 76 A
- Rated voltage
- 1000 V
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–110 °C
- Width
- 12.2 mm
- Width/grid dimension
- 12.2 mm
- Height
- 75.4 mm
- Depth
- 52.6 mm
- Length
- 75.4 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- Yes
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356494830
- SAP 1000656380
- Code 8224818
Product Documentation
Document preview: Feed-Through Terminal Block (PT 16 N BU) — Specification sheet
More from Phoenix Contact
Phoenix Contact

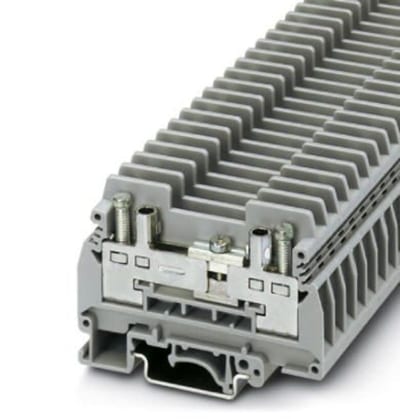

Test-Disconnect Terminal Block (URTK/S)
Phoenix Contact

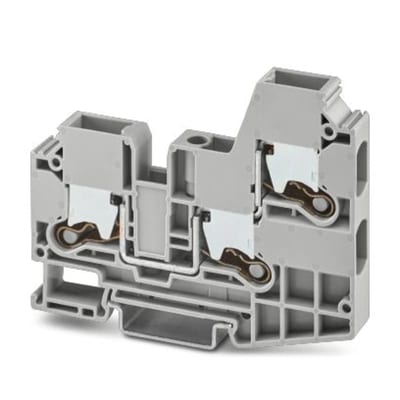

Feed-Through Terminal (xtv 10-Twin)
XTV 10-TWIN
Phoenix Contact

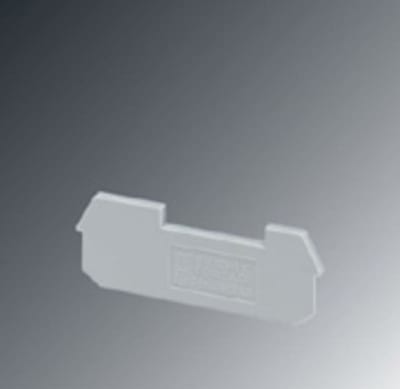

Spacer Plate (DP-MBKKB 2,5)
Phoenix Contact

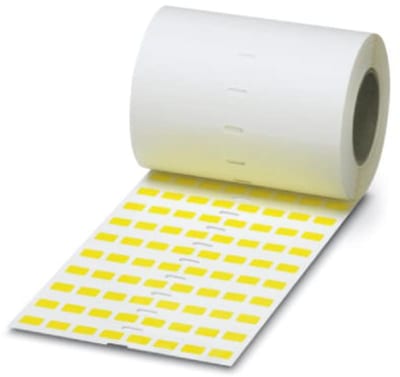

Label 15X9 Yellow (eml (15X9)r Ye)
EML (15X9)R YE
Phoenix Contact

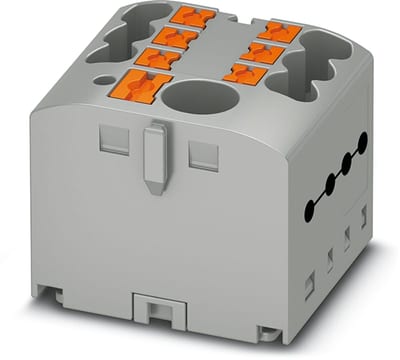

Distribution Block (PTFIX 6/6X2,5 GY)
Phoenix Contact
REKL Innst 4/ 0,14-1,5 19 TILK
1205512
Phoenix Contact

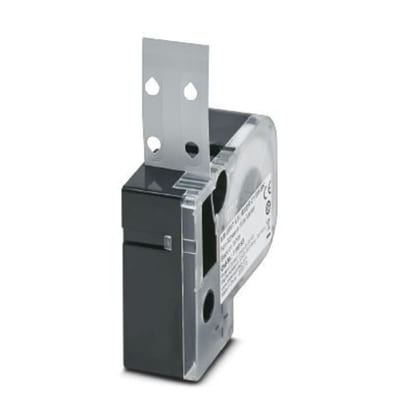

CABLE MARKERS, ROLL, WHITE, 320 PCS (MM-WMT5,5(15X8)RC1WH/Bk)
MM-WMT5,5(15X8)RC1WH/BK
Phoenix Contact

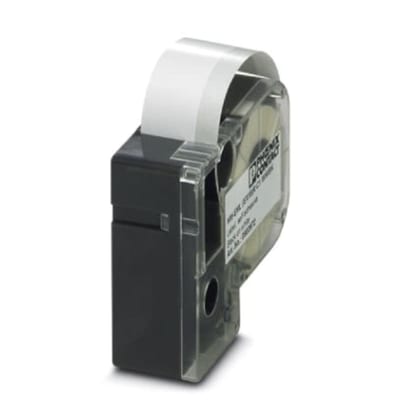

LABEL, ROLL, White EX18
