Phoenix Contact

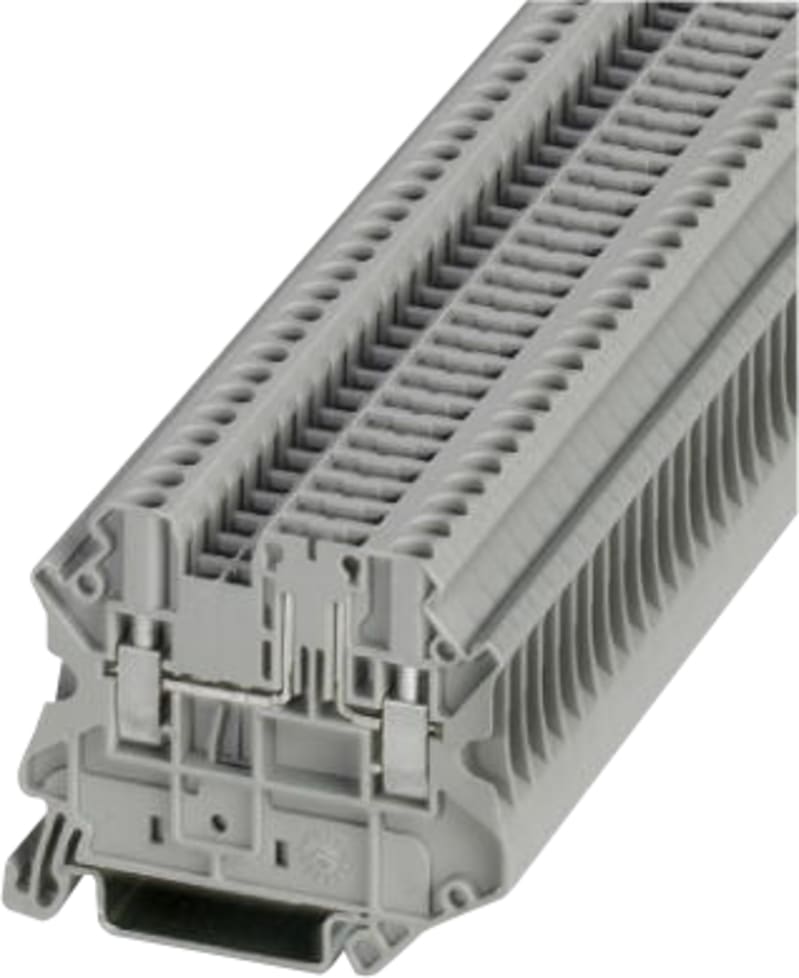

Disconnect Terminal Block (UT 2,5-TG-P/P)
Part numberUT 2,5-TG-P/PEAN / GTIN4017918978488HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UT 2,5-TG-P/P TERMINAL BLOCK, SCREW ISOLATION CONNECTIONS 0,14-2,5.
Technical Specifications
- Manufacturer part number (MPN)
- UT 2,5-TG-P/P
- EAN / GTIN
- 4017918978488
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Disconnect Terminal Block
- Manufacturer order number
- 3046391
- Connectable conductor cross section solid-core
- 0.14–4 mm²
- Connectable conductor cross section multi-wired
- 0.14–1.5 mm²
- Rated current In
- 20 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 5.15 mm
- Width/grid dimension
- 5.2 mm
- Height
- 57.8 mm
- Depth
- 46.85 mm
- Closing plate required
- Yes
- Colour
- Grey
- With integrated test socket
- Yes
- Length
- 57.8 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918978488
- SAP 1000044653
- Code 8790241
Product Documentation
Document preview: Disconnect Terminal Block (UT 2,5-TG-P/P) — Specification sheet
More from Phoenix Contact
Phoenix Contact
M12 Cable - 4PIN,1.0M,PUR
SAC-4P-M12MS/ 1,0-PUR/M12FS
Phoenix Contact

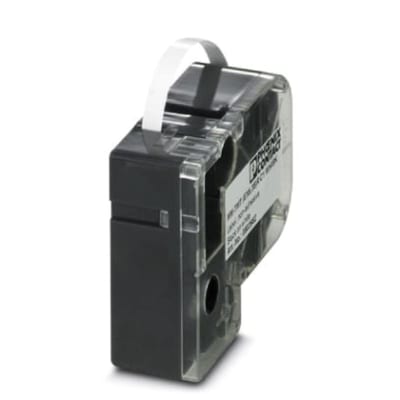

LABEL, ROLL, White EX6,3 (mm-TMT (EX6,35)R C1 WH/Bk)
MM-TMT (EX6,35)R C1 WH/BK
Phoenix Contact

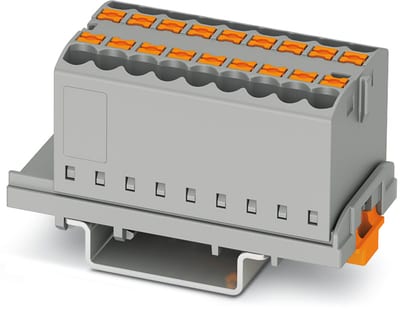

Distribution Block (PTFIX 18X2,5-NS35 BU)
Phoenix Contact

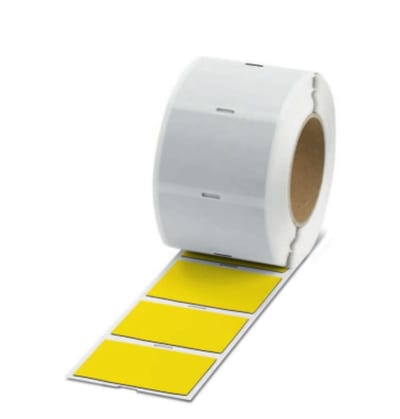

Label 85,6X54 Yellow
1803962
Phoenix Contact

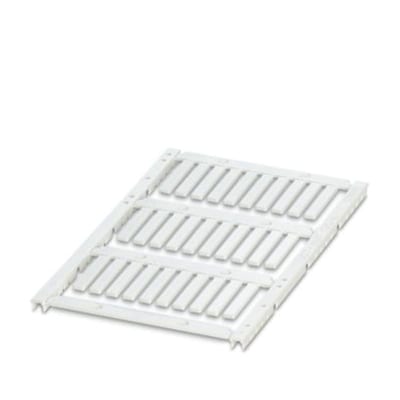

Conductor Marker (UCT-WMT (23X4))
Phoenix Contact

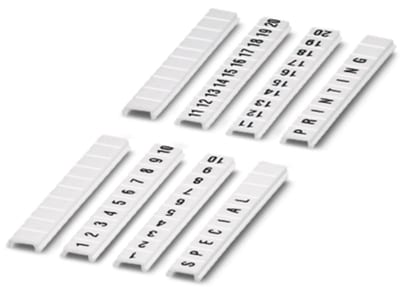

Marking Strip ZBF 3,5,LGS: 91-100
Phoenix Contact

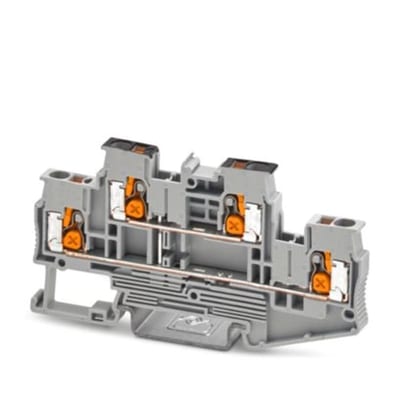

Double-Level Terminal Block (XTTB 2,5-Pv)
XTTB 2,5-PV
Phoenix Contact

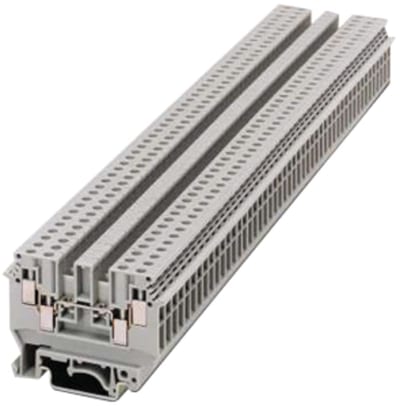

Feed-Through Terminal Block (UDK 3)
