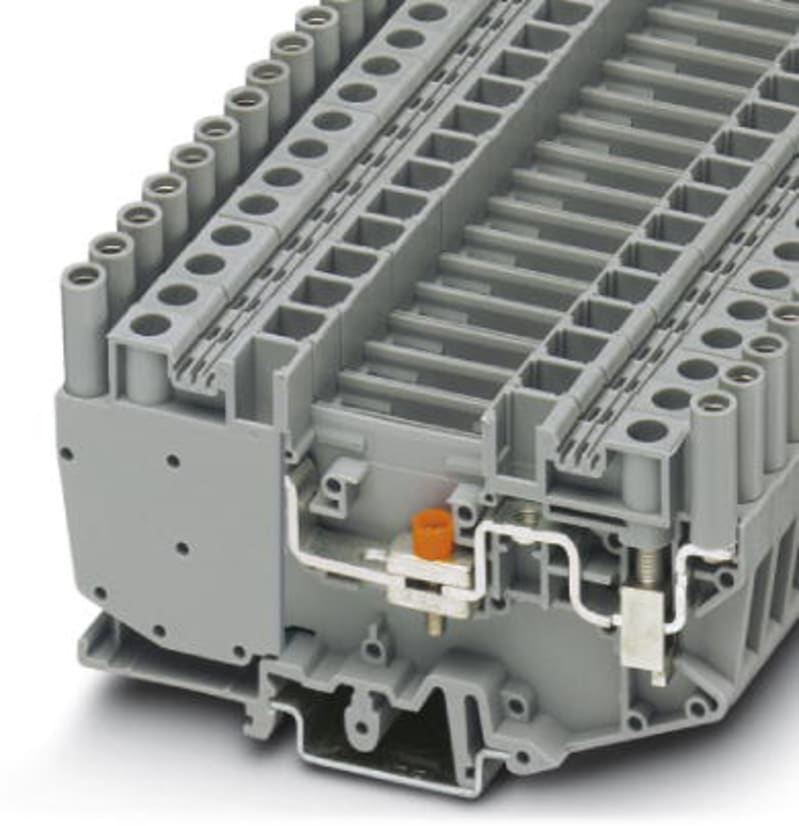

Phoenix Contact URTK/SP Instrument-Transformer Test Disconnect Terminal
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact URTK/SP instrument-transformer test disconnect terminal for DIN rail 35 mm. Rated 41 A at 500 V with screw connections on both sides, single level with two clamp positions and pluggable disconnection for test operations. Housing width 8.2 mm, height 99.5 mm, grey.
Technical Specifications
- Manufacturer part number (MPN)
- URTK/SP
- EAN / GTIN
- 4017918001315
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Connectable conductor cross section solid-core
- 0.5–10 mm²
- Connectable conductor cross section multi-wired
- 0.5–2.5 mm²
- Rated current In
- 41 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Internally connected stages
- Yes
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -5–70 °C
- Width
- 8.2 mm
- Width/grid dimension
- 8.2 mm
- Height
- 99.5 mm
- Depth
- 59 mm
- Closing plate required
- No
- Colour
- Grey
- Type of slitting
- Pluggable
- Type of cross disconnection
- Pluggable
- With integrated test socket
- No
- Length
- 99.5 mm
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918001315
- SAP 1000698386
- Code 8137119
Product Documentation
More from Phoenix Contact
Phoenix Contact
Reserve Relay 6,2mm (rel-MR- 60DC/21AU)
REL-MR- 60DC/21AU
Phoenix Contact
RELAY WITH 2 Changeover contacts (EMG 17-REL/KSR-W230/21-21-LC)
Phoenix Contact
Ground Modular Terminal Block (PT 1,5/S-PE/L/L)
Phoenix Contact
Housing (HC-STA-B10-HLFS-1STM25-EL-AL)
Phoenix Contact

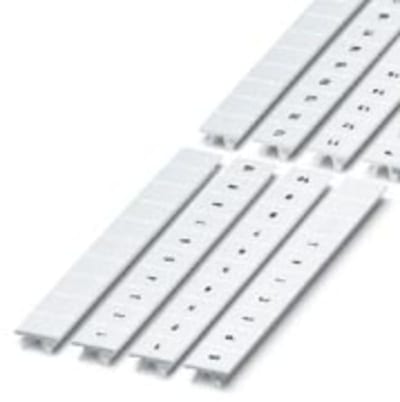

Marking Strip ZB10 LGS 41-50
ZB10,LGS:FORTL.ZAHLEN 41-50
Phoenix Contact

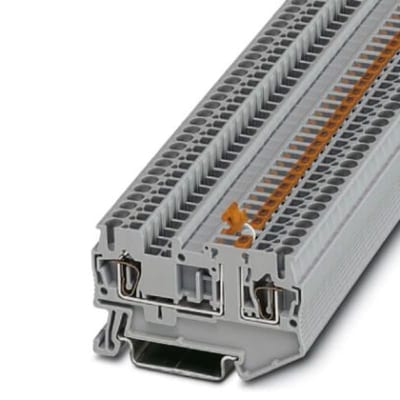

Knife-Disconnect Terminal Block (ST 2,5-Mt)
ST 2,5-MT
Phoenix Contact

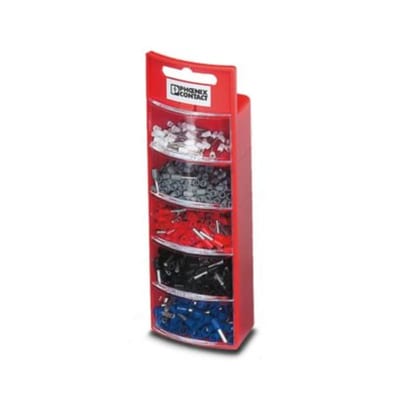

Range Box (AI SORTI BOX RD)
Phoenix Contact

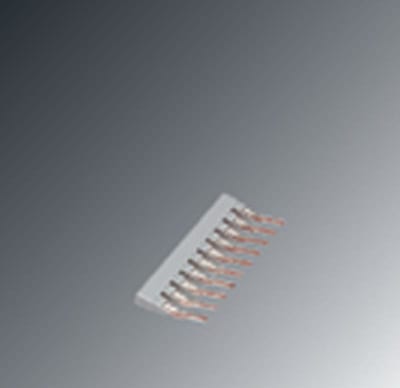

Innplugbro 6 mm² KL 10-Pole
